ALLNET 4duino IoT WLAN relay flush-mounted ESP8266-UP relay
|
-14% 9,27 EUR 10,79 EUR |
|
|
( 11,03 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1221576 |
|---|---|
| Mfg Part No: | ALL-ESP8266-IoT-Relais |
| UPC/EAN: | 4038816148810 |
| Weight: | 0.3 kg |
Product information for ALLNET ALL-ESP8266-IoT-Relais:

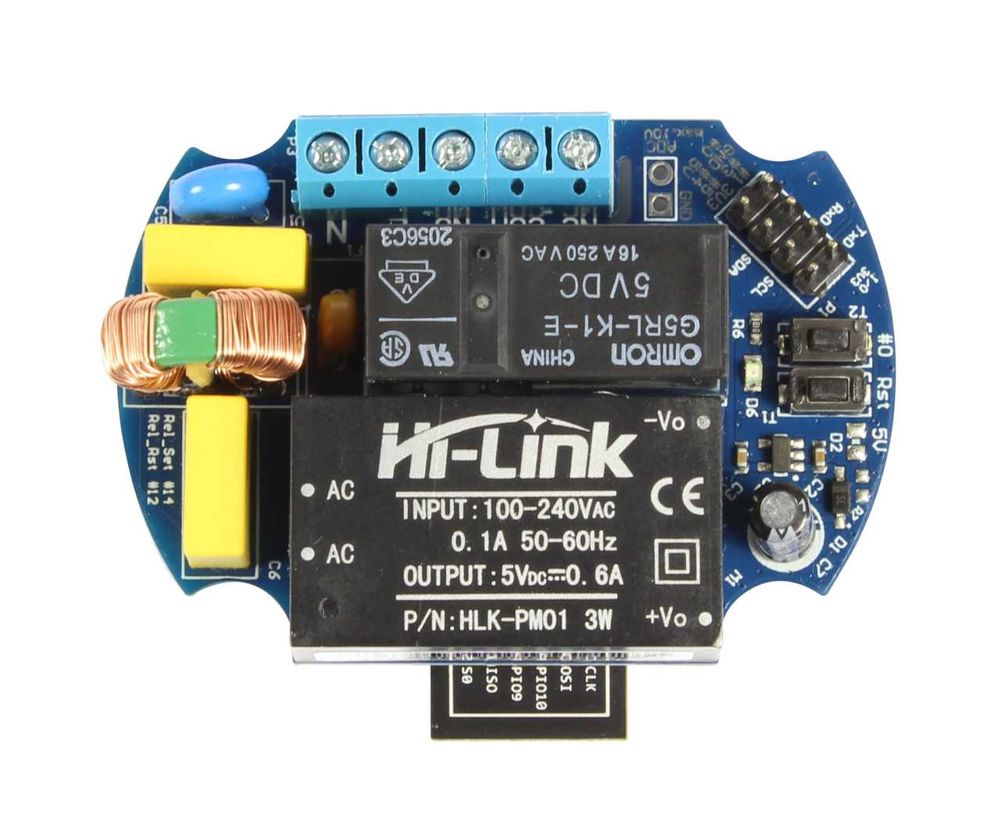

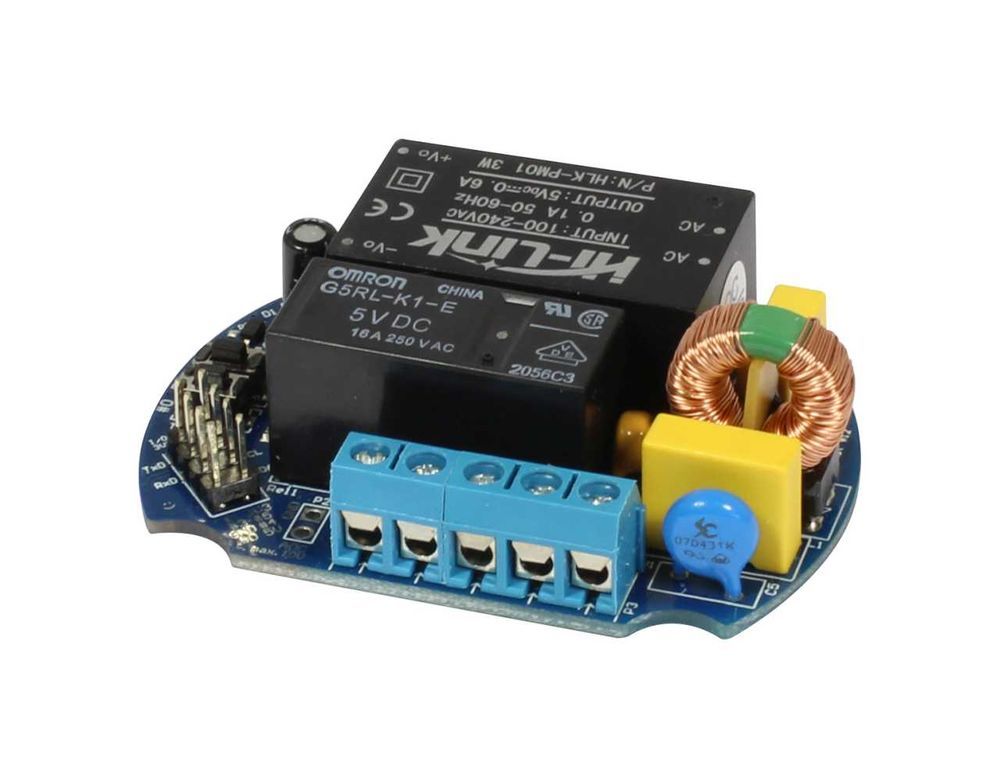

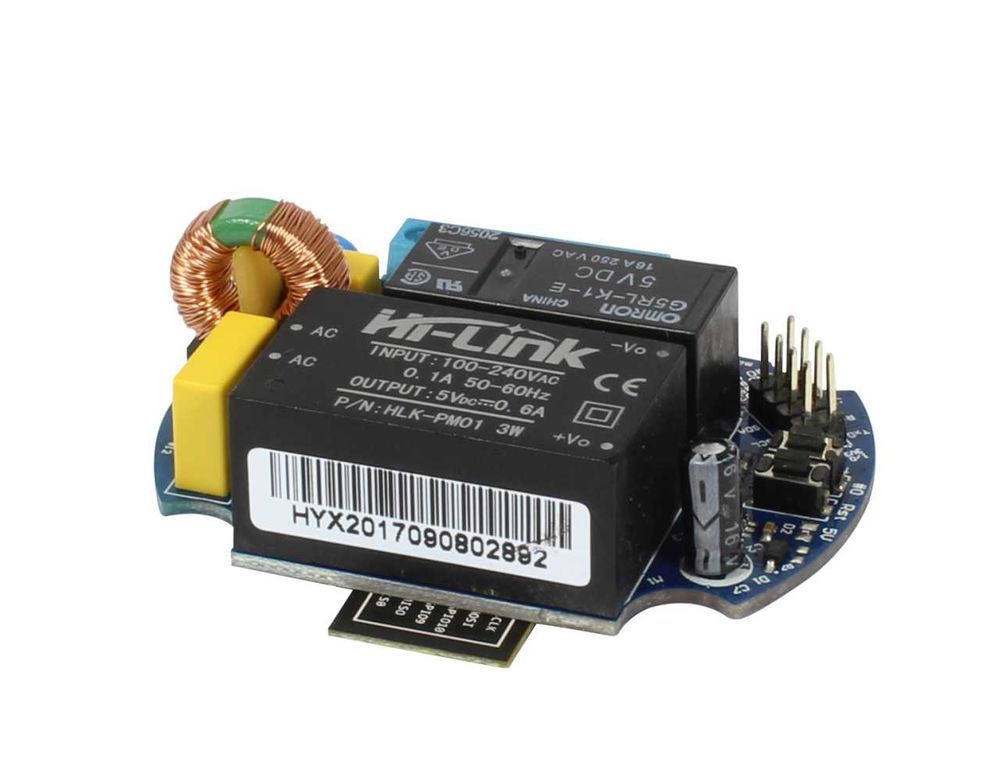

The relay is based on the ESP8266 and is used to switch electrical loads/consumers (250 VAC) with up to 16A (NO) via a bistable relay from Omron (G5RL-K1-E). This can be controlled via HTTP links, which is useful for Amazon Alexa, for example.
Relay detail: Omron (G5RL-K1-E) 250 VAC at 16A (standard open) / 5A (standard closed) bistable (ie only consumes current when the state changes)
Functions of the web interface:
1. Action random: Switches the relay 50% probability on or off
2. Intervals: The following actions are possible in a specified time window:
2.1 Off-On interval, both times in minutes with a specified state Off or On at the end of the time
2.2 On-Off interval, both times in minutes with a fixed state off or on at the end of the time
2.3 Invert-invert interval, both times in minutes with an unchanged state at the end of the time
3. Intervals and actions can be mixed as desired, a total of 50 pieces (approx. 200 is the technically feasible one limit)
4. While an interval is running, no further interval or action will be carried out
5. Active interval is displayed in the web interface and you can cancel the interval manually!
Attention: an external programmer with 3.3V is required for flashing with your own software!
Housings for printing yourself can be found here:

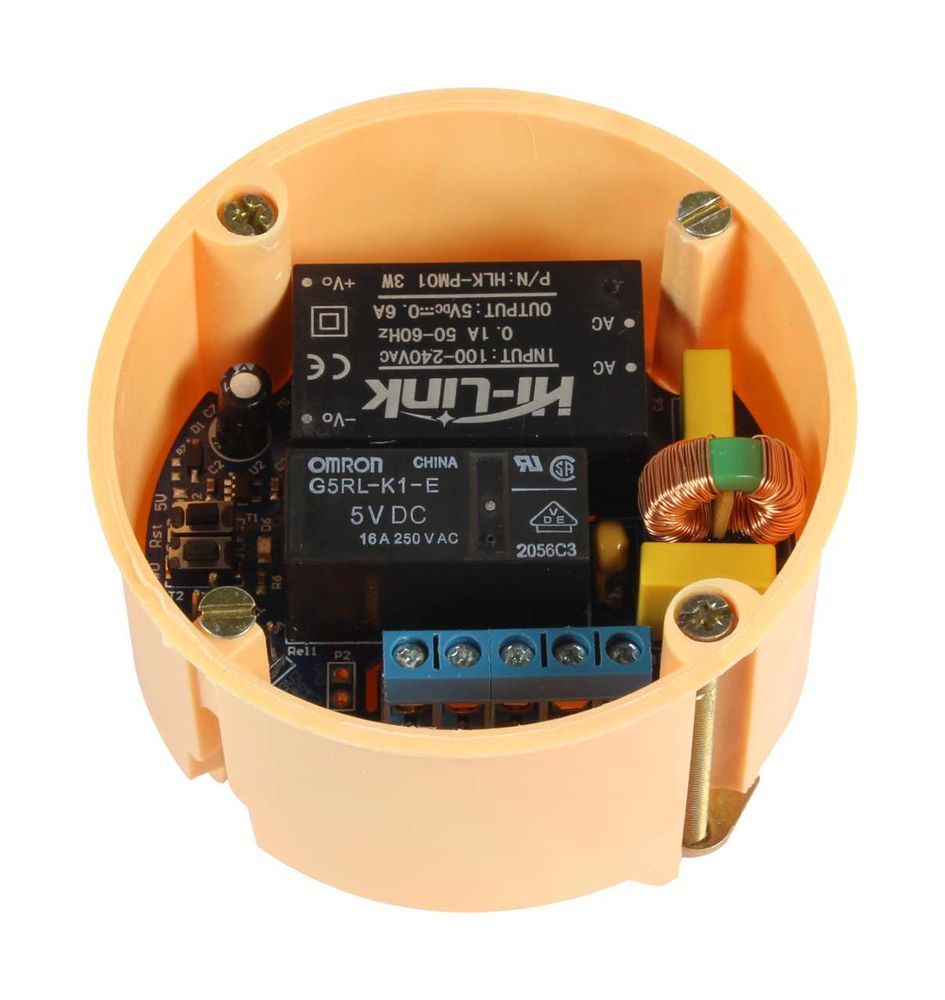

ATTENTION: The dimensions of the module are designed for a 68 mm hollow wall box. See photo 4.
