ALLNET Brick"R"knowledge Logic Set

ALLNET Brick'R'knowledge Logic Set
The Logic Set is ideal for a quick introduction to digital circuit technology. Using the accompanying booklet with didactically based circuit examples, learners can quickly learn the most important digital circuits such as adders, shift registers and counters. But teachers also receive a practice-oriented basis for daily teaching with the comprehensively equipped set. Putting the bricks together and experimenting is fun and encourages you to create your own circuit variants. The scope of delivery of the logic set ranges from simple logic bricks (AND, OR, NAND, NOR, XOR, alternatively a debounced button for individual pulses) to a BCD counter brick with an integrated 7-segment display. A comprehensive selection of LED, button and cable bricks complete the set.

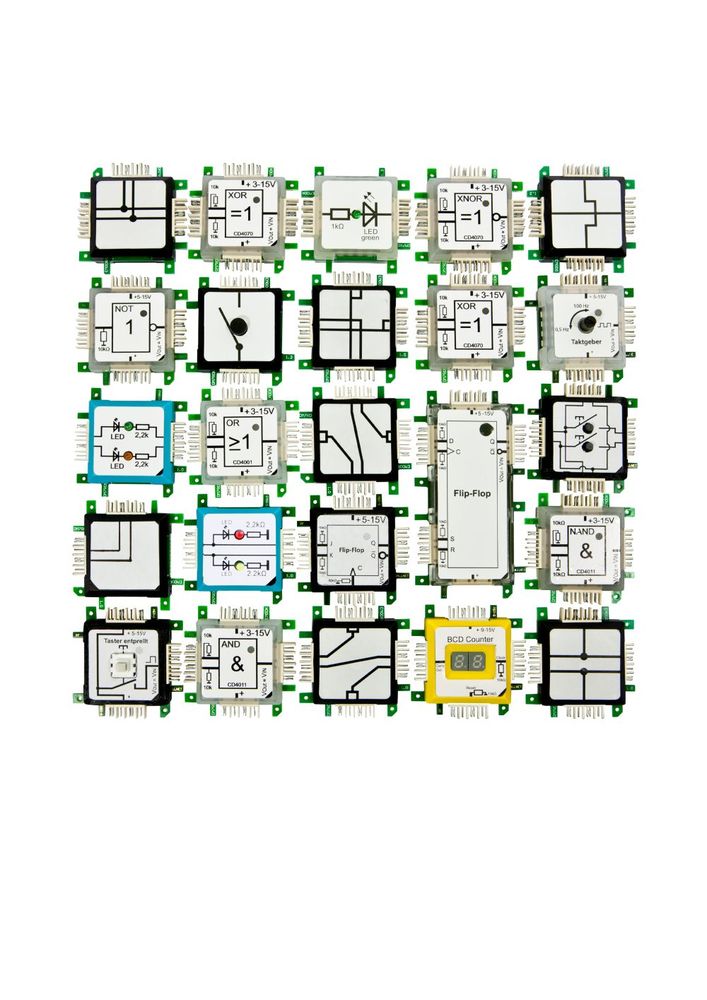

Contents: 1x power supply adapter 9V
2x and gate
1x
inverter
1x nand gate
2x nor gate
2x xor gate
1x xnor
gate 4x jk-flipflop 1x d
-
flipflop set & reset
2x bcd counter
1x
clock depressed
3x button
1x Double button
1x dual LED yellow & red
1x dual LED green & orange
1x LED red
1x LED yellow
1x LED green 1x LED blue
4x
ground
10x straight
8x corner
8x T-junction
3x intersection connected
7x intersection not connected
1x corner double
1x straight double
2x Double T left/right
1x Double crossed
1x Crossing double not connected
4x T-crossing double left
4x Switch double left/right
5x Double special
Take a look at the Logic Set
manual and convince yourself of
the detailed explanations on the
subject of logic. Click
Take a look at the Logic Set
exercise book and use this
exercise book to sell to schools.
Click
What is Brick'R'knowledge?
Brick'R'knowledge is an innovative plug-in system with which electronics knowledge can be transmitted very easily, quickly and playfully.
Who is Brick'R'knowledge for?
Children and young people: Getting started with electronics in a playful way – with the help of our manuals and videos – is just as much fun as playing with building blocks!
Pupils and students: What use is all the school theory if you can't apply the knowledge in practice? With our exciting plug-in system you can finally try out what is otherwise only on the board!
Teachers and professors: Bring your lessons to life! With our bricks you can increase your students' creativity and motivate them to try out and experiment on their own!
Developers and Engineers: Rapid prototyping and documentation saves you time and forever changes the way you think about rapid testing - no solder required!
Advantages of Brick'R'knowledge
Uncomplicated replacement of components or changes to the circuit by plugging the Brick blocks together.
Easily document and share the correct circuit diagram by photographing the circuit.
Robust and stable plug-in system thanks to plastic housings that can be opened and four-pin hermaphrodite connectors, which also allow 3D constructions.
Compact circuits through ground feedback.
Didactically prepared manuals and new projects and ideas every day from a growing community.
New business areas with Brick'R'knowledge
Kindergartens, primary schools, secondary schools, universities, vocational schools
Training departments in ICT companies
Electronics Experiments for the private environment in the family
Amateur radio operators
Makers, those interested in electronics
Summer camps, educational days, workshops
