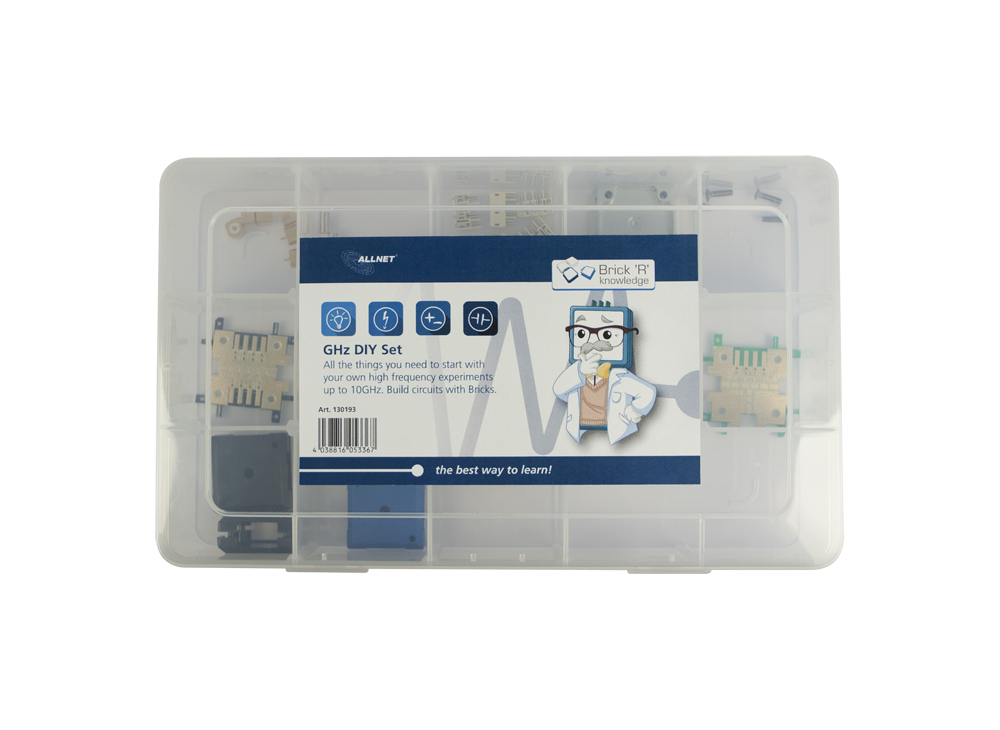

ALLNET Brick'R'knowledge GHz DIY Set

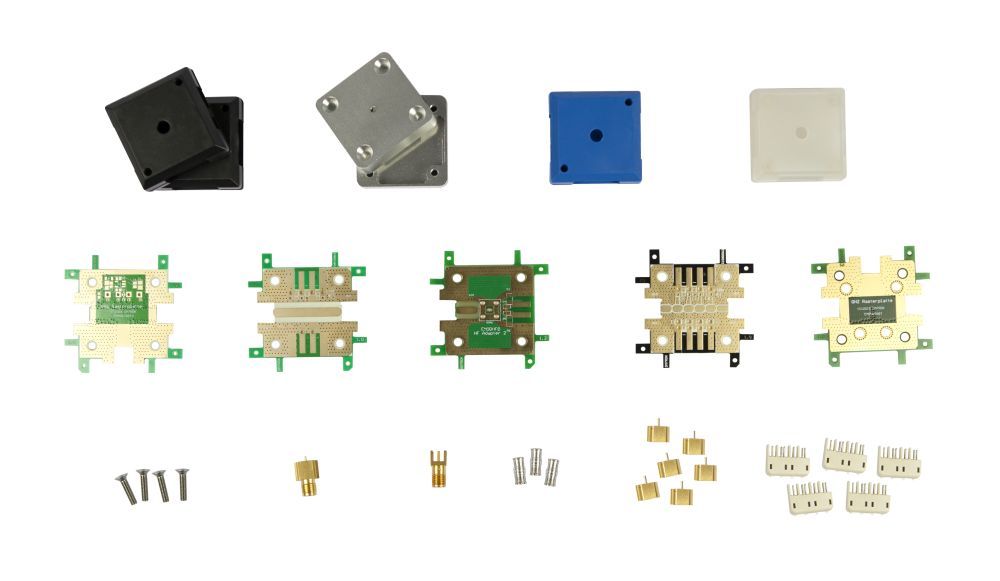

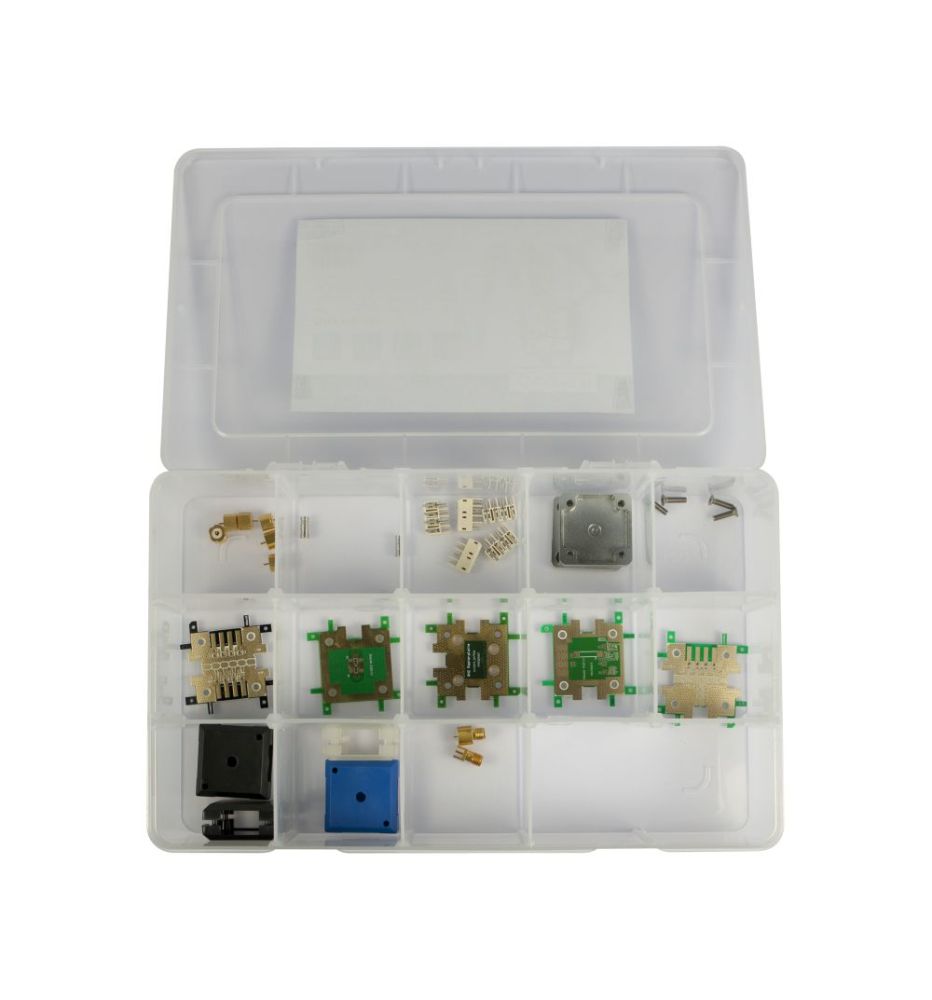

The GHz DIY set contains everything you need for ambitiously building circuits in the GHz range. The set includes five boards, three of which are high-quality Roger Ro4350. Depending on the plugs and sockets, the RO4350 boards are suitable for building circuits larger than 12GHz. The FR4 boards are suitable for up to 2.4GHz. The various boards can be used to build splitters, combiners, filters, mixers, adapters, attenuators, bias feeds or as passive connecting elements. The tracks are designed according to Microstrip for 50Ohm. All boards have the right grid to be combined with finished brick system components. Most boards have the option of installing a voltage regulator on the bottom. The set includes high-quality SMA and P-SMP sockets from Rosenberger. Various housings made of plastic and metal round off the contents of the kit.
Partial list: 1x emod grast 1x
emodhfb
1x emodgro
1x
emodgtrst3
1x SMA socket lying
3x
P-SMP connector
6x p-smp
5x Hermaphrodite plug-in connector
1x housing black
1x
housing transparent
1x
screw
1x What is Brick'R'knowledge? Brick'R'knowledge is an innovative plug-in system with which electronics knowledge can be transmitted very easily, quickly and playfully. Who is Brick'R'knowledge for? Children and young people: Getting started with electronics in a playful way – with the help of our manuals and videos – is just as much fun as playing with building blocks! Pupils and students: What use is all the school theory if you can't apply the knowledge in practice? With our exciting plug-in system you can finally try out what is otherwise only on the board! Teachers and professors: Bring your lessons to life! With our bricks you can increase your students' creativity and motivate them to try out and experiment on their own! Developers and Engineers: Rapid prototyping and documentation saves you time and forever changes the way you think about rapid testing - no solder required! Advantages of Brick'R'knowledge Uncomplicated replacement of components or changes to the circuit by plugging the Brick blocks together.
Easily document and share the correct circuit diagram by photographing the circuit.
Robust and stable plug-in system thanks to plastic housings that can be opened and four-pin hermaphrodite connectors, which also allow 3D constructions.
Compact circuits through ground feedback.
Didactically prepared manuals and new projects and ideas every day from a growing community.
New business areas with Brick'R'knowledge
Kindergartens, primary schools, secondary schools, universities, vocational schools
Training departments in ICT companies
Electronics Experiments for the private environment in the family
Amateur radio operators
Makers, those interested in electronics
Summer camps, educational days, workshops
