ALLNET Brick'R'knowledge Advanced Set

ALLNET Brick'R'knowledge Advanced Set

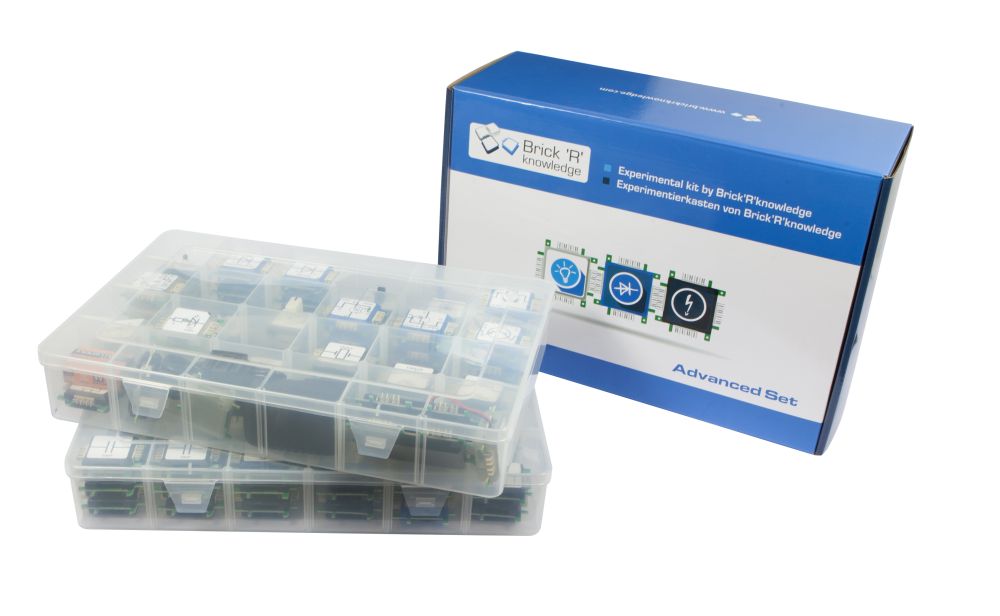

The Advanced Set consists of 111 components and enables the creation of advanced solutions. The innovative Brick R knowledge system makes it possible to get to grips with electrical engineering and the most important components, sizes and functions in a playful way. The system also helps to collect electronics knowledge and pass it on to the next generation with a learning effect. The different brick building blocks can be easily put together to form individual solutions, making it possible to experience both simple and complex topics in electrical engineering. The open system also allows you to add components and add your own building blocks for experiments.
Contents

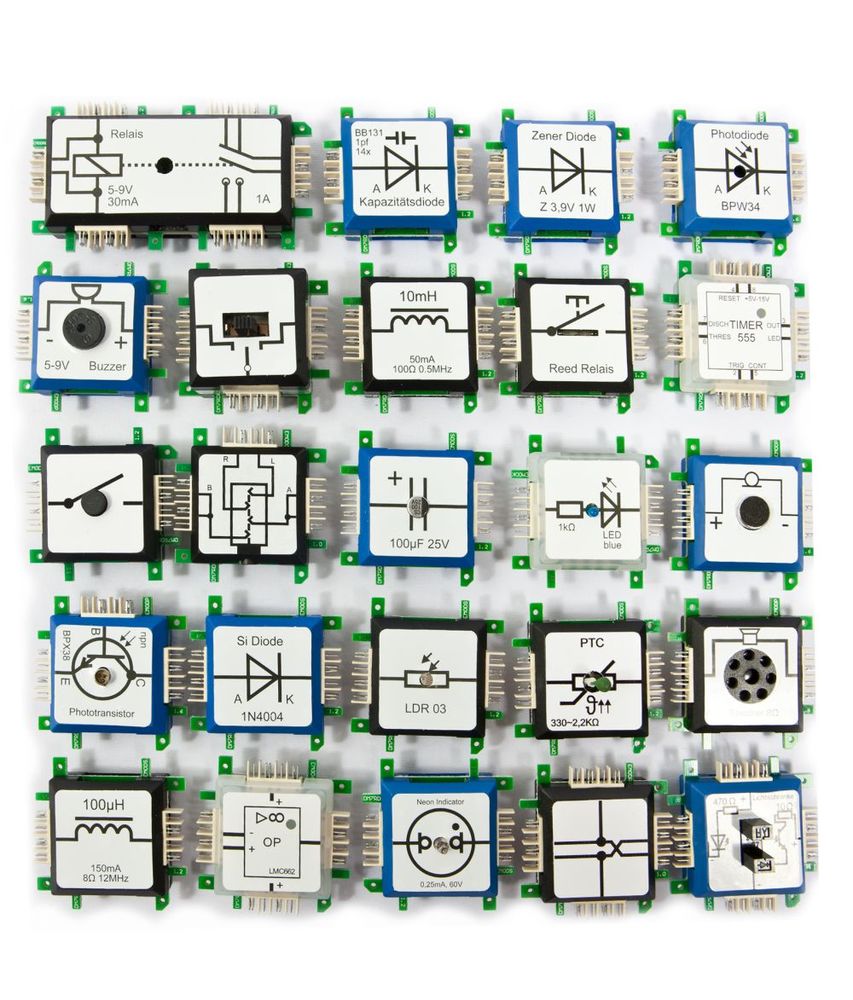

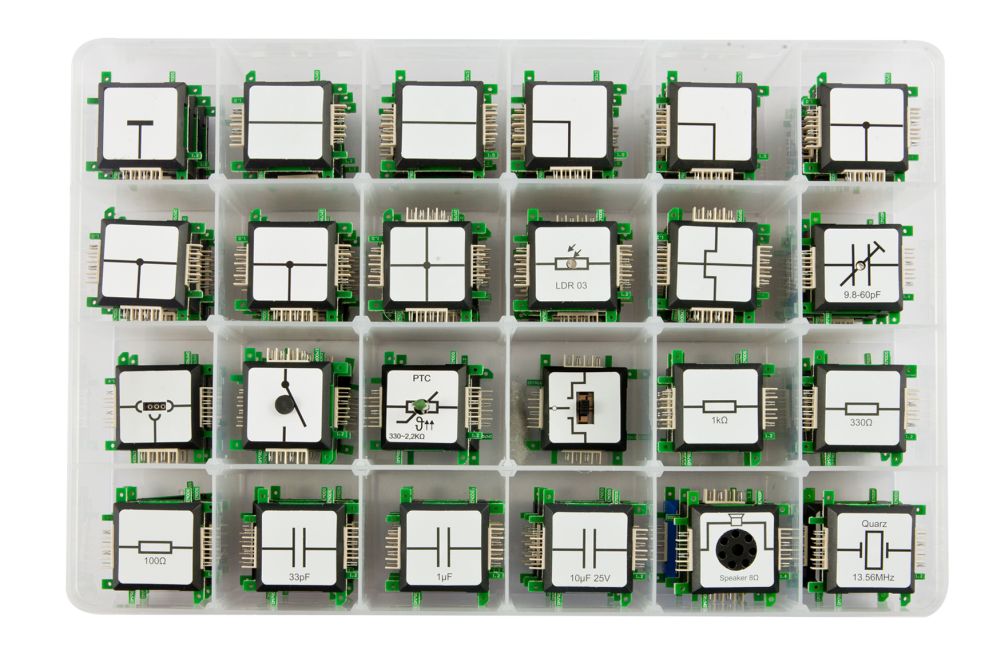

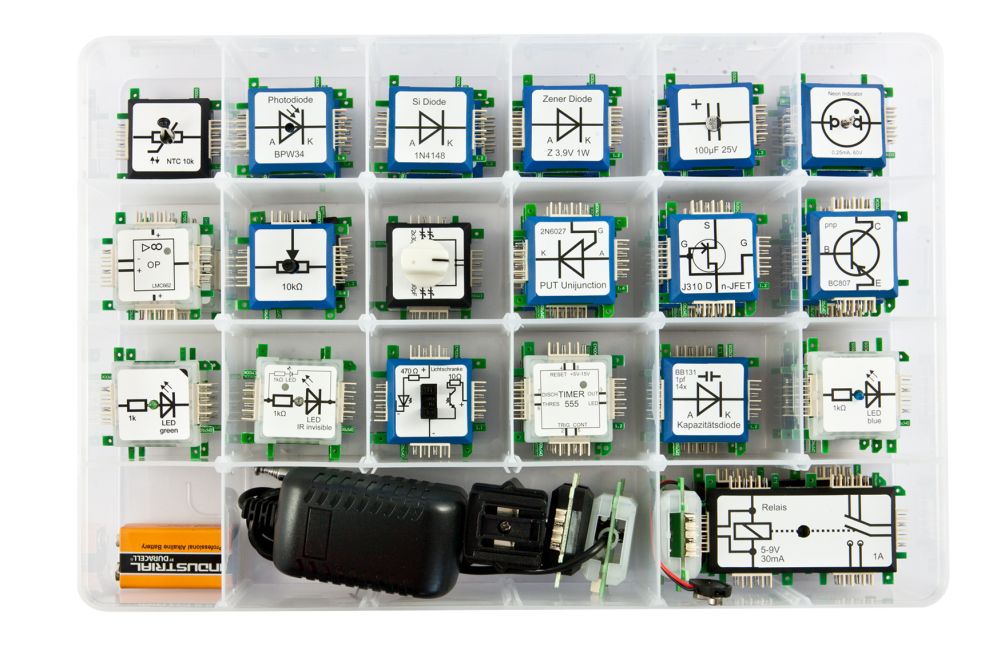

1 x 3.5mm jack stereo + micro (4-pin) on the side (118700)
1 x 9V power supply adapter 1A fuse and ground (118627)
1 x antenna (114183)
1 x battery adapter (113628)
1 x buzzer (118370)
1 x diode photo BPW34 (113694)
1 x diode Germanium AA118 (113688)
1 x diode capacitance diode BB131 1pF 14x (113690)
1 x diode Si 1N4004 (113686)
2 x diode Si 1N4148 (113687)
1 x diode Zener Z 3.9V 1W (1 13692)
1 x glow lamp (113695)
1 x manual Advanced Set (118385)
2 x capacitor 1µF (113668)
2 x capacitor 10µF 25V (113667)
2 x capacitor 100µF electrolytic 25V (113669)
2 x capacitor 100nF 50V (114165)
2 x capacitor 10nF ( 114164)
2 x capacitor 1nF (113664)
1 x capacitor 33pF (113708)
1 x capacitor variable capacitor 2x30pF and 2x300pF (118388)
1 x capacitor variable 2-30pF (113671)
1 x capacitor variable 9.8-60pF (114186)
1 x speakers ( 113703)
1 x LED blue (113637)
1 x LED yellow (113638)
1 x LED green (113639)
1 x LED IR (113640)
1 x LED red (113636)
2 x cable double crossed (113675)
5 x cable straight ( 113631)
3 x crossing cable not connected (113635)
4 x crossing cable connected (113634)
5 x corner piece cable (113632)
5 x ground cable (113630)
10 x T-crossing cable (113633)
1 x light barrier (118369)
1 x Microphone (118368)
1 x operational amplifier LM386 (113704)
1 x operational amplifier LMC662 (113696)
1 x potentiometer 10kOhm (113654)
1 x PUT (programmable unijunction) 2N6027 (118390)
1 x crystal 13.56MHz (113705)
1 x reed relay (114176)
2 x relay 8-12V 30mA 2x1 (118367)
1 x coil 10µH (114170)
1 x coil 22µH (114171)
1 x coil 100µH (113699)
1 x coil 10mH (113702)
2 x buttons ( 113644)
1 x Timer 555 (113682)
2 x Transistor BC 817 npn with base on both sides (118371)
1 x Transistor BC807 pnp (118372)
1 x Transistor n JFET J310 (113674)
2 x Transistor n MOS 2N7002 (113673)
2 x transistor npn BC817 (113657)
1 x transistor phototransistor npn BPX38 (120238)
1 x switch (113645)
2 x universal socket (116009)
1 x resistor NTC 10k (114162)
2 x resistor 100kOhm (113649)
1 x resistor 100Ohm (11 3646)
2 x resistor 10kOhm (113648)
1 x resistor 1kOhm (113647)
1 x resistor 330Ohm (114160)
2 x resistor 4.7kOhm (113650)
1 x resistor photoresistor LDR 03 (113655)
1 x resistor PTC 2.2k -10..40C ( 118625)
What is Brick'R'knowledge?
Brick'R'knowledge is an innovative plug-in system with which electronics knowledge can be transmitted very easily, quickly and playfully.
Who is Brick'R'knowledge for?
Children and young people: Getting started with electronics in a playful way – with the help of our manuals and videos – is just as much fun as playing with building blocks!
Pupils and students: What use is all the school theory if you can't apply the knowledge in practice? With our exciting plug-in system you can finally try out what is otherwise only on the board!
Teachers and professors: Bring your lessons to life! With our bricks you can increase your students' creativity and motivate them to try out and experiment on their own!
Developers and Engineers: Rapid prototyping and documentation saves you time and forever changes the way you think about rapid testing - no solder required!
Advantages of Brick'R'knowledge
Uncomplicated replacement of components or changes to the circuit by plugging the Brick blocks together.
Easily document and share the correct circuit diagram by photographing the circuit.
Robust and stable plug-in system thanks to plastic housings that can be opened and four-pin hermaphrodite connectors, which also allow 3D constructions. Didactically prepared manuals and new projects and ideas every day from a growing community.
Compact circuits through ground feedback.
New business areas with Brick'R'knowledge
Kindergartens, primary schools, secondary schools, universities, vocational schools
Training departments in ICT companies
Electronics Experiments for the private environment in the family
Amateur radio operators
Makers, those interested in electronics
Summer camps, educational days, workshops
