ALLDAQ ADQ-USB 3.0-ISO
/ USB 3.0 SuperSpeed isolator up to 1kV, ext. supply: 5VDC

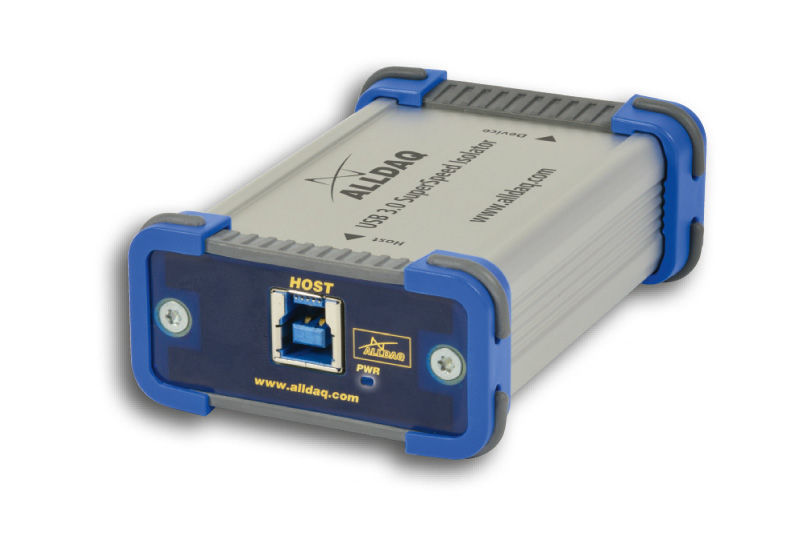

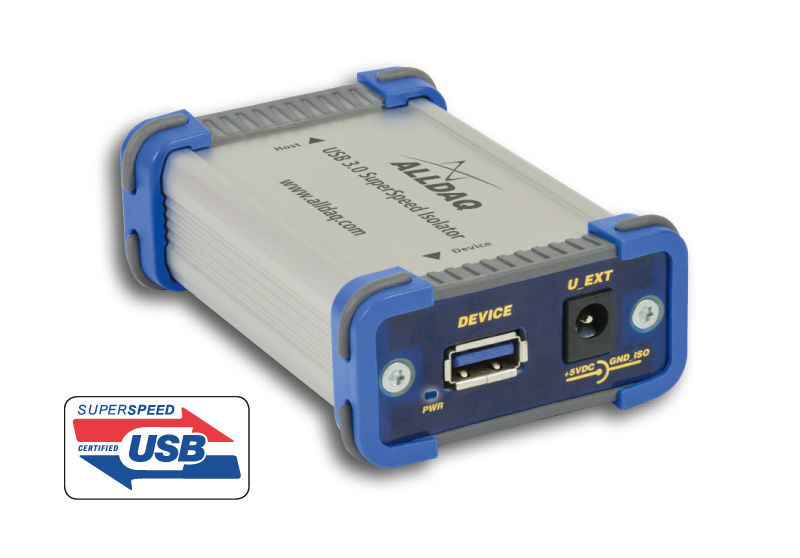

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology Application examplesPotential isolation between measuring devices and PC Effective suppression of ground loops - ideal for music studios and event technology Protection against voltage peaks in the automotive sector, e.g. when testing control units Decoupling of different ground potentials in industrial control technology Can also be used as a power injector for USB devices that are normally supplied via the USB port, but this does not provide sufficient power for reliable operation of the USB device FeaturesLatest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbit/s Re-clocking technology for all speeds Backwards compatible with USB 2.0/1.1/1.0 Isolation voltage (data and supply): up to 1 kV permanently! Maximum current for USB 3.0 devices: Without external power supply: max. 200 mA With external power supply: max. 900 mA USB connection: Host: USB 3.0 Type B socket Device: USB 3.0 Type A socket Operating temperature: -20°C..+70°C Rel. humidity: max. 95% Robust aluminum housing with rubber buffer Dimensions (L x W x H): 90 mm x 62 mm x 32 mm Operating system support: Windows, MAC OS and Linux Optional mounting kit for DIN rail Scope of delivery USB 3.0 SuperSpeed Isolator USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m Printed quick start guide Safety note:
This model is not approved for medical applications.
ADQ-USB 3.0-ISO(-PS): 1 kVDC (continuous) / 1.5 kVAC < (60s), ADQ-USB 3.0-ISO-W: 1.6 kVDC (60 s). Higher isolation voltage on request. ADQ-USB

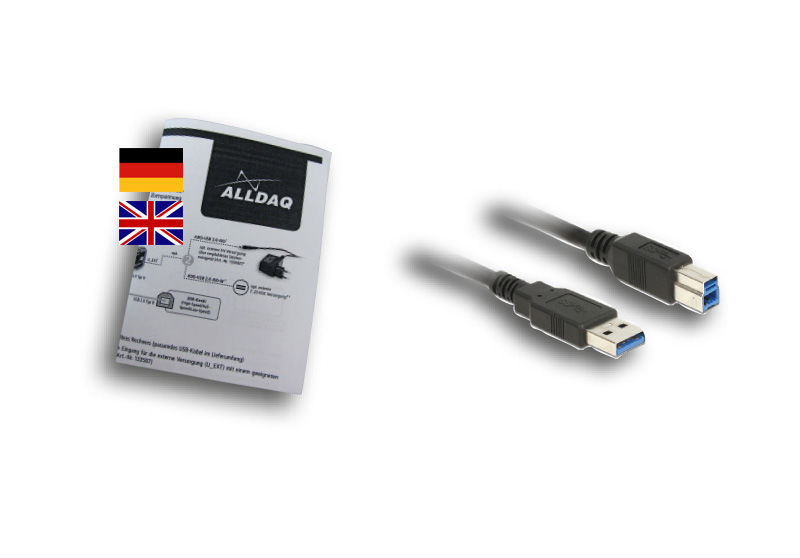

3.0-ISO-PS: 5 V plug-in power supply included. ADQ-USB 3.0-ISO-W: External power supply must be provided.
When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the device side (downstream). Cascading multiple USB isolators is not supported.
