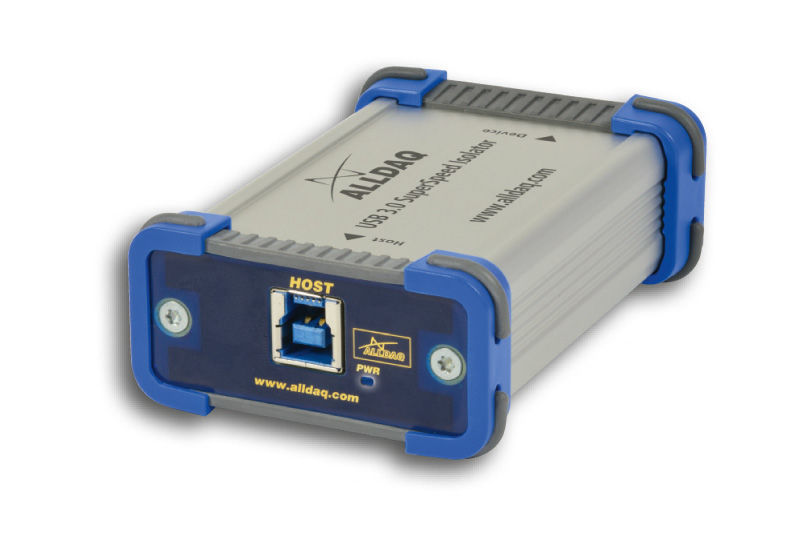

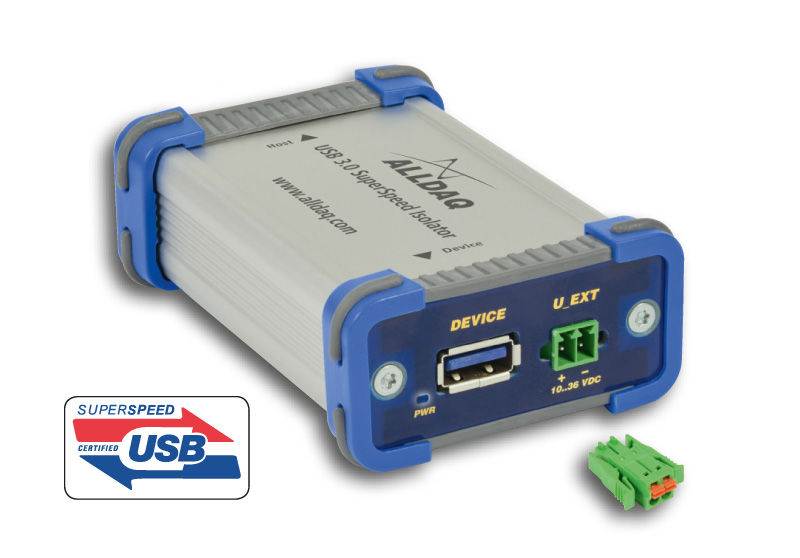

ALLDAQ ADQ-USB 3.0-ISO-W
/ USB 3.0 SuperSpeed Isolator up to 1kV, ext. Supply: 10..36VDC
|
-5% 250,80 EUR 264,00 EUR |
|
|
( 298,45 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 11 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 2082107 |
|---|---|
| Mfg Part No: | ADQ-USB 3.0-ISO-W |
| UPC/EAN: | 4038816066602 |
| Weight: | 1 kg |
Product information for ALLDAQ ADQ-USB 3.0-ISO-W:

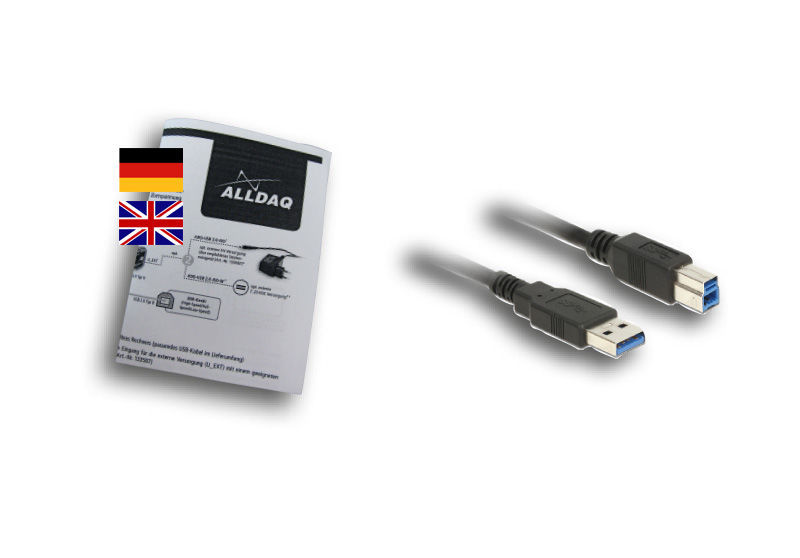

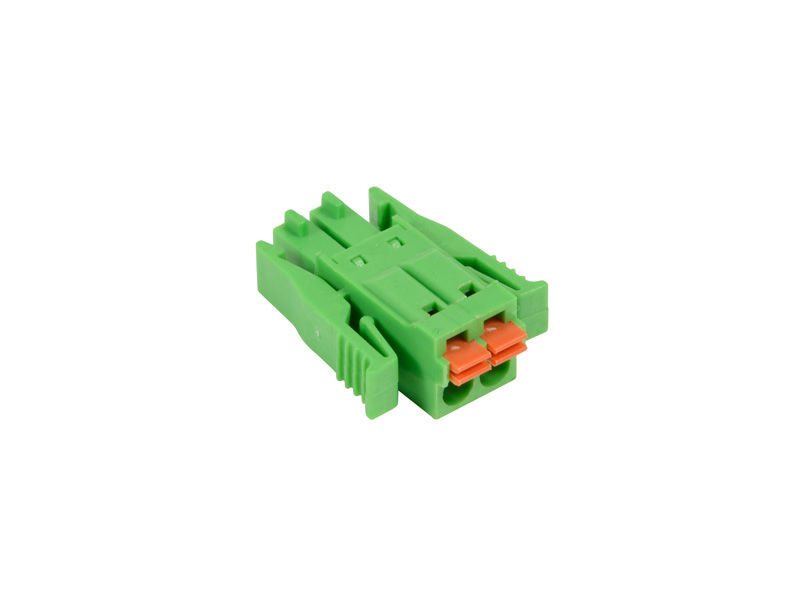

Application examplesPotential isolation between measuring devices and PC Effective suppression of hum loops - ideal for music studios and event technology Protection against voltage peaks in the automotive sector, e.g. B. when testing control devices Decoupling of different ground potentials in industrial control technology Can also be used as a power injector for USB devices that are normally powered via the USB port, but this does not provide sufficient power for reliable operation of the USB device FeaturesLatest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbit/s Re-clocking technology for all speeds Backward compatible with USB 2.0/1.1/1.0 Isolation voltage: 1.6 kVDC (60 s) Maximum current for USB 3.0 devices: max . 900 mA (with external supply) USB connection: Host: USB 3.0 Type B socket Device: USB 3.0 Type A socket Operating temperature: -20°C..+70°C Rel. humidity: max. 95% Robust aluminum housing with rubber buffer Dimensions (L x W x H): 90 mm x 62 mm x 32 mm Operating system support: Windows, MAC OS and Linux Optional mounting kit for DIN rail Scope of delivery USB 3.0 SuperSpeed isolator 2-pin. Mating connector with locking USB 3.0 cable (USB 3.0-A male to USB 3.0-B male), length: 1.5 m Short instructions printed Safety note:
This model is not approved for medical technology applications.
ADQ-USB 3.0-ISO(-PS): 1 kVDC (continuous) / 1.5 kVAC < (60s), ADQ-USB 3.0-ISO-W: 1.6 kVDC (60 s). Higher insulation voltage on request.
ADQ-USB 3.0-ISO-PS: 5 V power supply included. ADQ-USB 3.0-ISO-W: External supply must be provided.
When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the device side (downstream). Cascading multiple USB isolators is not supported.
