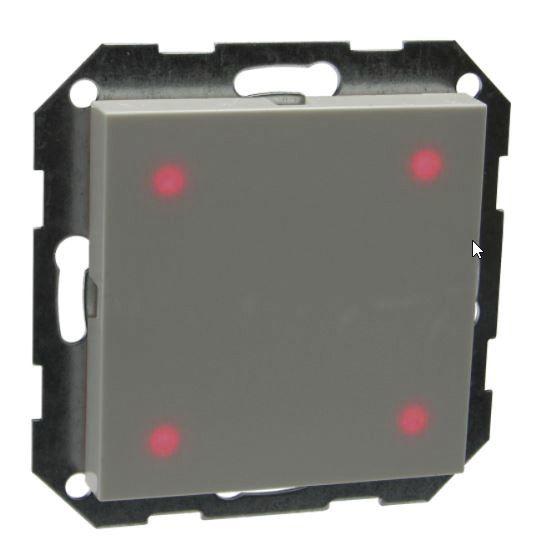

AIZO digitalSTROM X-IC-22-0001 IC T4L-To Dimm Sensor 4-fold content_copy

The ¿ IC T4L-TOUCH is a capacitive digitalSTROM 4-way button for easy operation of light, shading, music, etc. Thanks to its IP66 protection rating, it is suitable for indoor and outdoor applications. The dSready button, which is only 10 mm (or 16 mm) flat, can be used as a surface-mounted or built-in button. The four touch areas each have their own dSID and can be used as a joker (black), for light (yellow), or shading (gray) in the dS system. The latest 300 dS technology is integrated. When the four touch surfaces are touched, this is indicated by an integrated LED on the surface. The 'yellow' function can be carried out in either dimming or switching mode. The dS system function can also be identified by an LED on the back. Each touch surface can trigger moods 1-4 through multiple operation. Only L and N need to be connected. The module is pre-configured and ready for immediate use. The standard delivery is in a 55 mm pure white version. The button format 55 matches the rockers and frames of the Gira Standard, E2, E3, Event, Esprit and Classix series. The frames are not included in the delivery.
Type: X-IC-22-0001
