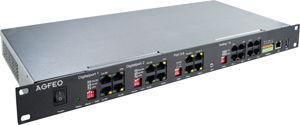

Agfeo 6101534 Telephone system ES548-IT (48,3 cm ( 19 inch ) enclosure) content_copy

Full-IP system in a 19' housing (black) with up to 12 VoIP channels (6 in the basic configuration, 6 more via a paid optical license), 1 U, all ports and interfaces accessible from the front (via RJ45). 2 digital ports (optionally ext. S0/int. S0/Up0), 4 UP0 ports, 8 analog connections (including CLIP function, a/b TFE operating mode possible) and LAN connection for up to 25 users. Operating mode display of the digital ports via LED. SIP internal, SIP external, customizable MoH, integr. Voice box system including voice to mail (6 voice boxes in the basic configuration, expandable to 18 via license), optional fax box system via license (fax reception including fax to mail, max. 3 fax boxes), audio information system (1-channel, optional via License expandable to 4 channels), optional call management system extension via license, TAPI server functionality (optional license to increase the number of supported TAPI lines, 3 by default, max. 20), support SIP-TFE, door image display, support DECT IP system, TK-Suite Server ES on board, configuration via LAN, CTI software TK-Suite Client ES, SmartHome Server on board including support for the SmartConnectBox (ext. relays and sensors). Integrated update server with stored firmware versions for connected system telephones, operation of AGFEO ST 21, ST 22, ST 40, ST 42, ST 45, ST 22 IP, ST 40 IP, ST 42 IP, ST 45 IP possible in the current firmware release.
