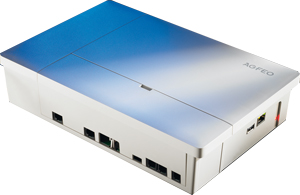

Agfeo 6101516 Telephone system ES546 (wall-mounted enclosure) content_copy

Full-IP system in a plastic wall housing with up to 12 VoIP channels (6 in the basic configuration, 6 more via a paid optical license), 2 digital ports (either ext. S0/int. S0/Up0), 6 analog connections (incl . CLIP function, a/b TFE operating mode possible) and LAN connection for up to 25 users. SIP internal, SIP external, customizable MoH, integr. Voice box system including voice to mail (6 voice boxes in the basic configuration, expandable to 18 via license), fax box system via license (fax reception including fax to mail, max. 3 fax boxes), audio information system (1-channel, optionally via license expandable to 4 channels), optional call management system (AMS) per license, TAPI server functionality (optional licenses to increase the supported TAPI lines of 3 by default to a maximum of 20 and CSTA extension), SIP-TFE Support, door image display, support for DECT IP system, configuration via LAN, SmartHome Server on board including support for the SmartConnectBox (ext. relays and sensors). Integrated update server with stored firmware versions for connected System telephones. Depending on the firmware version used, operation of the following system telephones is possible: ST 21, ST 22 (IP), ST 40 (IP), ST 42 (IP), ST 45 (IP), ST 53 (IP), ST 54 IP and ST 56 (IP). AGFEO Dashboard Server (on board) for CTI/UC functionality can be permanently activated via an optional license (demo operation possible), CTI/UC control and operating software AGFEO Dashboard incl. possible. VISOfon functionality (optional license extension).
