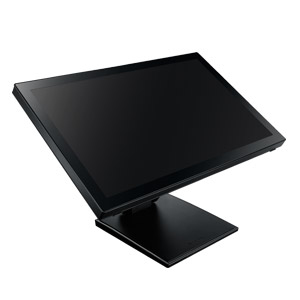

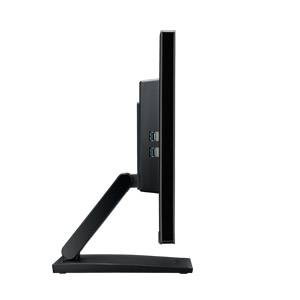

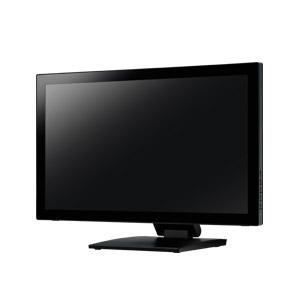

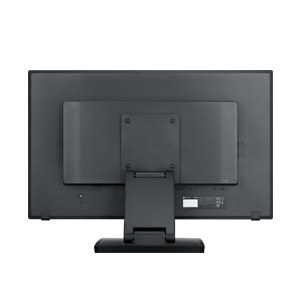

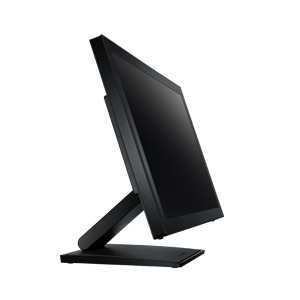

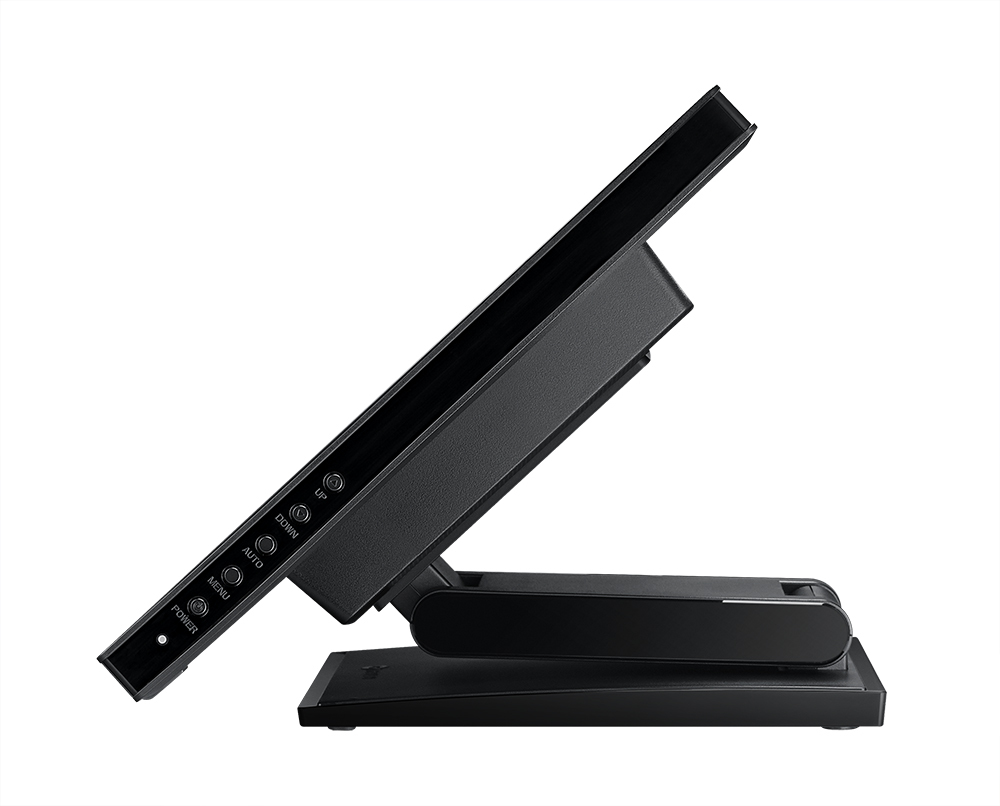

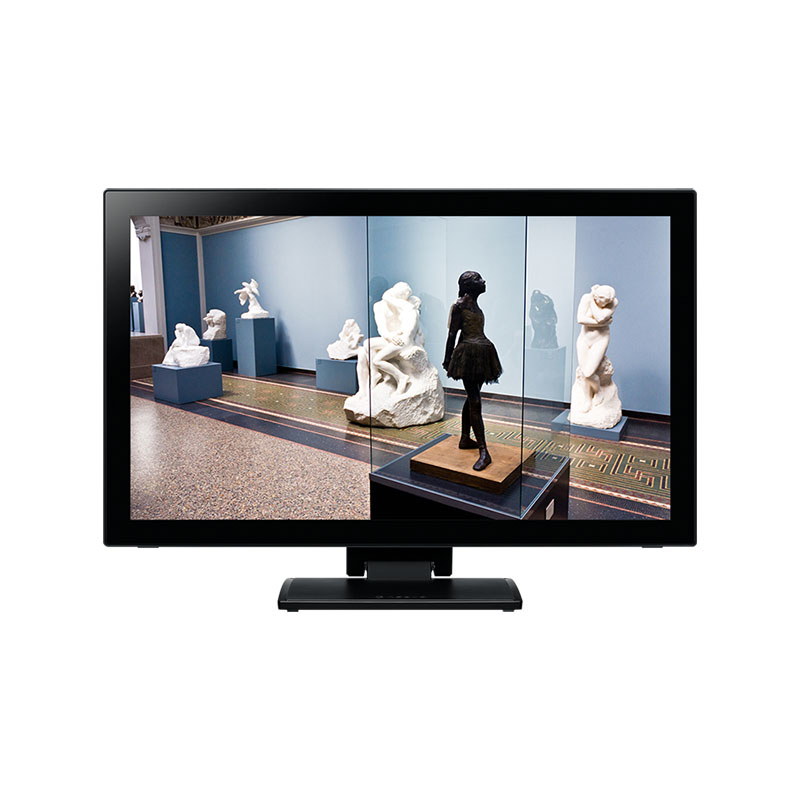

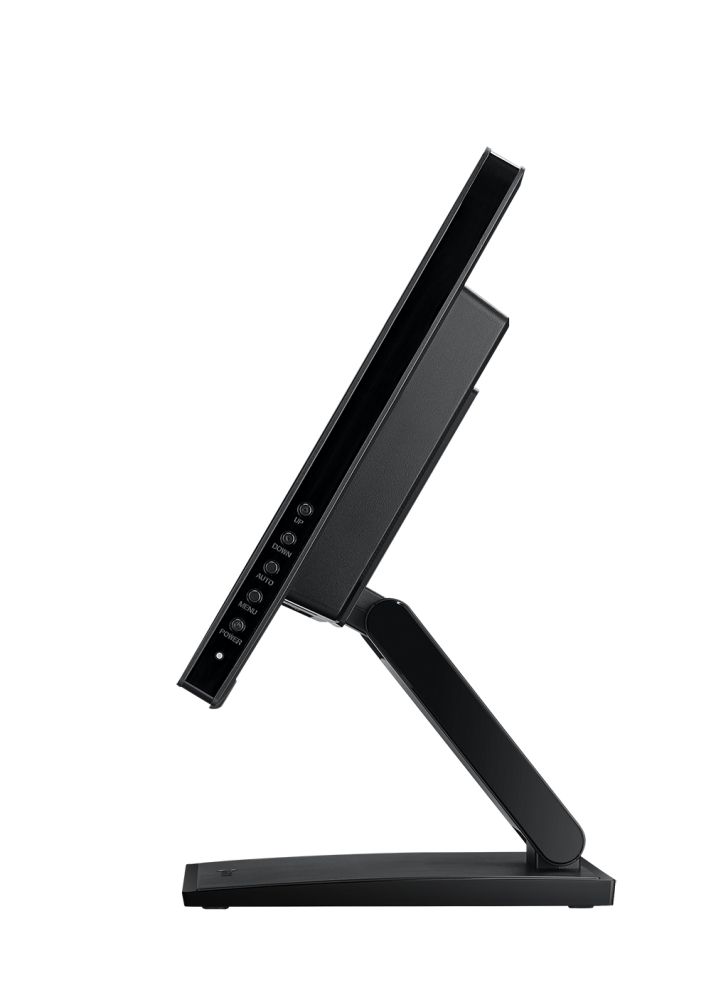

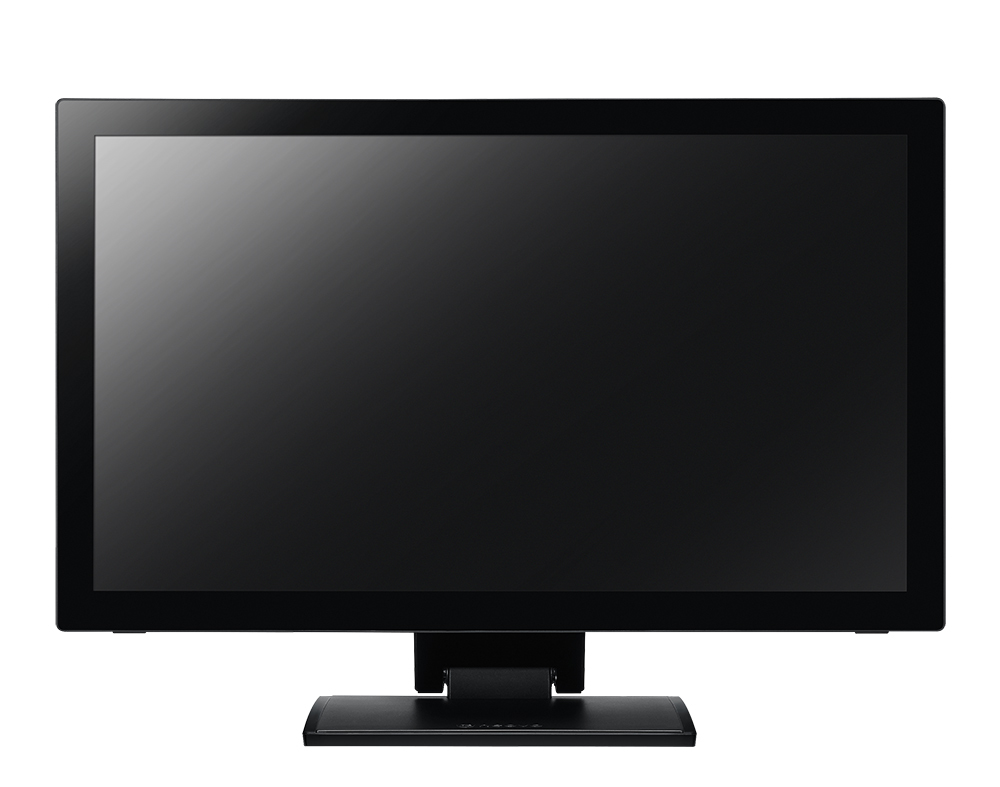

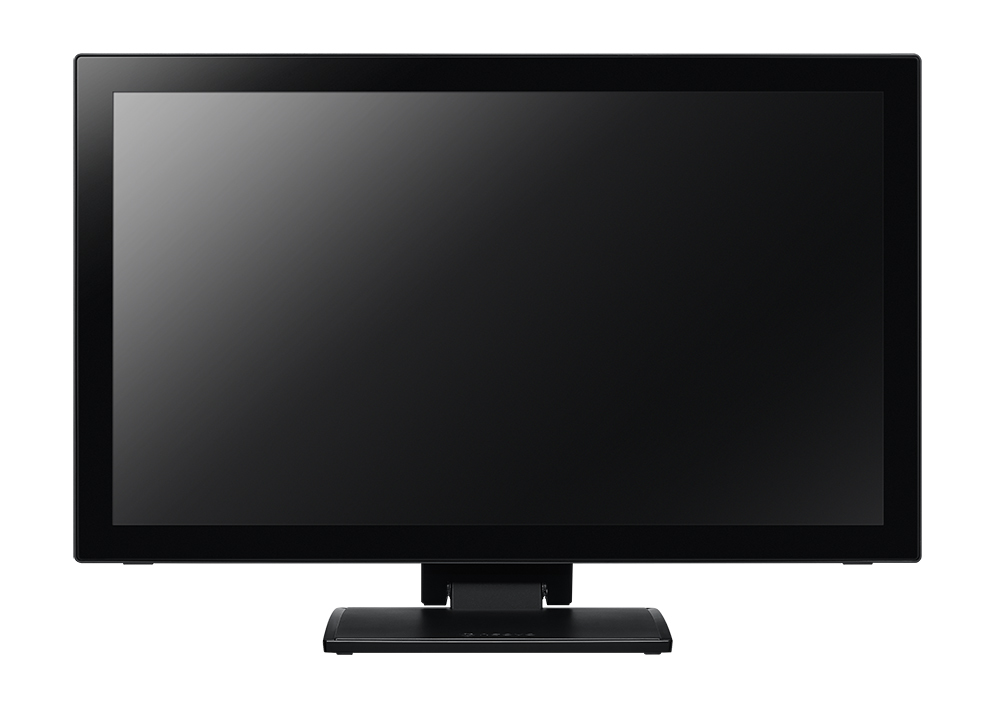

AG Neovo TM-23 58,4cm 16: 9 10 Point Touch LFD
|
398,56 EUR |
|
|
( 474,29 EUR incl. VAT ) ≈ £336.78 | ≈ $445.59 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 684242 |
| Mfg Part No: | TM23D011E0100 |
| UPC/EAN: | 4710739592436 |
| Weight: | 9.075 kg |
Product information for AG neovo TM23D011E0100:
Thanks to its" "Advance Projected Capacitive" "touch controller with 10 simultaneous pressure points, the TM-23 is not only flawless touch controls but makes thus clearing the way for new creative and exciting interactive applications. With Full HD resolution and brilliant he granted IPS panel impeccable color reproduction from all angles. Flexible positioning in orientation and height provide user-friendly ergonomics and comfort. The budget-conscious choice for public interkative applications.
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Glass thickness | 2.4 mm |
| Display | |
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Touchscreen technology | Capacitive |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.265 x 0.265 mm |
| Viewable size diagonal | 58.4 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 55 - 76 Hz |
| Display diagonal (metric) | 58 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 40 cm |
| Tilt angle range | -5 - 90° |
| VESA mounting | |
| Wall mountable | |
| Cable lock slot | |
| Height adjustment | |
| Tilt adjustment | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in microphone | |
| Built-in camera | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Other features | |
| Energy efficiency class (legacy scale) | B |
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Certification | CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Packaging data | |
| Package width | 632 mm |
| Package depth | 448 mm |
| Package height | 186 mm |
| Package weight | 8.7 kg |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Windows 10 |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Ports & interfaces | |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| DisplayPorts quantity | 1 |
| Audio input | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Built-in USB hub | |
| HDMI | |
| Headphone out | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 14 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 561 mm |
| Depth (with stand) | 238.5 mm |
| Height (with stand) | 400 mm |
| Weight (with stand) | 6.6 kg |
| Width (without stand) | 561 mm |
| Depth (without stand) | 57.2 mm |
| Height (without stand) | 338.2 mm |
| Weight (without stand) | 4.3 kg |
