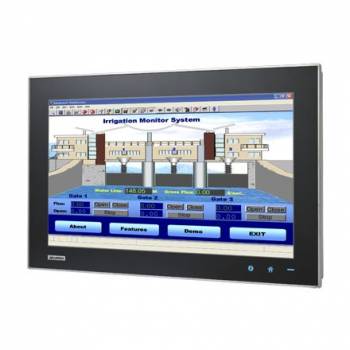

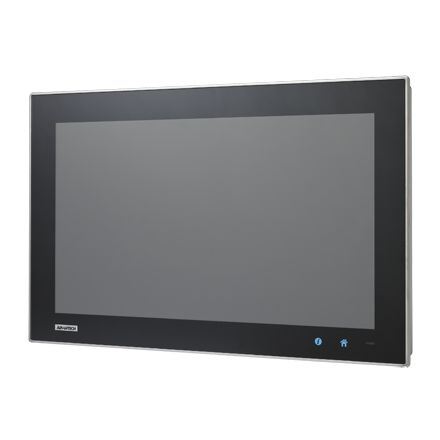

Advantech TPC-1840WP-T3AE - 47 cm ( 18,5 inch ) WXGA Multi-Touch Panel-PC
|
1.580,91 EUR 1.580,91 EUR |
|
|
( 1.881,28 EUR incl. VAT ) ≈ £1,321.64 | ≈ $1,746.90 plus delivery charges: 55,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 308804 |
|---|---|
| Mfg Part No: | TPC-1840WP-T3AE |
| Weight: | 0.5 kg |
Product information for Advantech TPC-1840WP-T3AE:
Applications
This panel computer is suitable for applications in manufacturing, machine building, logistics, and other environments where direct, touch-based operation is required. The IP66-compatible front protects against dust and splashing water, making it suitable for outdoor use or in humid, dusty production environments. The scratch-resistant surface with a hardness of 7H ensures long service life even under intensive use.
Functions and equipment in detail
The device features a fanless cooling system, enabling disturbance-free and quiet operation. The front-mounted LEDs provide visual indication of operational status, allowing the user to quickly determine whether the device is powered on, in standby, or experiencing an error. An integrated function and start page button supports intuitive operation of the user interface. HD audio support enables the use of alarm applications where acoustic signals are important. Additionally, HDMI support is available to connect a second monitor for extended display or monitoring tasks.
Technology explained simply
The processor is an AMD dual-core T56E with a clock speed of 1.65 GHz, equipped with an external APU (Accelerated Processing Unit). This enables advanced graphics performance, sufficient for demanding user interfaces, visualizations, or graphics-intensive applications. The Mini-PCIe expansion slots allow additional functionalities such as WLAN, 3G/4G modems, or other interfaces to be added later. The easily removable side cover facilitates maintenance and replacement of internal components such as Cfast modules, hard drives, or Mini-PCIe cards, without requiring the entire device to be disassembled.
Compatibility and accessories
The device is designed for use in industrial environments and can be combined with various extensions connected via the Mini-PCIe slot. HDMI support enables connection to external monitors, which is useful for applications requiring multiple display surfaces. The IP66 compatibility of the front makes the panel computer suitable for use in harsh environments where protection against dust and water is required.
Mounting and installation
The panel computer is designed for mounting in enclosures, on walls, or on workstations. Its robust construction and fanless design facilitate installation in environments where noise or dust is a concern. The easily accessible side covers support quick maintenance and component replacement without special tools.
Advantages in operation
The combination of touch-sensitive display, robust construction, fanless cooling concept, and expandable interfaces makes the Advantech TPC-1840WP-T3AE a reliable solution for industrial applications. The intuitive operation via integrated buttons and the visual status indication increase efficiency in daily use. The IP66-compatible front and the scratch-resistant surface ensure long service life even under demanding conditions.
| General | |
| Product type | Panel computer |
| Screen size | 18,5 inch |
| Display technology | WXGA-TFT-LED-LCD |
| Screen format | 16:9 |
| Touch function | PCT multitouch |
| Processor | AMD Dual-Core T56E |
| Clock frequency | 1,65 GHz |
| Graphics performance | Advanced graphics performance via external APU |
| Cooling system | fanless |
| Front panel | magnesium alloy casting |
| Degree of protection | IP66-compatible |
| Surface hardening | 7H |
| Status indicators | Front-mounted LEDs |
| Audio function | HD-Audio |
| Video output | HDMI |
| Expansion slot | Mini-PCIe |
| Maintenance | Easily openable side cover |
| Design award | iF product design award 2013 |
