Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC

Your rating:
Average rating
product review for Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC
( 4.5 / 5 ) 165 ratings
Advantech TPC-1782H-433AE
This image may differ from the desired article.
Advantech TPC-1782H-433AEAdvantech TPC-1782H-433AEAdvantech TPC-1782H-433AEAdvantech TPC-1782H-433AEAdvantech TPC-1782H-433AE
1.751,17 EUR 1.751,17 EUR
( 2.083,89 EUR incl. VAT )
≈ £1,463.98  |  ≈ $1,935.04
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC
Lieske Part No.:309182
Mfg Part No: TPC-1782H-433AE
Weight:0.5 kg

Product information for Advantech TPC-1782H-433AE:

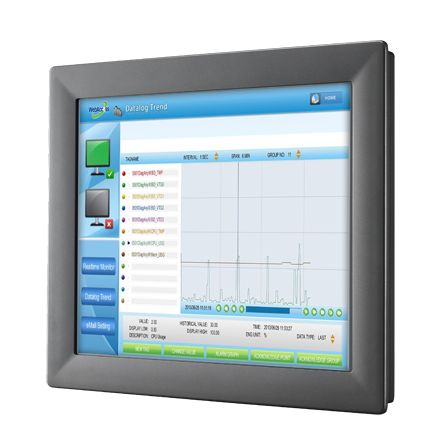

The Advantech TPC-1782H-433AE is an industrial panel computer with a 43,2 cm ( 17 inch ) display, designed for use in demanding environments. It features an Intel® 4th Generation Core i3 processor with a clock speed of 1.7 GHz and 4 GB DDR3L SDRAM, providing sufficient performance for typical industrial applications such as machine control, process visualization, or operator panels. The device is designed as a compact, fanless embedded system and features an aluminum alloy front frame that resists mechanical stress and environmental influences. The front side is equipped with an IP65-rated protection class, ensuring dust and splash water protection and enabling use in outdoor or humid production environments. The integrated touch display is based on 5-wire resistive technology, offering high mechanical robustness and a 50,000-hour lifespan for the LED backlighting.

Applications
This panel computer is suitable for industrial applications requiring direct operation via touch interface, for example in manufacturing automation, logistics, energy supply, or transportation technology. The IP65 protection rating and fanless design make it particularly suitable for environments where dust, moisture, or vibrations are present. The integrated iDoor technology extends functionality through flexible expansion options, enabling use even in complex control systems.

Functions and Equipment in Detail
The device offers a wide range of interfaces provided by the iDoor technology. These include isolated digital inputs/outputs, support for fieldbus protocols, and communication modules for 3G, GPS, GPRS, and WiFi. These features enable flexible integration into existing industrial networks and remote control systems. Additionally, the device supports MRAM (Magnetoresistive RAM), enabling fast and reliable data storage, especially during sudden power failures. The integrated chassis grounding protection ensures a safe electrical connection and protects against electrostatic discharges.

Technology Explained Simply

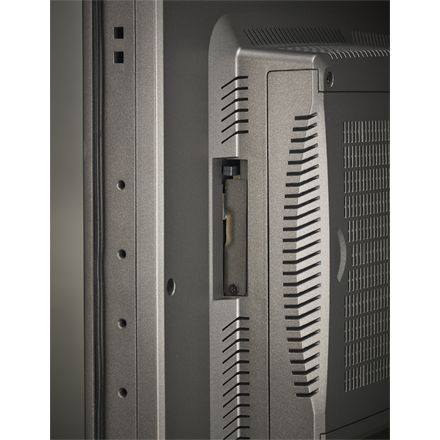

The 43,2 cm ( 17 inch ) display is an SXGA TFT screen with LED backlighting, suitable for clear visibility even in daylight. The 5-wire resistive technology of the touchscreen allows precise operation with a stylus or fingers, even on dirty or wet surfaces. The fanless design reduces maintenance requirements, as there are no moving parts that can become dirty or worn. The iDoor technology allows additional modules such as communication or I/O adapters to be installed later without opening the housing. This increases the flexibility and lifespan of the device.

Compatibility and Accessories
The device is compatible with Advantech's SUSIAccess software, enabling remote management and monitoring of the devices. The iDoor technology supports various expansion modules, including fieldbus adapters, communication modules (3G, GPS, GPRS, WiFi), and MRAM memory. These modules can be added according to application requirements to adapt the functionality of the panel computer.

Mounting and Installation

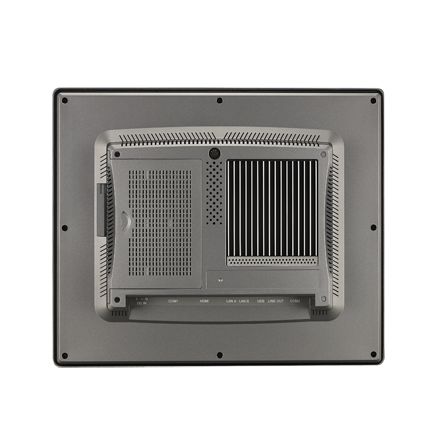

The panel computer is designed for embedded mounting and can be integrated into existing machines or operator consoles. The IP65-rated front protection class allows direct front-side mounting without requiring additional protection. Installation is carried out via standard mounting holes provided in the housing.

Operational Advantages
The fanless operation reduces maintenance requirements and noise emissions. The IP65 protection rating ensures high reliability in harsh environments. The iDoor technology enables modular expansion, allowing the device to be adapted to changing requirements over a longer period. Support for remote management via SUSIAccess simplifies monitoring and maintenance of multiple devices from a distance.

General
Screen size17 "
Display technologySXGA TFT LED LCD
Touch technology5-wire resistive
ProcessorIntel® 4th Generation Core i3
Clock frequency1,7 GHz
Main memory4 GB
Memory typeDDR3L SDRAM
Degree of protectionIP65
Expansion optionsPCIe x1, Mini PCIe
Supported interfacesIsolated digital IO, fieldbus protocols, 3G, GPS, GPRS, WiFi, MRAM
Multimedia supportHDMI, Audio
Remote managementAdvantech SUSIAccess
iDoor technologyYes
Chassis grounding protectionYes


Questions & answers

What is the delivery time of Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC?

The article Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech TPC-1782H-433AE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC always at the best possible price. We can give you a discount of 2% on Advantech TPC-1782H-433AE - 43,2 cm ( 17 inch ) SXGA Panel PC if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
