Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U

Your rating:
Average rating
product review for Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U
( 4.4 / 5 ) 148 ratings

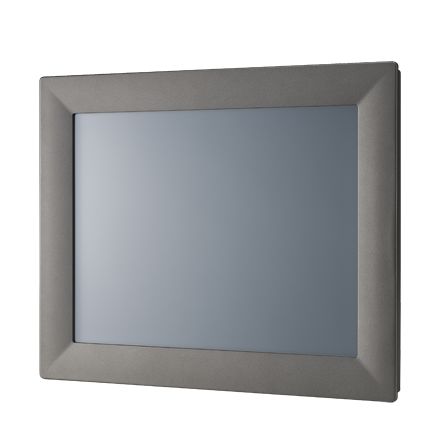

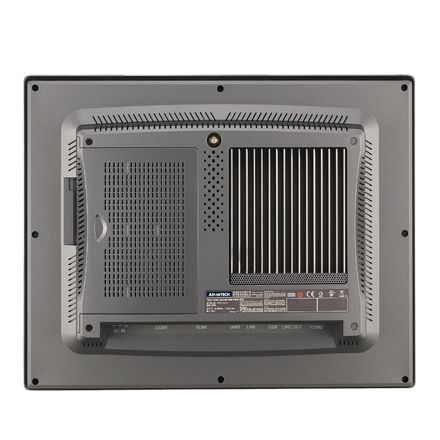

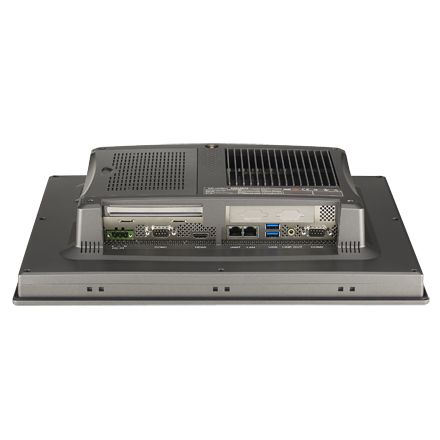

Advantech TPC-1582H-433AE
This image may differ from the desired article.
Advantech TPC-1582H-433AEAdvantech TPC-1582H-433AEAdvantech TPC-1582H-433AE
1.557,62 EUR
( 1.853,57 EUR incl. VAT )
≈ £1,302.17  |  ≈ $1,721.17
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U
Lieske Part No.:308976
Mfg Part No: TPC-1582H-433AE
Weight:0.5 kg

Product information for Advantech TPC-1582H-433AE:

The Advantech TPC-1582H-433AE is an industrial touch panel computer with a 15-inch XGA TFT LED display, designed for use in demanding environments. The device features an Intel 4th Generation Core i3 processor with a clock speed of 1.7 GHz and 4 GB DDR3L SDRAM, providing sufficient performance for typical industrial applications such as machine control, process visualization, or operator panel applications. The compact, fanless embedded system is housed in an enclosure made of aluminium alloy, ensuring high mechanical stability and heat dissipation. The front trim panel is protected to IP65 standard, meaning dust and splash water protection, enabling suitability for outdoor use or humid production environments. Installation is carried out in a command panel housing, allowing direct integration into existing machine or plant constructions.

Applications
This panel computer is designed for industrial applications requiring a robust, reliable, and low-maintenance operator interface. Typical use cases include control of production systems, visualization of process data in manufacturing, machine operation in the packaging industry, or use in logistics systems. The IP65 protection rating also makes the device suitable for environments where it may be exposed to splashing water, dust, or light dirt, for example in food processing or outdoor installations.

Functions and Equipment in Detail
The display is an XGA TFT LED LCD with an LED backlight lifespan of 50,000 hours, enabling long-term operation without replacement of the backlight. The integrated resistive 5-wire touchscreen offers high durability and is suitable for use with styluses or fingers, even on dirty or wet surfaces. The system IO and isolated digital IO interfaces utilize the iDoor technology, enabling flexible expansion of interfaces. This technology also supports integration of fieldbus protocols, simplifying connection to existing industrial communication networks.

Technology Explained Simply
The iDoor technology allows adaptation of interfaces to specific requirements without opening or modifying the device. This reduces maintenance time and increases flexibility when integrating into existing systems. Support for 3G, GPS, GPRS, and WLAN via iDoor technology enables mobile communication and remote monitoring, allowing the device to be used in mobile or distributed installations. Support for MRAM (Magnetoresistive RAM) provides a non-volatile memory solution suitable for critical applications where data must be retained even during power failure. HDMI and audio multimedia support expands usage possibilities, for example for video playback or audio signal output.

Compatibility and Accessories
The device supports PCIe and Mini PCIe expansion slots, enabling integration of additional hardware such as network cards, memory modules, or specific interfaces. Support for Advantech's SusiAccess management software allows remote administration and monitoring of the device, making maintenance and configuration possible even over long distances.

Mounting and Installation
Mounting is performed in a command panel housing, with the device protected against dust and splashing water by the IP65 rating. The front trim panel made of aluminium alloy ensures high mechanical strength and heat dissipation. The fanless design reduces maintenance effort, as no fan cleaning is required. The enclosure earthing protection function ensures a safe electrical connection and protects against electrostatic discharges.

Operational Advantages
The Advantech TPC-1582H-433AE offers high reliability due to its fanless construction and robust design. The long lifespan of the LED backlight and resistive touchscreen reduces maintenance and replacement costs. The iDoor technology enables flexible interface expansion, allowing the device to be adapted to different requirements. Remote management support via SusiAccess simplifies the maintenance of multiple devices from a distance.

General
Display size15 "
Display technologyXGA TFT LCD
IlluminationLED
ProcessorIntel 4th Generation Core i3
Clock frequency1,7 GHz
Main memory4 GB
Memory typeDDR3L SDRAM
Degree of protectionIP65
Touchscreen typeresistive 5-wire touchscreen
Expansion slotsPCIe and Mini PCIe
Supported communication3G, GPS, GPRS, WLAN
Remote administrationAdvantech SusiAccess
Housing materialAluminium alloy
iDoor technologyYes
MRAM supportYes
HDMI supportYes
Audio supportYes
Fieldbus supportYes
FanlessYes
Housing grounding protectionYes


Questions & answers

What is the delivery time of Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U?

The article Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech TPC-1582H-433AE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U always at the best possible price. We can give you a discount of 2% on Advantech TPC-1582H-433AE - 38,1 cm ( 15 inch ) XGA Panel PC, Intel i3-4010U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
