Advantech PPC-6170-RI5AE content_copy

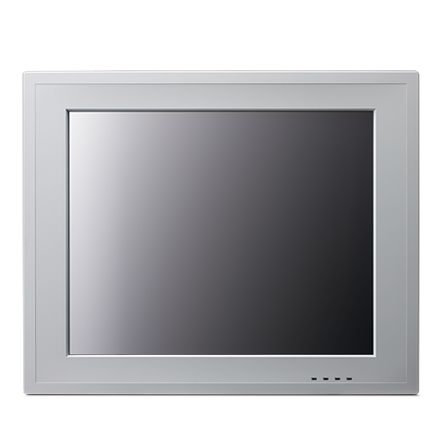

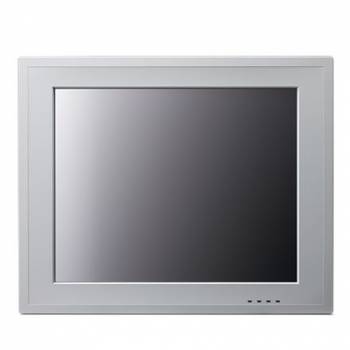

The Advantech PPC-6170-RI5AE is a 43,2 cm ( 17 inch )-panel PC with integrated touch display, designed for use in industrial environments. It features an Intel® Core i3/i5/Celeron® processor, with supported models including Celeron 847E and 1020E, as well as Core i3 and i5. The platform is based on the Intel QM77 PCH and is designed for applications requiring a stable, reliable, and expandable computing environment, such as in automation technology, machine control, or industrial monitoring.

Applications
This panel PC is suitable for industrial applications where direct operation via the integrated display is required. It is appropriate for use in production environments, laboratory systems, transportation technology, or manufacturing monitoring. The robust design and support for Intel AMT8.0 enable remote maintenance and monitoring, enhancing operational reliability. Integrated support for iManager and SUSIAccess provides additional tools for system management and monitoring.

Functions and Features in Detail
The PPC-6170-RI5AE includes two GbE network ports, enabling fast and reliable network connectivity. An isolated RS-232/422/485 port is also integrated, with the interface configurable in the BIOS. This port is suitable for communication with industrial devices such as sensors, controls, or machine control systems. Additionally, an 8-channel GPIO/RS-232 GPIO with TTL level is available, configurable by replacing the pin header. This allows flexible connection to external control and sensor units.

Technology Explained Simply
The CPU platform is based on Intel technology, supporting processors including Core i3, i5, and Celeron 847E and 1020E. The integrated Intel QM77 PCH chipset ensures a stable system architecture. The system supports DDR3/DDR3L SODIMM memory modules with a maximum capacity of 8 GB. The memory slots are designed for industrial applications with high demands for reliability and stability. Support for Intel RAID with an optional second HDD enables redundant data storage, which is beneficial for critical applications.

Compatibility and Accessories
The panel PC offers multiple expansion slots: one PCIe x4, one PCI, and one PCIe x1. Optionally, two additional PCI and two PCIe x1 slots are available. These expansion options allow integration of additional interfaces, graphics cards, or specialized industrial modules. Support for Embedded Software-APIs enables integration into existing software environments and development of customized applications.

Mounting and Installation
The panel PC is designed for mounting in front panels or enclosures. Installation is performed by securing it to the front of a housing or machine. The integrated interfaces and robust construction facilitate integration into existing systems. Configuration is done via the BIOS, where the RS-232/422/485 interface and other parameters can be adjusted.

Operational Advantages
Operation of the PPC-6170-RI5AE is characterized by high reliability and expandability. Support for Intel AMT8.0 enables remote maintenance, reducing operational costs. The integrated interfaces and expansion options provide flexibility when connecting to various devices and systems. The use of DDR3/DDR3L memory and support for up to 8 GB enables powerful data processing, even for demanding applications. The combination of an integrated display and robust design makes this panel PC a compact solution for industrial control and operator interface tasks.

General
Screen size	17 "

---
