Advantech EKI-2701PSI-AE , PoE splitter

Your rating:
Average rating
product review for Advantech EKI-2701PSI-AE , PoE splitter
( 4.6 / 5 ) 36 ratings

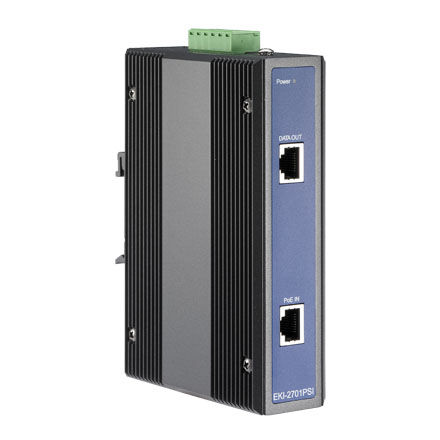

Advantech EKI-2701PSI-AE
This image may differ from the desired article.
107,40 EUR
( 127,81 EUR incl. VAT )
≈ £89.90  |  ≈ $118.04
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech EKI-2701PSI-AE , PoE splitter
Lieske Part No.:440937
Mfg Part No: EKI-2701PSI-AE
Weight:0.2 kg

Product information for Advantech EKI-2701PSI-AE:

The Advantech EKI-2701PSI-AE is an industrial PoE splitter designed specifically for use in demanding environments. It enables the separation of power and data from a PoE-capable network connection, allowing data transmission to continue over the Ethernet cable while simultaneously providing a separate power supply for connected devices. This splitter is suitable for industrial networks where robust and reliable components are required, particularly in environments with extreme temperatures.

Applications

The EKI-2701PSI-AE is suitable for applications where PoE end devices such as IP cameras, access points, or industrial sensors are powered via a network connection using power over cable, but a separate power supply is needed for additional devices. It is particularly suitable for industrial environments such as production halls, warehouses, or outdoor areas, where operating temperatures can vary significantly. Mounting is either on a DIN rail or on a wall, allowing flexible integration into existing infrastructures.

Features and Equipment in Detail

The splitter supports data transmission in the 10/100/1000 Base-TX standard, ensuring high bandwidth for data transmission. It is IEEE 802.3af compatible, meaning it works with standard PoE networks and can safely and efficiently separate power from the Ethernet cable. Power output is delivered via a separate connection with a maximum power of 12.95 W at 24 VDC, enabling a wide range of industrial devices to be powered. The integrated power isolation and short-circuit protection function protect the connected device as well as the splitter itself from damage due to electrical faults.

Technology Explained Simply

The PoE splitter works by receiving the incoming Ethernet signal with power (PoE-In) and splitting it into two separate components: the data signal (Data-Out) is transmitted via a separate Ethernet connection, while the electrical power is delivered via a dedicated power connection. The power supply is provided via a 24 V DC output, suitable for powering devices such as sensors, relays, or small control units. The power isolation ensures there is no electrical connection between the network and the power output, increasing safety. The short-circuit protection prevents damage to the splitter or the connected device in the event of a short circuit at the power output.

Compatibility and Accessories

The splitter is compatible with all devices supporting the IEEE 802.3af standard, i.e., standard PoE networks. Data transmission occurs in the 10/100/1000 Base-TX format, ensuring high speed and reliability.

Mounting and Installation

Mounting is either on a DIN rail or on a wall, allowing the splitter to be flexibly integrated into existing enclosures or mounted on walls in production environments. The housing is made of metal and offers an IP30 protection rating, protecting against ingress of solid foreign objects larger than 2.5 mm. Mounting requires no special tools, and the connections are standard.

Operational Advantages

The EKI-2701PSI-AE offers a wide operating temperature range from -40 to 75 °C, making it suitable for use in extreme environments. The combination of power and data splitting enables flexible use in industrial networks without the need to install additional power supplies. The integrated protection functions increase safety and extend the lifespan of the device and connected components. The compact design and DIN rail mounting facilitate integration into existing systems.

General
Degree of protectionIP30
Operating temperature range-40 to 75 °C
PoE standardIEEE 802.3af
Data transmission10/100/1000 Base-TX
Current output power12,95 W
Output voltage24 VDC
Mounting methodDIN rail/wall mounting
Housing materialMetal
Current isolationYes
Short-circuit protectionYes


Questions & answers

What is the delivery time of Advantech EKI-2701PSI-AE , PoE splitter?

The article Advantech EKI-2701PSI-AE , PoE splitter is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech EKI-2701PSI-AE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech EKI-2701PSI-AE , PoE splitter always at the best possible price. We can give you a discount of 2% on Advantech EKI-2701PSI-AE , PoE splitter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
