Advantech EKI-2701HPI-AE 802.3at Gigabit PoE Injector

Your rating:
Average rating
product review for Advantech EKI-2701HPI-AE 802.3at Gigabit PoE Injector
( 4.6 / 5 ) 84 ratings

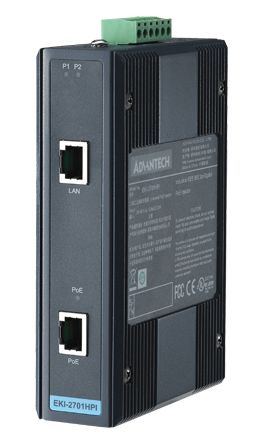

Advantech EKI-2701HPI-AE
This image may differ from the desired article.
157,40 EUR 157,40 EUR
( 187,30 EUR incl. VAT )
≈ £131.74  |  ≈ $172.98
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech EKI-2701HPI-AE 802.3at Gigabit PoE Injector
Lieske Part No.:314437
Mfg Part No: EKI-2701HPI-AE
Weight:0.5 kg

Product information for Advantech EKI-2701HPI-AE:

The Advantech EKI-2701HPI-AE is a Gigabit PoE+ injector designed for use in industrial and demanding environments. It enables power delivery and data transmission over a single Ethernet cable in accordance with the IEEE 802.3af/at standard, supporting a maximum power output of 30 W per port. The device is designed for operation in a wide temperature range of -40 to 75 °C, making it suitable for applications in extreme environments such as outdoor installations, cooling systems, or industrial production halls. Its compact design with DIN rail and wall mounting options, as well as an IP30 metal mechanism, ensures a robust and space-saving installation in enclosures or on walls.

Applications
The EKI-2701HPI-AE is particularly suitable for applications where multiple PoE-enabled end devices such as IP cameras, access points, or industrial sensors need to be powered over an existing network without requiring additional power supplies. The combination of Gigabit Ethernet support and PoE+ makes it ideal for high-performance devices requiring high data rates and sufficient power. Due to its wide operating temperature range, it is also suitable for locations with extreme climatic conditions, such as outdoor areas, cooling systems, or production environments with high heat generation.

Features and Specifications in Detail
The device features a power input range of 24 to 48 VDC, enabling flexible integration into existing power supply systems. The PoE+ injection is performed via a single port, which transmits both data (Data IN) and power (PoE+ OUT). The maximum output power is 30 W, complying fully with the IEEE 802.3at standard. Data transmission occurs in 10/100/1000Base-T(X) mode, enabling bandwidth up to 1 Gbit/s. The IP30 protection rating protects the device against mechanical impacts and offers some protection against solid foreign objects, but not against water or dust.

Technology Explained Simply
A PoE+ injector like the EKI-2701HPI-AE transmits power and data over the same Ethernet cable, eliminating the need for separate power cables. The IEEE 802.3af/at standards define how much power can be transmitted over the network cable, with the PoE+ variant (802.3at) allowing up to 30 W per port. This is sufficient to power high-performance devices such as IP surveillance cameras or industrial routers. The Gigabit Ethernet support ensures high data rates, which are crucial for time-critical applications. The operating temperature range of -40 to 75 °C allows use in environments that are often too extreme for standard IT devices.

Compatibility and Accessories
The injector is compatible with all devices supporting the IEEE 802.3af/at standard. It can be integrated into existing networks that have an Ethernet connection.

Mounting and Installation
The device can be mounted on a DIN rail or on a wall. The IP30 metal mechanism ensures robust mounting and provides some protection against mechanical damage. Installation involves connecting the power supply cable to the DC input and connecting the Ethernet cable to the PoE+ OUT port. The Data IN port is connected to the existing network. Mounting does not require special tools, although the use of an appropriate DC power supply is required.

Operational Advantages
The EKI-2701HPI-AE reduces the number of required cables by transmitting power and data over a single cable. The high operating temperature enables use in environments where standard IT devices would fail. The Gigabit support ensures high data rates, and the PoE+ power output of 30 W is sufficient to power high-performance end devices. The DIN rail mounting facilitates integration into existing enclosures.

General
Degree of protectionIP30
Operating temperature range-40 to 75 °C
Power input24 - 48 VDC
PoE+ output power30 W
Data transfer rate10/100/1000Base-T(X)
CompatibilityIEEE 802.3af/at
Mounting methodDIN rail and wall mounting
