Advantech EKI-2526PI-AE

Your rating:
Average rating
product review for Advantech EKI-2526PI-AE
( 4.5 / 5 ) 43 ratings

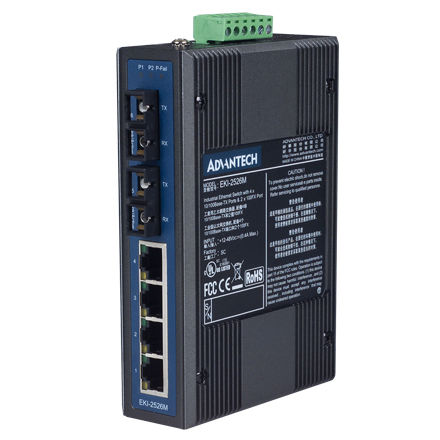

Advantech EKI-2526PI-AE
This image may differ from the desired article.
164,31 EUR 164,31 EUR
( 195,53 EUR incl. VAT )
≈ £137.52  |  ≈ $180.57
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech EKI-2526PI-AE
Lieske Part No.:299106
Mfg Part No: EKI-2526PI-AE
Weight:0.2 kg

Product information for Advantech EKI-2526PI-AE:

The Advantech EKI-2526PI-AE is a 6-port industrial switch with integrated PoE functionality, specifically developed for use in demanding industrial environments. The device offers a robust network connection with five to six Fast Ethernet ports, of which four are PoE ports with injector function. These enable power supply to PoE-compatible end devices such as IP cameras, access points or VoIP phones directly via the network cable, thereby simplifying installation and reducing the number of required power supplies. The PoE function is particularly advantageous in environments where separate power supply for network devices would be difficult or costly.

Applications

The switch is designed for use in industrial applications where high operating temperatures, mechanical stress or limited space are factors. It is suitable, for example, in production facilities, energy supply networks, transportation systems or building automation, where a reliable and low-maintenance network connection is required. The ability to operate at temperatures from -40 °C to +75 °C also makes it suitable for outdoor areas or rooms with extreme climatic conditions.

Functions and Equipment in Detail

The EKI-2526PI-AE supports a data transfer rate of 10/100 MBit/s with auto-negotiation, enabling automatic adaptation to the speed of the connected device. This ensures optimal performance and compatibility with various network end devices. An integrated network overload protection safeguards the device and connected devices from damage due to excessive data load. Additionally, the switch is equipped with Ethernet ESD protection, which protects it from electrostatic discharges that may occur during handling or operation.

Technology Explained Simply

PoE technology (Power over Ethernet) enables power supply via the existing network cable, eliminating the need for separate power lines. The injector function of the PoE ports ensures that power supply occurs directly at the switch, without requiring an external PoE injector. The operating voltage of 48 VDC is redundantly supplied via two inputs, increasing reliability. A P-Fail relay signals in the event of a power failure or voltage disturbance, enabling a response or alarm.

Compatibility and Accessories

The switch is designed for mounting on DIN rails or on walls, allowing flexible installation in enclosures or on walls. The housing is made of metal and offers an IP30 protection rating, protecting against entry of solid foreign objects larger than 2.5 mm. However, it is not waterproof and not suitable for direct outdoor use if rain or splashing water is possible. Compatibility with PoE-compatible end devices is ensured as long as these meet PoE standard requirements.

Mounting and Installation

Mounting is done either on a DIN rail or on a wall, with the robust metal housing enabling stable fixation. The connections are clearly labeled, and power supply is via the designated 48 VDC inputs. Installation does not require special tools, but proper cabling and secure mounting are necessary to ensure functionality and safety.

Advantages in Operation

The operating temperature range of -40 °C to +75 °C enables broad applicability under various climatic conditions. The redundant power supply increases network availability, and the integrated PoE function reduces installation complexity. The network overload protection and ESD protection contribute to the longevity and reliability of the device. DIN rail mounting allows easy integration into existing enclosures.

General
Number of ports6
PoE ports4
PoE functionInjector function
Data rate10/100 Mbit/s
Degree of protectionIP30
Mounting methodDIN rail/wall mounting
Current supply48 VDC
Operating temperature range-40 to +75 °C
Auto-negotiationYes
Network overload protectionYes
ESD protectionYes
redundant power supplyYes
P-Fail relayYes
