Advantech ADAM-5060-AE

Your rating:
Average rating
product review for Advantech ADAM-5060-AE
( 4.5 / 5 ) 23 ratings

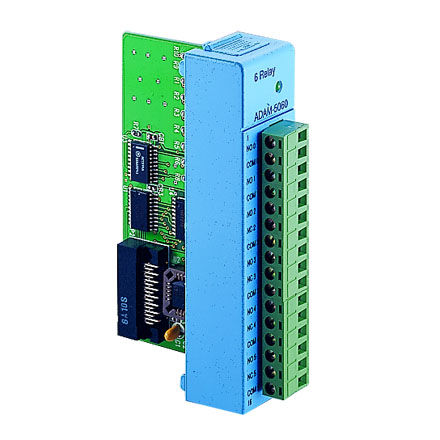

Advantech ADAM-5060-AE
This image may differ from the desired article.
59,74 EUR
( 71,09 EUR incl. VAT )
≈ £49.76  |  ≈ $65.54
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech ADAM-5060-AE
Lieske Part No.:933084
Mfg Part No: ADAM-5060-AE
Weight:0.2 kg

Product information for Advantech ADAM-5060-AE:

The ADAM-5060-AE from Advantech is an industrial relay module designed for controlling and monitoring electrical loads in automation systems. It serves as an interface between control devices and external equipment by converting digital signals into physical switching operations. The module is designed for use in demanding industrial environments where reliability and high switching capacity are required.

Applications
This module is suitable for applications in industrial automation, such as manufacturing control, building automation, or process monitoring. It can be used to control motors, heaters, lighting systems, or other electrical loads that are operated via digital inputs. The combination of Form A and Form C channels enables flexible switching configurations, with Form C contacts (changeover) being suitable for complex switching operations involving two separate switching states.

Functions and Features in Detail
The ADAM-5060-AE features a total of six relay channels: two channels with Form A (make) and four channels with Form C (changeover). This configuration allows for differentiated control of various loads. The switching capacity is 125 V AC at 0.6 A and 250 V AC at 0.3 A, which is sufficient for controlling many industrial devices. The relay off-time is typically 1 ms, the on-time is 3 ms, resulting in a total switching time of 10 ms. These values are relevant for applications requiring fast response times.

Technology Explained Simply
The insulation resistance values of at least 1000 MΩ at 500 VDC ensure high electrical insulation between contacts and the housing, increasing the safety and reliability of the module. The breakdown voltage of 500 VAC (50/60 Hz) indicates the maximum voltage the module can withstand without damage, which is important for use in electrically demanding environments. The relays are designed to offer long service life even under frequent switching operations.

Compatibility and Accessories
The module is part of Advantech’s ADAM product family and can be integrated into existing eAutomation systems. It is designed for use with other ADAM modules and control devices that feature compatible interfaces. Exact compatibility depends on the control platform used, with ADAM-5060-AE module types typically employed in systems with modular buses or serial interfaces.

Mounting and Installation
The module is installed in standard 19-inch rack systems or in special mounting enclosures. Installation involves mechanical fastening and electrical connections to the corresponding contacts. Mounting does not require special tools, but proper wiring is essential to ensure functionality and safety.

Advantages in Operation
The combination of Form A and Form C channels offers flexibility in switching configuration. The short switching times enable fast response to control commands, which is beneficial for time-critical applications. The high insulation resistance values and breakdown voltage ensure safe and reliable operation even under high electrical loads.

General
Breakdown voltage500 VAC
Channels2 x Form A, 4 x Form C
Switching power125 V @ 0,6 A; 250 V @ 0,3 A AC
Insulation resistance1000 MΩ
Relay release time (typical)1 ms
Relay switching time (typical)3 ms
Total switching time10 ms


Questions & answers

What is the delivery time of Advantech ADAM-5060-AE ?

The article Advantech ADAM-5060-AE is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech ADAM-5060-AE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech ADAM-5060-AE always at the best possible price. We can give you a discount of 2% on Advantech ADAM-5060-AE if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
