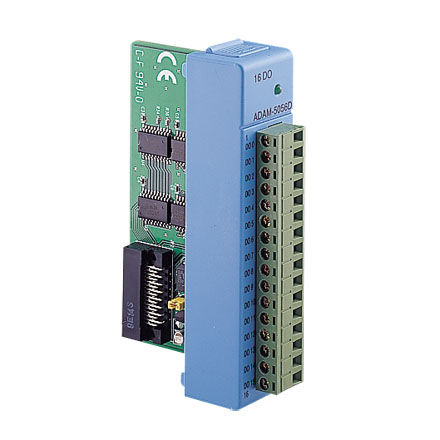

Advantech ADAM-5056D-AE
|
53,57 EUR |
|
|
( 63,75 EUR incl. VAT ) ≈ £44.62 | ≈ $58.77 plus delivery charges: 55,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 331566 |
|---|---|
| Mfg Part No: | ADAM-5056D-AE |
| Weight: | 0.2 kg |
Product information for Advantech ADAM-5056D-AE:
Applications
This module is suitable for use in industrial automation systems, particularly in applications requiring a high number of digital outputs, such as in manufacturing, packaging technology, or machine control. The Open-Collector outputs allow control of loads up to 30 V and 100 mA, which is sufficient for many standard applications. The Hold function ensures that the output status is maintained even if the control signals are interrupted, which can be important in critical processes.
Functions and Features in Detail
Each of the 16 channels features an LED indicator that visually displays the current output status. The indicator lights up when the logic level "2,5 cm ( 1 inch ) is active, enabling the user to quickly check signal states. The outputs are rated for a maximum operating voltage of 30 V, with a maximum load current of 100 mA. The Hold function maintains the last output status when no new control signal is received, enhancing process safety.
Technology Explained Simply
The Open-Collector outputs operate as open-collector circuits, enabling external loads to be driven with voltages up to 30 V and currents up to 100 mA. This technology is particularly useful when the load requires a different voltage than the module, as the external power supply can be connected directly to the load. The total power dissipation is 300 mW when all channels are active, indicating efficient energy use. The typical power consumption is 0.5 W, with a maximum of 0.84 W, highlighting the module’s energy efficiency.
Compatibility and Accessories
The module is part of Advantech’s ADAM-5000 series and can be used in combination with other modules from this series to create comprehensive automation solutions. It is designed for integration into existing control systems and can be accessed via appropriate interfaces. Exact compatibility depends on the control platform used, but the ADAM-5000 series is generally interoperable with various industrial control systems.
Mounting and Installation
Mounting is typically done in standard 19-inch rack systems or in enclosures with DIN rails. Wiring is done via the designated terminal clamps, ensuring that the maximum operating voltage of 30 V and maximum load current of 100 mA are not exceeded.
Operational Advantages
The combination of 16 channels, Open-Collector outputs, and the Hold function provides high flexibility and reliability in industrial automation. The LED indicators simplify diagnosis and maintenance, as the status of individual outputs is directly visible. The low power dissipation and low power consumption contribute to efficient operation, which is particularly beneficial in systems with high energy consumption. The module is designed for industrial environments and meets requirements for reliability and longevity.
Protection Rating and Environmental Conditions
The operating voltage of 30 V max. and the specified current values are suitable for typical industrial applications.
Accessories and Alternatives
Compatibility with other modules in the ADAM-5000 series is provided, enabling system functionality expansion. The exact selection depends on the specific application requirements.
Scope of Delivery
Only the ADAM-5056D-AE module is described.
Conclusion
The ADAM-5056D-AE is a powerful and reliable digital output module for industrial applications. With 16 Open-Collector outputs, clear LED indicators, and the Hold function, it offers flexible and secure control of peripheral devices. The low power dissipation and low power consumption make it an energy-efficient solution. Integration into existing ADAM-5000 series systems is straightforward, enhancing the scalability of automation solutions.
| General | |
| Number of channels | 16 |
| Digital output | Open-Collector |
| Maximum operating voltage | 30 V |
| Maximum load current | 100 mA |
| LED indicator | On: Output logic level "1" |
| Power consumption typical | 0,5 W |
| Maximum power consumption | 0,84 W |
| Power dissipation (all channels) | 300 mW |
| Output status hold function | |
