Advantech ADAM-5051D-AE

Your rating:
Average rating
product review for Advantech ADAM-5051D-AE
( 4.6 / 5 ) 19 ratings

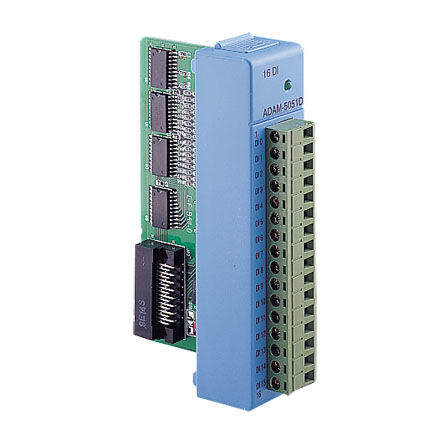

Advantech ADAM-5051D-AE
This image may differ from the desired article.
63,64 EUR 63,64 EUR
( 75,73 EUR incl. VAT )
≈ £53.01  |  ≈ $69.81
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech ADAM-5051D-AE
Lieske Part No.:125239
Mfg Part No: ADAM-5051D-AE
Weight:0.2 kg

Product information for Advantech ADAM-5051D-AE:

The ADAM-5051D-AE from Advantech is an industrial digital input module designed for integration into automated control systems. It is used for capturing digital signals from various sensors or switches in industrial environments and enables the transmission of this data over a network. The module features 16 channels, each supporting a digital input and suitable for monitoring switch states such as relays, pushbuttons, or limit switches. The circuit is implemented as a pull-up type, with a current of 0.5 mA flowing, which is typical for source-type circuits. The maximum input voltage is 30 V, enabling use with a wide range of standard signal sources in industrial applications. An integrated LED indicator displays the status of each channel visually, simplifying diagnosis and maintenance. The maximum power consumption of the module is 0.84 W, ensuring energy-efficient operation.

Applications

The module is intended for use in industrial automation environments, particularly in systems requiring decentralized signal acquisition. Typical application fields include machine controls, manufacturing plants, building automation, and process monitoring systems. Its robust construction and specific electrical characteristics make it suitable for environments with electrical interference or varying operating conditions. The 16 channels allow simultaneous acquisition of multiple signals, reducing the number of modules required in a system and simplifying system architecture.

Functions and Equipment in Detail

Each of the 16 channels is designed as a digital input and can capture a switch state (High/Low). The circuit is implemented as a pull-up type, meaning the input is pulled to a high potential via a resistor in the resting state. This state is interrupted by an external switch or sensor, causing the input to switch to low potential. The 0.5 mA current is designed for operational safety and signal stability. The LED indicator per channel allows direct visual monitoring of the status, which is helpful during commissioning and maintenance. The maximum input voltage of 30 V covers most industrial applications where voltages such as 24 V DC or 12 V DC are used.

Technology Explained Simply

The technology of the ADAM-5051D-AE is based on capturing digital signals that appear in the form of electrical voltage levels. The pull-up circuit ensures that the input is held at a high level (High) in the default state. When an external switch or sensor is activated, the level is pulled to Low, which is recognized as a signal change. The integrated LED indicator visualizes this state, allowing the operator to immediately see whether a channel is active. The low power consumption of 0.84 W maximizes efficiency and reduces thermal stress on the module. The input voltage of up to 30 V allows use with various standard signal sources without requiring additional voltage converters or adapters.

Compatibility and Accessories

The module is designed for use in eAutomation systems from Advantech and can be used in combination with other ADAM modules and control systems. It is part of the ADAM-5000 series, developed for modular, decentralized automation solutions. Compatibility with standard network protocols enables integration into existing IT infrastructures.

Mounting and Installation

Mounting is typically done in an industrial enclosure or control box. The module is designed for mounting on a DIN rail, enabling standardized and secure fixation. Electrical connections are made via the designated terminal clamps, with input signals connected to the corresponding channels. The network connection is established using a standard network cable, with exact cabling specifications to be found in the manufacturer’s technical documentation. Installation does not require special tools, but compliance with electrical safety regulations and mounting instructions is mandatory.

Advantages in Operation

Operation of the ADAM-5051D-AE is characterized by high reliability and easy maintenance. The integrated LED indicator enables quick diagnosis of signal states, making fault finding and system monitoring more efficient. The low power consumption of 0.84 W reduces operating costs and thermal stress. The 16 channels offer high input density per module, reducing the number of modules required in a system and simplifying system architecture. Compatibility with standard network protocols and integration into eAutomation systems enable a flexible and scalable automation solution.

Protection Rating

The protection rating is not available and is therefore not mentioned in the text.

Operating Voltage

The input voltage is a maximum of 30 V, referring to the signal inputs, not the module’s supply voltage.

Scope of Delivery

It is not explicitly stated whether the module is delivered with cables, terminal clamps, documentation, or other components. No accessories are included in the delivery scope.

General
Channels16
Circuit typePull-Up current: 0.5 mA (source type)
Input voltage30 Vmax.
Power consumption0,84 W (max.)
LED indicatorJa


Questions & answers

What is the delivery time of Advantech ADAM-5051D-AE ?

The article Advantech ADAM-5051D-AE is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech ADAM-5051D-AE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech ADAM-5051D-AE always at the best possible price. We can give you a discount of 2% on Advantech ADAM-5051D-AE if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
