Product information for Advantech ADAM-4520-EE:

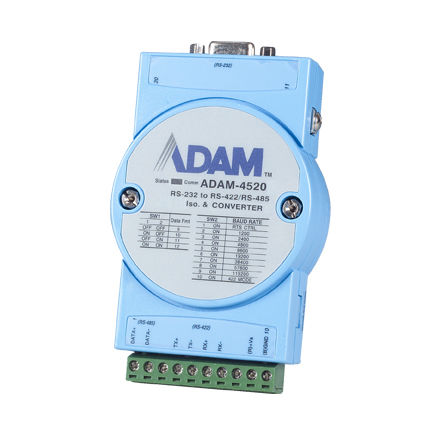

The ADAM-4520-EE from Advantech is an industrial RS-232 to RS-422/485 converter used for secure and reliable data transmission in industrial environments. It serves as an interface converter to connect devices with RS-232 interfaces to RS-422/RS-485 networks, which are preferred in automation and industrial communication due to their higher noise immunity and longer transmission distances. The device is designed for demanding environments and offers high electrical isolation as well as protection functions against overvoltage.
Applications
The ADAM-4520-EE is used in industrial control and monitoring systems where stable and noise-resistant data communication is required. Typical applications include connecting PC systems, PLCs, sensors, or other devices with RS-232 interfaces to RS-485 networks, for example in manufacturing automation, power supply, or building automation. The maximum range of up to 1200 meters allows connection over long distances without additional amplifiers.
Functions and Features in Detail
The device features automatic RS-485 data flow control, which detects and controls the correct data direction in the network without requiring manual switching between transmit and receive modes. This simplifies integration into existing systems. The integrated 3000 VDC isolation protection safeguards connected devices against electrical disturbances and potential differences, which is especially important in industrial installations. The RS-485 data line is equipped with overvoltage protection to protect the device from transient voltage spikes caused by lightning or electrical discharges.
Technology Explained Simply
The transmission speed is up to 115.2 kBit/s, which is sufficient for many industrial applications, especially when data volume is moderate and connection stability is prioritized. Power supply is via +10 to +30 VDC, allowing flexible connection to various industrial power sources. The integrated power and data flow indicators facilitate troubleshooting, as they visually show whether the device is receiving power and whether data is being transmitted. This is particularly useful during commissioning or diagnosing communication issues.
Compatibility and Accessories
The ADAM-4520-EE is compatible with RS-232 and RS-485 systems and can be integrated into existing networks. The free placement for termination resistors allows flexible adaptation to specific network conditions, especially for longer cables where a termination resistor is required to prevent signal reflections. The device can be easily mounted on DIN rail, panel, or as a plug-in module, enabling flexible installation in enclosures or on panels.
Mounting and Installation
Mounting is done via DIN rail, ensuring standardized and secure fastening in industrial enclosures. Alternatively, the device can be mounted directly on a panel or used as a plug-in module, depending on installation requirements. Connections are clearly labeled, and power supply is via a separate connector, keeping wiring clear and organized.
Advantages in Operation
Operation of the ADAM-4520-EE is particularly reliable due to its robust construction and integrated protection functions. The automatic data flow control reduces network configuration complexity, and the visual indicators simplify maintenance. The high isolation strength and overvoltage protection increase the device’s lifespan and protect connected systems from damage. The flexible mounting options and wide voltage supply range expand its application possibilities in various industrial environments.
Applications
The ADAM-4520-EE is used in industrial control and monitoring systems where stable and noise-resistant data communication is required. Typical applications include connecting PC systems, PLCs, sensors, or other devices with RS-232 interfaces to RS-485 networks, for example in manufacturing automation, power supply, or building automation. The maximum range of up to 1200 meters allows connection over long distances without additional amplifiers.
Functions and Features in Detail
The device features automatic RS-485 data flow control, which detects and controls the correct data direction in the network without requiring manual switching between transmit and receive modes. This simplifies integration into existing systems. The integrated 3000 VDC isolation protection safeguards connected devices against electrical disturbances and potential differences, which is especially important in industrial installations. The RS-485 data line is equipped with overvoltage protection to protect the device from transient voltage spikes caused by lightning or electrical discharges.
Technology Explained Simply
The transmission speed is up to 115.2 kBit/s, which is sufficient for many industrial applications, especially when data volume is moderate and connection stability is prioritized. Power supply is via +10 to +30 VDC, allowing flexible connection to various industrial power sources. The integrated power and data flow indicators facilitate troubleshooting, as they visually show whether the device is receiving power and whether data is being transmitted. This is particularly useful during commissioning or diagnosing communication issues.
Compatibility and Accessories
The ADAM-4520-EE is compatible with RS-232 and RS-485 systems and can be integrated into existing networks. The free placement for termination resistors allows flexible adaptation to specific network conditions, especially for longer cables where a termination resistor is required to prevent signal reflections. The device can be easily mounted on DIN rail, panel, or as a plug-in module, enabling flexible installation in enclosures or on panels.
Mounting and Installation
Mounting is done via DIN rail, ensuring standardized and secure fastening in industrial enclosures. Alternatively, the device can be mounted directly on a panel or used as a plug-in module, depending on installation requirements. Connections are clearly labeled, and power supply is via a separate connector, keeping wiring clear and organized.
Advantages in Operation
Operation of the ADAM-4520-EE is particularly reliable due to its robust construction and integrated protection functions. The automatic data flow control reduces network configuration complexity, and the visual indicators simplify maintenance. The high isolation strength and overvoltage protection increase the device’s lifespan and protect connected systems from damage. The flexible mounting options and wide voltage supply range expand its application possibilities in various industrial environments.
| General | |
| Insulation protection | 3000 VDC |
| Network range | 1200 m |
