Advantech ADAM-4068-BE

Your rating:
Average rating
product review for Advantech ADAM-4068-BE
( 4.5 / 5 ) 25 ratings

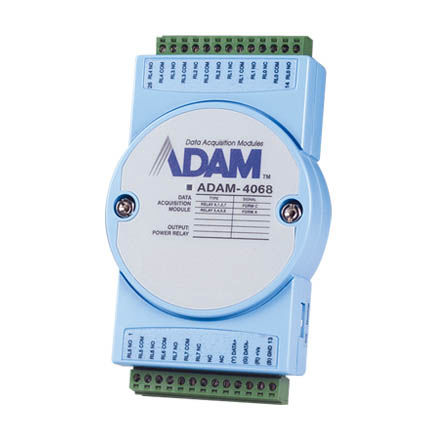

Advantech ADAM-4068-BE
This image may differ from the desired article.
106,45 EUR 106,45 EUR
( 126,67 EUR incl. VAT )
≈ £88.67  |  ≈ $116.77
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech ADAM-4068-BE
Lieske Part No.:550236
Mfg Part No: ADAM-4068-BE
Weight:0.2 kg

Product information for Advantech ADAM-4068-BE:

The ADAM-4068-BE from Advantech is an 8-channel relay output module designed for integration into industrial automation systems. It serves as an interface for controlling external devices and machines via electrical relays, with each channel being independently switchable. The module supports the Modbus/RTU protocol, enabling integration into existing networks and control systems. The outputs are configured as C-type (Common), allowing selection of either Normally Open (NO) or Normally Closed (NC) configuration depending on the application. This provides flexible adaptation to different loads and switching logics in manufacturing, building automation, or process control.

Applications
This module is suitable for applications requiring conversion of digital control signals into mechanical switching operations. Typical use cases include controlling pumps, valves, lighting systems, motors, or alarm systems in industrial environments. Support for the Modbus/RTU protocol enables communication with PLCs, SCADA systems, or other control devices using Modbus. The module design is intended for use in enclosures or industrial control systems.

Functions and Features in Detail
The ADAM-4068-BE features eight independent relay outputs, each configurable as NO/NC. This offers flexibility in driving various load types. The switching capacity is 125 V AC at 0.6 A and 250 V AC at 0.3 A, and 30 V DC at 2 A and 110 V DC at 0.6 A. These values define the maximum loads the module can switch safely without damage. The relay turn-on time is typically 3 ms, and the turn-off time is 1 ms, ensuring fast response to control signals. Integrated LED indicators show the status of each channel, facilitating diagnosis and maintenance during operation.

Technology Explained Simply
The relay outputs function as electrical switches activated by a control signal. The module receives digital commands via the Modbus/RTU protocol, which triggers the respective relays to turn on or off. Switching capacity refers to the maximum electrical load the relay can switch safely. The term “NO/NC selectable” means the contact can be configured as Normally Open (closes when energized) or Normally Closed (opens when energized) as needed. The LED indicators provide visual feedback on whether a channel is active or not. Switching times of 3 ms (on) and 1 ms (off) are typical for industrial relays and ensure rapid response without delay.

Compatibility and Accessories
The module is designed for use in systems supporting the Modbus/RTU protocol. It can be combined with other ADAM modules or control devices using Modbus/RTU. Use in industrial environments requires appropriate power supply and mechanical mounting in an enclosure.

Mounting and Installation
Connections for relay outputs and communication interface are made via terminals or connectors, which are not further detailed in the datasheet. Installation requires connecting the outputs to the devices to be controlled and establishing communication with a Modbus-compatible control device. The LED indicators facilitate function verification during commissioning.

Operational Advantages
The combination of 8 independent relay outputs, selectable NO/NC logic, and Modbus/RTU communication offers high flexibility in system design. The LED indicators enable quick status checks, simplifying maintenance and troubleshooting. The switching capacity is suitable for typical industrial loads, and the short switching times ensure reliable response to control signals.

General
Number of channels8
I/O typeC (NO/NC selectable)
AC switching power125 V @ 0,6 A; 250 V @ 0,3 A
Switching power DC30 V @ 2 A; 110 V @ 0,6 A
Relay switching-on time3 ms
Relay switching time1 ms
Supported protocolModbus/RTU
LED indicatorsYes


Questions & answers

What is the delivery time of Advantech ADAM-4068-BE ?

The article Advantech ADAM-4068-BE is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech ADAM-4068-BE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech ADAM-4068-BE always at the best possible price. We can give you a discount of 2% on Advantech ADAM-4068-BE if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
