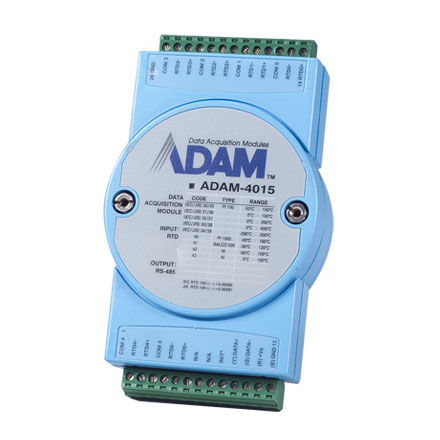

Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS

Your rating:
Average rating
product review for Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS
( 4.4 / 5 ) 33 ratings
220,31 EUR 220,31 EUR
( 262,17 EUR incl. VAT )
≈ £183.52  |  ≈ $241.68
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS
Lieske Part No.:108570
Mfg Part No: ADAM-4015-CE
Weight:0.123 kg

Product information for Advantech ADAM-4015-CE:

The ADAM-4015-CE from Advantech is a 6-channel RTD input module specifically developed for industrial automation. It is designed for the acquisition and processing of temperature values via RTD sensors, with each channel individually configurable for different input types. The module supports common RTD types including Pt100, Pt1000, Balco500, and Ni, enabling flexible use across various applications. Communication is via Modbus, facilitating integration into existing control and monitoring systems. The inputs are configurable for 2- or 3-wire connection, allowing adaptation to different sensor arrangements.

Applications
This module is designed for industrial applications requiring precise temperature measurement, such as in process industries, manufacturing technology, or power generation. It is suitable for systems where multiple temperature points must be monitored simultaneously, for example in heating, cooling systems, or machine component monitoring. The ability to support different RTD types per channel increases flexibility in selecting appropriate sensors.

Functions and Features in Detail
Each of the six channels can be independently configured to process different RTD types such as Pt100, Pt1000, Balco500, or Ni. This enables targeted adaptation to the specific requirements of each measurement point. The cable break detection function ensures that a broken or faulty sensor connection is detected and reported, enhancing the reliability of measurement data. The logical isolation between A/D conversion and the logic side is 3000 VDC, providing high immunity to interference and protection against voltage surges.

Technology Explained Simply
The RTD inputs capture temperature values via resistance thermometers, whose resistance changes with temperature. The module converts these resistance changes into digital signals transmitted via Modbus. The 2- or 3-wire connection option accommodates different installation scenarios, with the 3-wire variant enabling higher accuracy by compensating for lead wire resistance. The 3000 VDC logical isolation protects internal circuits from electrical interference and voltage surges caused by external influences or other devices in the network.

Compatibility and Accessories
The module is designed for use in Modbus-compatible systems and can be connected to other ADAM modules or control devices supporting Modbus. It is part of Advantech’s eAutomation platform and can be integrated into existing automation architectures.

Mounting and Installation
Mounting is done on standard DIN rails, enabling easy installation in enclosures. Connections for RTD sensors are made via designated terminals, with channel configuration performed via Modbus communication. No special tools or additional components are required to put the module into operation.

Operational Advantages
The individual channel configurability enables flexible use, even when different sensor types are used in the system. Cable break detection enhances operational safety by quickly identifying malfunctions. The high isolation strength of 3000 VDC protects the module from electrical interference, which is particularly important in industrial environments with high electromagnetic compatibility. Modbus communication ensures standardization, simplifying integration into existing systems.

General
Number of channels6
Input typeRTD
Supported RTD typesPt100, Pt1000, Balco500, Ni
Cable connection2- or 3-wire
Channel configurationindividual
Insulation strength A/D3000 VDC
Communications protocolModbus
Cable break detectionYes


Questions & answers

What is the delivery time of Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS?

The article Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Advantech ADAM-4015-CE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS always at the best possible price. We can give you a discount of 2% on Advantech ADAM-4015-CE - 6-channel RTD input module MODBUS if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
