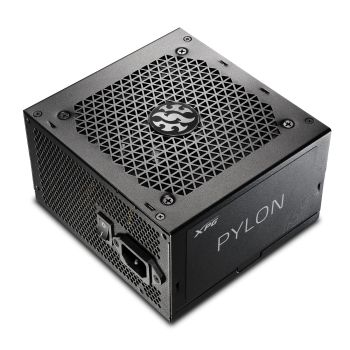

Adata 75261508
Netzteil XPG PYLON 750 (750 W/ATX 2.4) 80+ Bronze retail
|
51,42 EUR |
|
|
( 61,19 EUR incl. VAT ) ≈ £43.09 | ≈ $57.74 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1108271 |
|---|---|
| Mfg Part No: | 75261508 |
| UPC/EAN: | 4710273776965 |
| Weight: | 2.073 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
| On/off switch | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package weight | 2.63 kg |
| Performance | |
| 80 PLUS certification | 80 PLUS Silver |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | |
| ATX Power connector (24-pin) | |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Technical details | |
| Sustainability certificates | ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.12 kg |
