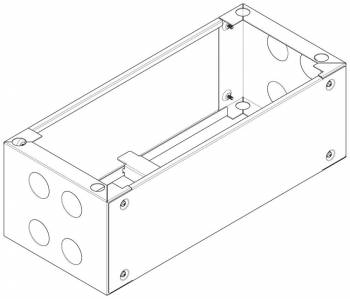

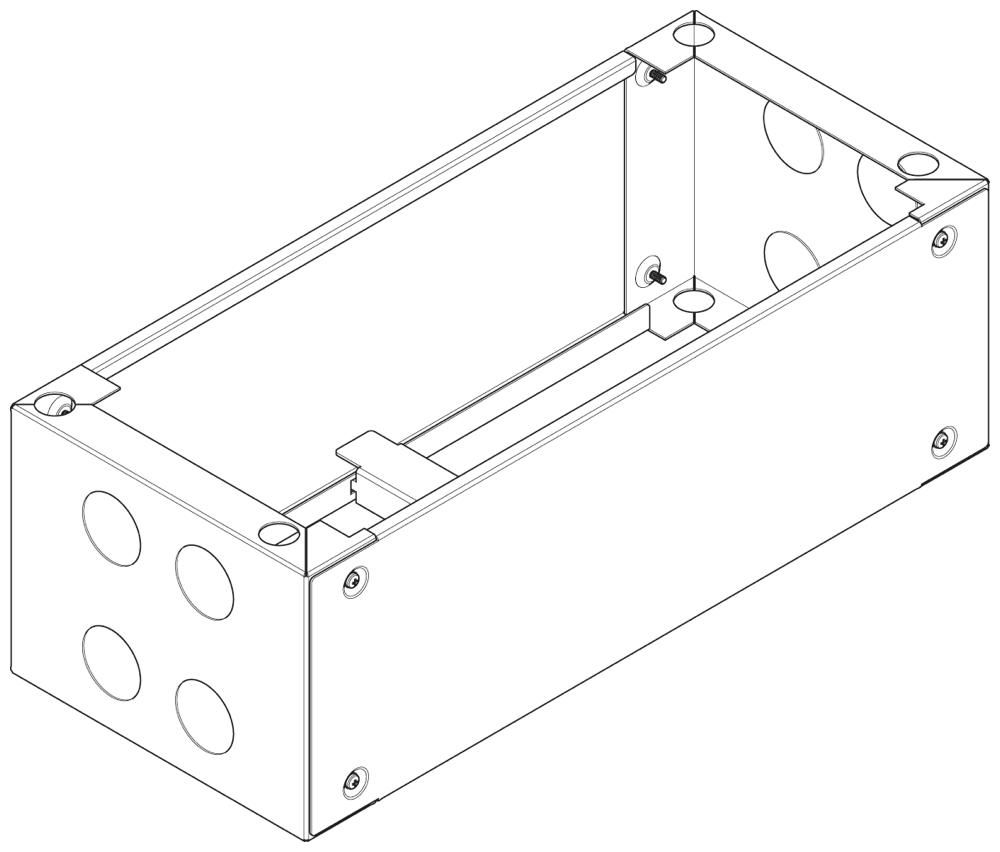

ABN UF220
Pedestal RAL7022, W / H / D = 590/200/280mm content_copy

Base 200mm, External dimensions WxHxD (mm) 590 x90 x260, Width 2, Base, Protection class II (NF, P series), Protection class I (NF, E series), Protection type: IP55 (only in conjunction with cable entry plates), For devices up to 800?A, Floor mounting with external fastening, Widths: 340, 590, 840, 1090, 1340?mm, Height: 1890?mm without base, Depth: 280?mm, Colour: RAL 9016 (traffic white), Space units: 144 to 720, Material: 1.5mm (doors 2mm) sheet steel, powder-coated, Pre-punched on both sides for housing connections M6 and screw connection M50, Cable entry plates of your choice with metric pre-punched, Membrane flange or Foam rubber plate, Can be combined horizontally and vertically, Door Surface-mounted, right or left, Can be hinged with an opening angle of 180°, 3 mm double-bit lock with 3-point rod lock, Prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including, Support frame bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, Support frame brackets are included as follows:, Field width 1 and 2 (340mm and 590mm) - 1 set, Field width 3 and 4 (840mm and 1090mm) - 2 sets, Field width 5 (1340mm) - 3 sets,
