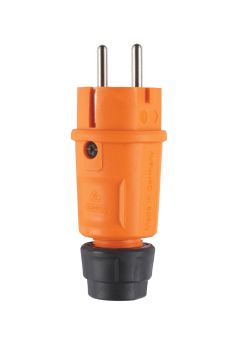

Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520

Your rating:
Average rating
product review for Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520
( 4.5 / 5 ) 2 ratings
Abl Sursum 100000067
This image may differ from the desired article.
105,26 EUR
( 125,26 EUR incl. VAT )
≈ £87.68  |  ≈ $115.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520
Lieske Part No.:682645
Mfg Part No: 100000067
UPC/EAN: 4011721188966
Weight:0.687 kg
Type:100000067
Graduated prices net
From piecesPrice per pieces
595,00 EUR
1084,73 EUR
1574,47 EUR
2064,21 EUR

Product information for Abl Sursum 100000067:

The Abl Sursum Hightech plug type 100000067 is a robust connecting element for use under demanding conditions. It features a double earthing system that complies with both the German SCHUKO standard and the French-Belgian standard. The plug is made of Elamid, a high-quality thermoplastic material known for its mechanical strength and weather resistance. Manufactured in Germany, it indicates high production quality. It is specifically designed for applications involving high mechanical loads, moisture, or dampness, such as construction sites or agricultural operations.

Applications

The plug is suitable for use in dry, damp, and wet rooms as well as outdoors. It is particularly used in environments with high mechanical stress, such as in industry, construction, or agriculture. The IP54 protection rating ensures protection against splashing water from any direction, making it suitable for outdoor use as well. The load capacity of up to one tonne, indicated by the hammer symbol, makes it a reliable solution for heavily loaded applications.

Functions and Equipment in Detail

The plug features a cable kink protection and cable sealing, ensuring a durable and secure connection. The screwed seal with self-loosening protection prevents unintended loosening of the seal, enhancing long-term stability. The large connection space allows the use of cables up to 2.5 mm², making it compatible with a wide range of cable types. The permissible cable diameter is 6 to 12 mm, enabling flexible adaptation to various cable diameters.

Technology Explained Simply

The IP54 protection rating means the plug is dust-protected and protected against splashing water from any direction. This makes it suitable for outdoor use or in damp indoor environments. The double earthing system ensures a safe electrical connection according to both standards, increasing compatibility with various sockets. The non-removable cap fastening screw prevents screws from being lost during installation. The open connection screws and the ability to tighten all screws from one direction using a single screwdriver simplify installation and reduce mounting effort.

Compatibility and Accessories

The plug is compatible with cables up to 2.5 mm² cross-section and a diameter of 6 to 12 mm. It is designed for use with SCHUKO and French-Belgian sockets, enabling broad applicability in various regions. The use of Elamid as material ensures high mechanical strength and weather resistance, extending the plug’s service life.

Mounting and Installation

Installation is carried out by simply connecting the wires to the open connection screws. The non-removable cap fastening screw ensures no screws are lost. All screws can be tightened from one direction using a single screwdriver, reducing installation time and minimizing error potential. The screwed seal with self-loosening protection ensures a permanent seal, even under vibration or mechanical stress.

Operational Advantages

The plug offers high mechanical load capacity of up to one tonne, making it suitable for heavy-duty applications. The IP54 protection rating protects against splashing water and dust, increasing reliability in damp or wet environments. The cable sealing and cable kink protection prevent cable damage and ensure a secure, durable connection. The simple installation via open screws and the use of a single screwdriver reduces installation effort and increases efficiency during installation.

The item price shown refers to 10 pieces Abl Sursum 100000067
General
Degree of protectionIP54
Earthing systemdual earthing system according to SCHUKO and French-Belgian standard
MaterialElamid
Load capacityup to 1 tonne
Cable cross-sectionup to 2.5 mm²
Cable diameter6 - 12 mm
Connection typeopen terminal screws
Mounting screwnon-removable
Mountingfrom one direction with a single screwdriver
Place of manufactureMade in Germany
Cable strain reliefYes
Cable glandYes


Questions & answers

What is the delivery time of Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520?

The article Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Abl Sursum 100000067 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520 always at the best possible price. We can give you a discount of 2% on Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520 we can offer you a price of 95,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Abl Sursum 100000067 Hightech plug SCHUKO & fr-be Elamid orange IP54 type 1520 is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
