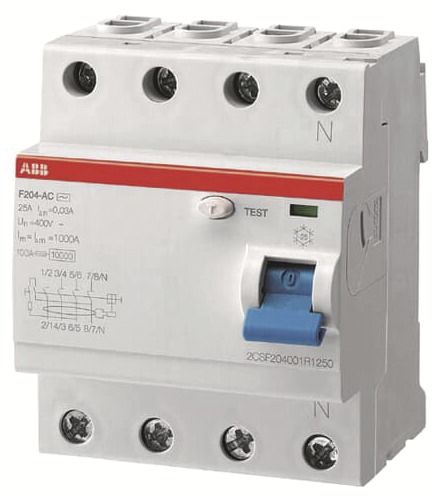

ABB Automation 2CSF204197R1250 F204 A-25/0,03 400Hz Res. Current Dev. content_copy

F200 Type A (50...400 Hz) for special frequencies, e.g. in industrial networks 200 Hz, 400 Hz
residual current circuit breakers (RCCBs) offer protection for people and property as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The residual current circuit breakers of the F200 series guarantee protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA to earth. They meet the product standards IEC/EN 61008-1, 61008-2-1, 61543.
Areas of application are commercial and industrial applications, e.g. in industrial networks with 200 Hz or 400 Hz. The extensive range of accessories offers you everything you need for your installation tasks. Advantages: Increasing the frequency increases the magnetic resistance of the toroidal current transformer of standard RCCBs. As a result, the value of the rising operating fault current at 400 Hz reaches values that are three times or several times higher than the values of the fault current at 50 Hz. The RCCB F200 400 Hz guarantees fault protection (protection against indirect contact), additional protection (with I¿n = 30 mA), considering that the operating fault current does not increase with the network frequency.

General
Number of poles	4
Rated current	25
Rated impulse withstand voltage Uimp	4
Mounting method	DIN rail
Leakage current type	A
Frequency	50/60 Hz
Degree of protection (IP)	IP20
Width in number of modular spacings	4
Built-in depth	69
Ambient temperature during operating	55
Pollution degree	2
Connectable conductor cross section multi-wired	25
Connectable conductor cross section solid-core	25
Depth of device	69
Height of device	85
RAL-number (akin)	7035
Width of device	70
Selective protection
Short-time delayed tripping
Additional equipment possible
With interlocking device
Explosion-proof

---
