3M Scotchlok(TM) UY 0.4-0.7mm grease filling

Your rating:
Average rating
product review for 3M Scotchlok(TM) UY 0.4-0.7mm grease filling
( 0 / 5 ) 0 ratings
3M UY
This image may differ from the desired article.
13,51 EUR
( 16,08 EUR incl. VAT )
≈ £11.25  |  ≈ $14.82
plus delivery charges: 55,00 €
in stockinfo_outline
1x 3M Scotchlok(TM) UY 0.4-0.7mm grease filling
End-Of-Life: 11. Sep 2026
Datasheet:file_download Download
Lieske Part No.:394707
Mfg Part No: UY
Weight:0.123 kg

Product information for 3M UY:

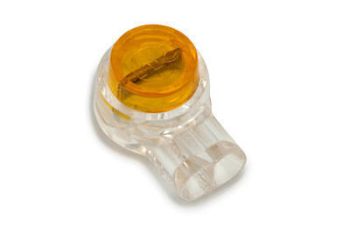

The 3M Scotchlok UY is a grease-filled wire connector, specifically developed for secure and durable connection of electrical wires. It is used in the electrical and installation industry to connect two or three individual wires with a diameter of 0.4 to 0.7 mm. The construction is based on proven cutting-clamp contacts, ensuring a reliable electrical connection. The grease filling inside the connector provides additional protection against moisture and prevents corrosion, increasing the lifespan of the connection and ensuring reliability in operation.

Applications
The connector is suitable for applications requiring a compact and robust connection. Due to its small dimensions, it reduces the overall diameter of the connection bundle, which is particularly advantageous in tight installation situations. It is frequently used in electrical installation, machine building, and automation technology, where a durable and resilient connection of wires is required.

Features and Equipment in Detail
The 3M UY features two connection openings, each designed to accept a single, solid copper wire. The cutting-clamp contacts ensure that the wire is mechanically processed upon insertion, guaranteeing a secure electrical contact. The grease filling inside the connector acts as a barrier against moisture and protects the contact points from oxidation. The product color is white and yellow, with the yellow cap indicating the connection opening.

Technology Explained Simply
The cutting-clamp technology enables a mechanical connection in which the wire is processed by an integrated cutting mechanism when inserted into the connector. This creates an optimal contact surface between the wire and the contact. The grease filling contained inside the connector acts as a protective agent against moisture and prevents the long-term formation of oxidation layers that could impair conductivity. The combination of mechanical connection and chemical protection increases the reliability of the connection.

Compatibility and Accessories
The 3M UY is compatible with 3M™ Scotchlok™ Crimping Tools of type E-9. These tools enable precise and powerful connection of wires within the connector. The use of appropriate crimping tools is necessary to fully utilize the intended mechanical properties of the connector. Compatibility information refers exclusively to the specified tool types.

Installation and Mounting
Installation is performed by inserting the wires into the respective connection openings of the connector. The cutting-clamp contacts ensure that the wire is mechanically processed upon insertion. Subsequently, the connector is processed using a suitable crimping tool (3M™ Scotchlok™ Crimping Tool E-9) to ensure a firm and durable connection. The grease filling remains inside the connector during the installation process and provides long-term protection.

Operational Advantages
The 3M UY provides a compact and robust connection, protected against moisture by the grease filling. The use of cutting-clamp contacts ensures reliable electrical conductivity. The small size of the connector reduces the overall diameter of the connection bundle, which is advantageous in tight installation situations. The connection is suitable for use in environments requiring high mechanical and electrical stability.

The product color is white and yellow, with the yellow cap indicating the connection opening. Color information refers to the external design of the connector. The grease filling is an integral part of the product and provides protection for the contact points.

Features
Product colourWhite, Yellow


Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Product data sheet
Datasheet for 3M UY
