3M 7100198124 Scotch Heat-shrinkable sleeve 35 mm ², 91-AHSC-35 with screw content_copy

The 3MT 91-AH is a heat shrink connection set for crimp connectors designed for low voltages. It is suitable for 4- or 5-core, unshielded and unarmored insulated low-voltage plastic cables with up to 0.6/1 kV (according to HD 603 and IEC 60502-1). The cable cross-section range is 5 x 1.5 to 5 x 6 mm². RoHS compliant, halogen-free. Good electrical insulation and resistance to moisture, mechanical stress, chemicals and UV radiation.

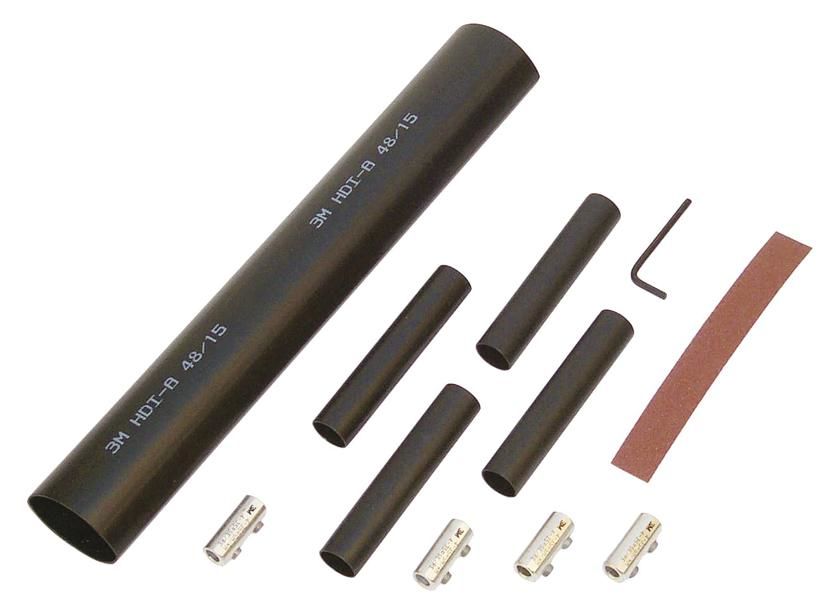

The 3MT heat shrink connection set of the 91-AHSC series with screw connectors enables a simple, quick and secure cable connection and is suitable for all common plastic cables with PVC or XLPE insulation in low voltage. You can use it both indoors and outdoors and for underground installation. Due to its high shrinkage rate, it covers a large cross-section range, which is why only a few sizes are needed for a large number of connections. The connection set is extremely resistant to aging and chemicals and has very good mechanical strength. A set contains a thick-walled outer tube, four or five inner tubes, the same number of screw connectors, a hexagon wrench and emery cloth. The screw connectors are suitable for copper and aluminum conductors and do not require any special tools.
Type: 91-AHSC-35
