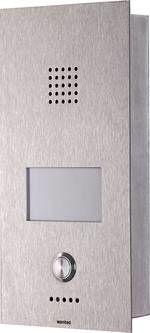

Wantec 4041 Door station Monolith C IP 1T with 1 button

Your rating:
Average rating
product review for Wantec 4041 Door station Monolith C IP 1T with 1 button
( 4.4 / 5 ) 47 ratings
Wantec 4041
This image may differ from the desired article.
550,62 EUR
( 655,24 EUR incl. VAT )
≈ £460.87  |  ≈ $605.13
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Wantec 4041 Door station Monolith C IP 1T with 1 button
Lieske Part No.:732788
Mfg Part No: 4041
UPC/EAN: 4250367740415
Weight:1.359 kg

Product information for Wantec 4041:

The Wantec MONOLITH C IP 1T is an IP/VoIP door station that can be integrated into existing networks with SIP servers or used as a peer-to-peer device directly callable to an end device. It enables communication between visitors at the front door and recipients inside, where the call can be answered with video via SIP video phones, Windows pop-up programs, Android apps, Fritz!Fon C4 devices, or iPhone/iPad apps. Pure voice communication is possible via all available telephones, depending on the system configuration. The door station is designed for use in modern building communication systems based on IP protocols.

Applications

The MONOLITH C IP 1T is suitable for use in residential and commercial buildings where secure and flexible network-based communication is required. It is particularly suitable for systems that combine voice and video transmission over IP networks. The ability to receive door calls on various end devices makes it flexible for use in different residential and office environments. The expandability to include multiple cameras enables comprehensive monitoring of entrance areas, with up to four video streams receivable simultaneously, depending on the functionality of the used app.

Functions and Equipment in Detail

The door station features a front plate made of stainless steel V4A, which is seawater-resistant and has a special finish to minimize fingerprints. The integrated 170° color camera in the Vision version provides a wide viewing angle and transmits images in MJPEG and JPEG formats with a resolution of HD 720p. The camera is designed for use in IP systems and supports live image transmission. When the doorbell is pressed, a livestream at a rate of approximately one frame per second is transmitted to compatible end devices such as the Fritz!Fon C4.

Technology Explained Simply

Power supply is either via a power adapter providing 12 V DC or AC (approx. 500 mAh) or via PoE (Power over Ethernet) according to IEEE 802.3af. The Ethernet connection operates in 10BaseT or 100BaseTX standard with a speed of 10/100 Mbit/s. An integrated web server enables configuration and control via a web interface. Firmware can be updated via the web interface. The volume of the microphone and speaker is adjustable to adapt communication quality to the respective environment.

Compatibility and Accessories

The door station is designed for connection to IP telephone systems or the internet. It supports SIP connections via IP telephone systems, FritzBox devices, and external providers. Communication takes place via IP-based protocols. Available accessories include various mounting and protection components, such as the deep recessed box Monolith C (223x103x60 mm), the shallow recessed box TFE MONOLITH C 240, the stainless steel surface-mounted channel (100x220x337 mm, brushed), the weather protection roof for surface mounting, and the cover frame TFE MONOLITH C 240 +25 mm. These components support installation and protection of the door station.

Installation and Mounting

Installation is carried out either in recessed or surface-mounted fashion, with appropriate boxes and channels available. Mounting requires Ethernet connection and power supply via the power adapter or PoE. Configuration is done via the integrated web interface, accessible through a browser. Network connection and SIP parameter settings are performed via the web interface.

Operational Advantages

The MONOLITH C IP 1T offers a flexible and expandable solution for door communication. The ability to integrate multiple cameras and receive up to four video streams simultaneously enables comprehensive visibility of the entrance area. PoE support simplifies installation, as power and data are transmitted over a single cable. The integrated web control and firmware update function facilitate maintenance and system adaptation. The white LED backlighting for nameplates ensures uniform illumination with a maximum difference of 5%, improving readability. Two independent relays allow control of door openers and door chimes, with HTTP commands for home automation systems triggered upon doorbell ring and door opening.

General
Front platestainless steel V4A seawater resistant
Grindspecial finish against fingerprints
Camera170° Color camera
Camera formatMJPEG and JPEG
Video resolutionHD 720p
Current supplypower supply 12V DC or AC, approx. 500mAh
PoEYes according to IEEE 802.3af
Ethernet10/100Mb 10BaseT or 10baseTX
Web-ServerIntegrated
Firmware updatevia web interface
LoudnessAdjustable for microphone and speaker
Relaytwo independent relays
LED lightingwhite LED backlight for nameplate homogeneous, max. 5% difference
SIP connectionvia IP telephone system, FritzBox, external providers
Connectionto IP telephone system or internet
HTTP commandsdetachable when ringing and door opening
Live video transmissionapprox. 1 image/sec. on Fritz!Fon C4
