TRILUX Siella G8 M73 DW 28-40/3ML-8MC luminaire diffuser square 8364140

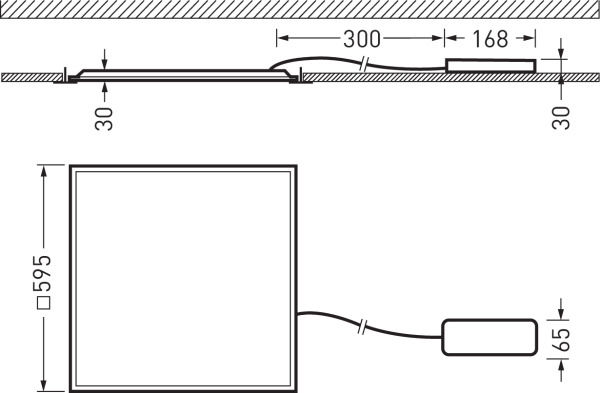

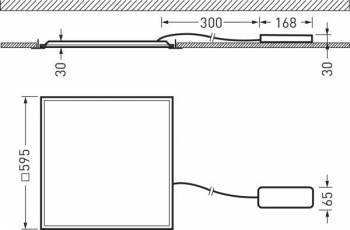

Square LED recessed light with translucent cover panel. Version M73 (600 mm x 600 mm). For system ceilings with visible support rails. In combination with an accessory that must be ordered separately, the light is also suitable for surface mounting. Fall protection rope included in delivery. Further information and data on light installation and fastening can be found in the installation instructions. Cover panel made of translucent PMMA. With Lambertian light intensity distribution. Harmonious lighting effect due to evenly illuminated light output. Light luminous flux adjustable in 3 levels, light color adjustable in 2 levels. Rated luminous flux 2700 lm - 4100 lm, rated power 22 W - 33 W, maximum light output 128 lm/W. Light color warm white or neutral white, correlated color temperature (CCT) 3000 K or 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 4 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Frame made of aluminum, rear luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 595 mm x 595 mm, luminaire height 29 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.1 kg. With external control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
Type: Siella G8 M73 DW 28-40/3ML-8MC ET
