Trilux LuceoS Act S G2 PAW-IL 150 ETDI 01+LLWP Exclusive 7941959

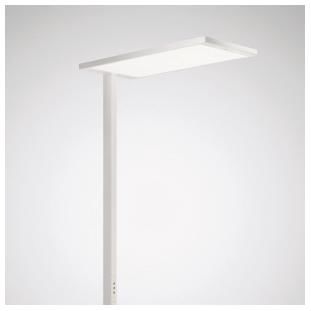

LuceoS Act S G2 PAW-IL 150 ETDI 01+LLWPExclusive LED floor lamp with direct and indirect luminous flux components. For standard-compliant illumination of single and double workstations. With integrated light management for synchronous day and season-dependent control of the light color (circadian control) of both light emission levels. In terms of design and lighting properties, the floor lamp harmonizes with suspended and surface-mounted lamps as well as other floor lamp variants in the project. The lamp is delivered in 4 packages to protect the individual components. The direct component of the lamp, with its wide, slightly asymmetrical light intensity distribution, provides very even illumination of the desk surface. The indirect component with Lambertian light distribution provides optimal room illumination. Distribution of the total light intensity distribution (direct/indirect): 10 / 90%. Glare rating according to UGR classification (EN 12464-1) 80. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile and die-cast aluminum. U-shaped luminaire base. Inclination of the luminaire head can be adjusted lengthways and crossways using two grub screws. Color white, solvent-free powder-coated (RAL 9016). Other colors available on request. Luminaire height: 2000 mm, length/width of base: 500 mm/320 mm, length/width of luminaire head: 677 mm x 290 mm, height of luminaire head: 23 mm. Standpipe dimensions: 50 mm x 28 mm. Weight: 16.9 kg. Protection class (EN 61140): , Protection type (DIN EN 60529): IP, Shock resistance level according to IEC 62262: , Test temperature glow wire test according to IEC 60695-2-11: . Connection via flexible connection cable 3 x 1 mm2 (Schuko plug and cold device socket C14), length approx. 3000 mm. Alternative plug types available: connection plug type J SEV, Switzerland, connection plug type BS, British Standard 1363. The connection cable is included in the scope of delivery. With electronic control gear, dimmable (integrated). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. The luminaire has an integrated daylight and HF presence sensor with movement direction detection. Up to 20 luminaires with LiveLink Workplace equipment can be connected to one another within a room via Bluetooth to form an interactive luminaire group. The first detection of movement in any light within the group causes all group members to switch on at the basic light level (approx. 300 lx, indirect component). A subsequent detection in the vicinity of a light switches it to workstation mode by switching on the direct component. The light color and HCL curve of the indirect component are harmonized within the light group. The Smart Connect functions are parameterized using a password-protected smartphone app.The lighting functions are operated manually using 3 control elements and a smartphone app. Communication between the connected lights and the smartphone takes place using Bluetooth Low Energy v 5.0. Individual lights and groups of lights can be controlled using up to 4 battery- and wireless wireless buttons, which are available as accessories that can be ordered separately. TRILUX order number 7941959
Type: LuceoS Act S G2 PAW-IL 150 ETDI 01+LLWP
