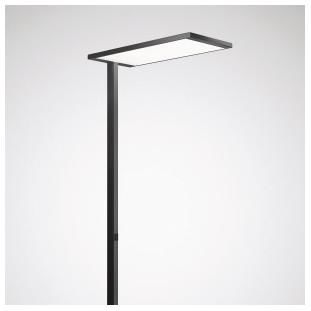

TRILUX LuceoS S G2 PAW-IL 150-840 ETDS 05 grid light floor lamp 7941158

Exclusive LED floor lamp with direct and indirect luminous flux components. For standard-compliant illumination of single and double workstations. With integrated passive infrared presence detector and daylight sensor. In terms of design and lighting properties, the floor lamp harmonizes with hanging and surface-mounted lamps as well as other floor lamp variants in the project. The lamp is delivered in 4 packages to protect the individual components. The direct component of the lamp, with its wide, slightly asymmetrical light intensity distribution, ensures very even illumination of the desk surface. The indirect component with Lambertian light distribution ensures optimal room illumination. With symmetrically limited wide beam light intensity distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile and die-cast aluminum. U-shaped luminaire base. Inclination of the luminaire head can be adjusted lengthwise and crosswise using two grub screws. Surface coated in black (RAL 9005). Other colors available on request. Luminaire height: 2000 mm, length / width of base: 500 mm / 320 mm, length / width of luminaire head: 677 mm x 290 mm, height of luminaire head: 23 mm. Standpipe dimensions: 50 mm x 28 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 16.9 kg. Connection via flexible connection cable 3 x 1 mm2 (protective contact plug and cold device socket C14), length approx. 3000 mm. Alternative plug types available: connection plug type J SEV, Switzerland, connection plug type BS, British Standard 1363. The connection cable is included in the scope of delivery. With 2 electronic control gears, digitally dimmable (DALI). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The 2-way button in the lamp stand enables separate switching and dimming of direct and indirect components. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: LuceoS S G2 PAW-IL 150-840 ETDS 05
