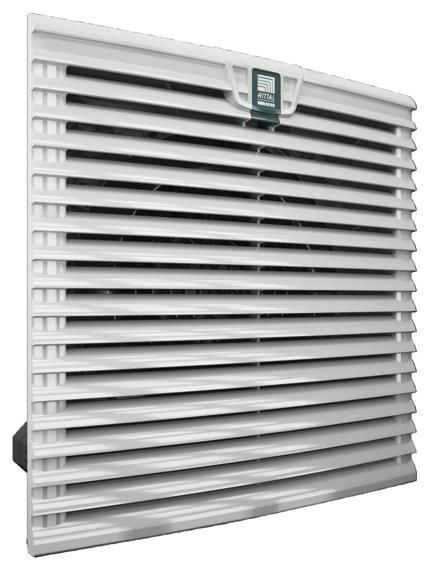

Rittal 3241100 SK TopTherm fan-and-filter unit, 230/250 m³/h, 230 V, 1~, 50/60 Hz, WH: 255x255 mm
|
145,30 EUR |
|
|
( 172,91 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| End-Of-Life: | 21. Aug 2025 |
|---|---|
| Lieske Part No.: | 569396 |
| Mfg Part No: | 3241100 |
| UPC/EAN: | 4028177651982 |
| Weight: | 2.08 kg |
Product information for Rittal 3241100:
Protection category IP to IEC 60 529: IP 54
NEMA 12
With hose-proof hood: IP 54
With hose-proof hood: NEMA 3
With hose-proof hood: NEMA 3R
With hose-proof hood: NEMA 4
With hose-proof hood: NEMA 4X
With fine filter mat or hose-proof hood: IP 54
With fine filter mat or hose-proof hood: NEMA 12
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fan-and-filter units, we recommend using the enclosure internal thermostat, the speed control or the digital enclosure internal temperature display and thermostat
Packs of: 1 pc(s).
EAN: 4028177651982
Customs tariff number: 84145100
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): At 50 Hz: 230 m³/h
At 60 Hz: 250 m³/h
Air throughput with outlet filter including standard filter mat: Number of outlet filters: 1
Number of outlet filters: 2
Number of outlet filters: 1
Model No. of outlet filter: SK 3240.200
Model No. of outlet filter: SK 3240.200
Model No. of outlet filter: SK 3243.200
At 50 Hz: 183 m³/h
At 50 Hz: 203 m³/h
At 50 Hz: 203 m³/h
At 60 Hz: 205 m³/h
At 60 Hz: 220 m³/h
At 60 Hz: 230 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 255 mm
Height: 255 mm
Required mounting cut-out: Width: 224 mm
Height: 224 mm
Build depth: 25 mm
Installation depth: 107 mm
Temperature range: Bearing: -30°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 40 W
At 60 Hz: 42 W
Rated current (max.): At 50 Hz: 0.26 A
At 60 Hz: 0.24 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Noise level: At 50 Hz: 54 dB(A)
At 60 Hz: 56 dB(A)
Diagonal fan: Diagonal, self-starting shaded pole motor
Weight/pack: 2.24 kg
Type: SK 3241.100
