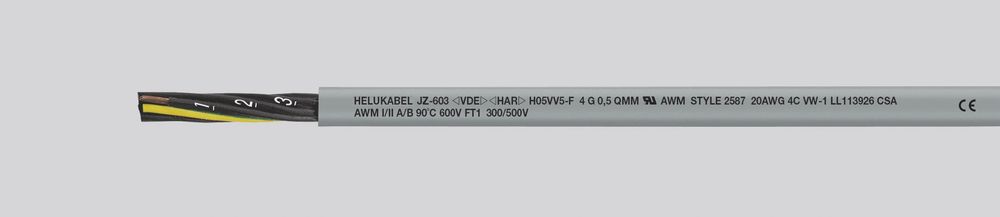

Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized
|
-5% 6,06 EUR 6,35 EUR |
|||||||||||
|
incl. 0,71 EUR copper surcharge ( 7,21 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 299745 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 83655 | ||||||||||
| UPC/EAN: | 4060892019395 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 83655:
Technical data:
Special PVC hose cable with oil-resistant outer jacket in accordance with DIN VDE 0285-525-2-51 / DIN EN 50525-2-51 and UL Style 2587Temperature range HAR moving -5°C to +70°C fixed -40°C to +70°C UL/CSA moving -5°C to +90°C fixed -40°C to +90°C
Nominal voltage HAR U0/U 300/500 V UL/CSA 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance min. 20 MOhm x km
Minimum bending radius moving 7.5x cable Ø fixed 4x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Construction:
Bare copper wire, in accordance with DIN VDE 0295 Class 5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of special PVC and class 43 in accordance with UL Std.1581
Core identification in accordance with DIN VDE 0293 black cores with continuous white numbering
Cores stranded in layers with optimal lay lengths
Outer jacket made of oil-resistant special PVC, and class 43 in accordance with UL Std.1581
Jacket color: gray (RAL 7001) with meter marking
Properties:
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, UL VW-1, CSA FT1
Oil-resistant in accordance with DIN VDE 0473-811-404/ DIN EN 60811-404, UL-Std.1581 Part 50.182
Notes:
shielded analog type: JZ-603-CY
Use:
MULTINORM control cables are used in almost all machines, systems and devices intended for export. Thanks to the multiple approvals, these cables can be used almost worldwide for medium mechanical stress for flexible applications with free movement without tensile stress and without forced movement in dry, damp and wet rooms, but not outdoors.
Standard lengths: 100 m, 500 m, 1000 m
Technical changes reserved.
Type: JZ-603 UL-CSA-HAR 18
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized?
The article Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 83655 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized always at the best possible price. We can give you a discount of 2% on Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized we can offer you a price of 5,98 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 83655 HELU JZ-603 UL-CSA-HAR 18 three standardization, control line 18G0,5qmm harmonized via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
