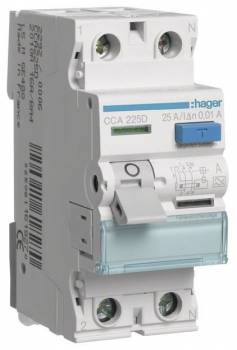

Hager CCA225D
residual current circuit breaker 2-pole 6kA 25A 10mA type A
|
91,48 EUR 95,34 EUR |
|||||||||||
|
( 108,86 EUR incl. VAT ) ≈ £77.58 | ≈ $102.55 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 665005 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CCA225D | ||||||||||
| UPC/EAN: | 3250611618270 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | CCA225D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CCA225D:
| General | |
| Number of poles | 2 |
| Rated voltage | 230 V |
| Rated current | 25 A |
| Rated fault current | 0.01 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 7.10 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CCA225D residual current circuit breaker 2-pole 6kA 25A 10mA type A?
The article Hager CCA225D residual current circuit breaker 2-pole 6kA 25A 10mA type A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CCA225D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CCA225D residual current circuit breaker 2-pole 6kA 25A 10mA type A always at the best possible price. We can give you a discount of 2% on Hager CCA225D residual current circuit breaker 2-pole 6kA 25A 10mA type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager CCA225D residual current circuit breaker 2-pole 6kA 25A 10mA type A we can offer you a price of 88,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
