ARCTIC fan P12 Max-120mm PWM regulated (Black) 5-Pack
|
21,75 EUR |
|||||||||||
|
( 25,88 EUR incl. VAT ) ≈ £18.38 | ≈ $24.32 plus delivery charges: 53,00 € |
|||||||||||
| On order · Expected to be available from 14.10.2026info_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2086139 | ||||||||||
| Mfg Part No: | ACFAN00135A | ||||||||||
| UPC/EAN: | 4895213701617 | ||||||||||
| Weight: | 0.794 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Arctic ACFAN00135A:

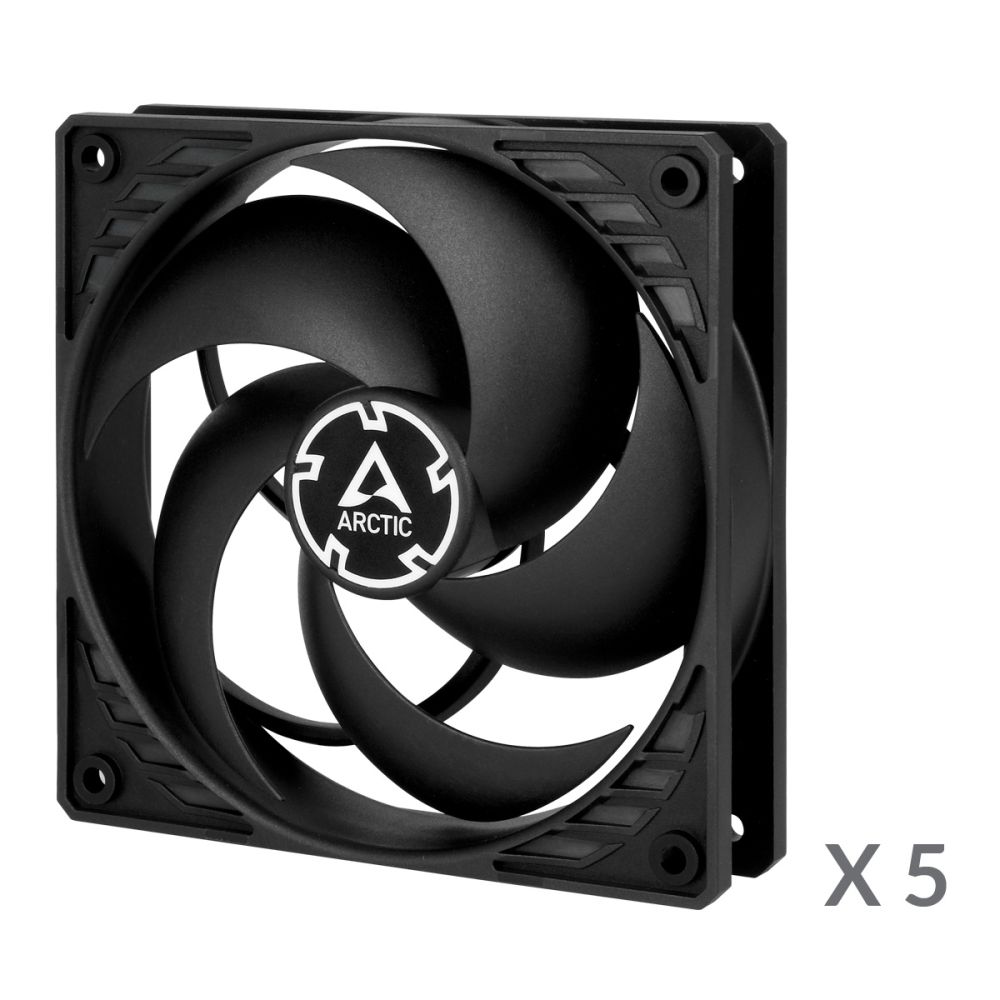

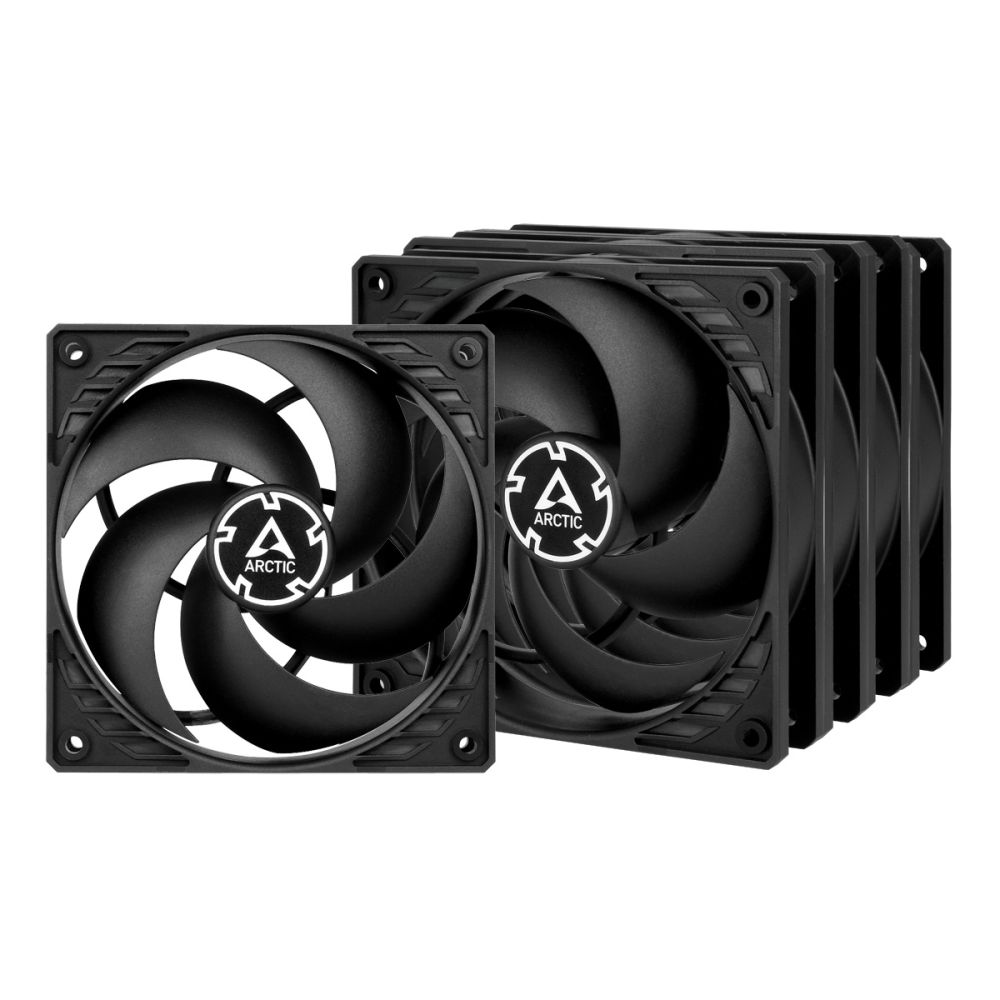

The ARCTIC P12 Value Pack is a 5-piece set of 120-mm case fans, specifically designed for applications with high air resistance, such as mounting on heatsinks or in tight computer cases. The fans are black and feature an innovative fan design optimized for high static pressure, ensuring efficient cooling even under restricted airflow conditions. The manufacturer's part number is ACFAN00135A. The fans are designed for use in computer cases and are particularly suitable for systems requiring uniform air circulation and effective heat dissipation.
Applications
The ARCTIC P12 is ideal for use in PC cases, especially in locations where high air resistance is present, such as on CPU or GPU heatsinks. The optimization for static pressure enables sufficient airflow through cooling fins even in compact or poorly ventilated systems. The fans are not intended for direct processor cooling but are designed for general case ventilation and to support heatsinks.
Features and Specifications in Detail
The fans have a diameter of 12 cm and a height of 25 mm, making them suitable for most standard PC cases. They feature a fluid dynamic bearing (FDB), which ensures long life and low noise levels. The maximum rotational speed is 1800 RPM, with a noise level of 0.3 Sone, which is very low. The maximum airflow is 95.65 m³/h (equivalent to 56.3 cfm), providing sufficient airflow for cooling in a medium-sized PC case. The fans are equipped with five blades, ensuring even air distribution.
Technology Explained Simply
Optimization for static pressure means the fan is specifically designed to push air through narrow or resistant structures such as cooling fins. This is especially important when the fan is not blowing freely into the environment but is integrated into a system with resistance. The fluid dynamic bearing (FDB) ensures that the fan shaft is lubricated with fluid, reducing vibrations and increasing lifespan. The fans operate on 12 V and can start at a low voltage of 2.8 V. The nominal current is 0.2 A.
Compatibility and Accessories
The fans feature a 3-pin connector, suitable for connecting to standard PC motherboards or fan controllers. The package includes 20 mounting screws for securing the fans to case openings or heatsinks. The packaging contains five fans in total, which is advantageous for use in larger systems or for replacing multiple fans. The fans are not designed for direct mounting on processor sockets and do not support specific processors.
Installation and Mounting
Mounting is done using the included screws, which are inserted into the designated holes on the case or heatsink. The cable length is 0.4 m, sufficient to connect the fan to a motherboard header or fan controller. Installation is simple and requires no special tools. The fans are suitable for both horizontal and vertical mounting, depending on their placement in the case.
Operational Advantages
The ARCTIC P12 offers an excellent combination of low noise level and high efficiency under high air resistance. The fluid dynamic bearing ensures long life and minimizes vibrations, contributing to quiet operation. The 5-pack enables uniform ventilation throughout the entire case and is especially suitable for systems with multiple fans. The black color seamlessly integrates into most PC systems.
Applications
The ARCTIC P12 is ideal for use in PC cases, especially in locations where high air resistance is present, such as on CPU or GPU heatsinks. The optimization for static pressure enables sufficient airflow through cooling fins even in compact or poorly ventilated systems. The fans are not intended for direct processor cooling but are designed for general case ventilation and to support heatsinks.
Features and Specifications in Detail
The fans have a diameter of 12 cm and a height of 25 mm, making them suitable for most standard PC cases. They feature a fluid dynamic bearing (FDB), which ensures long life and low noise levels. The maximum rotational speed is 1800 RPM, with a noise level of 0.3 Sone, which is very low. The maximum airflow is 95.65 m³/h (equivalent to 56.3 cfm), providing sufficient airflow for cooling in a medium-sized PC case. The fans are equipped with five blades, ensuring even air distribution.
Technology Explained Simply
Optimization for static pressure means the fan is specifically designed to push air through narrow or resistant structures such as cooling fins. This is especially important when the fan is not blowing freely into the environment but is integrated into a system with resistance. The fluid dynamic bearing (FDB) ensures that the fan shaft is lubricated with fluid, reducing vibrations and increasing lifespan. The fans operate on 12 V and can start at a low voltage of 2.8 V. The nominal current is 0.2 A.
Compatibility and Accessories
The fans feature a 3-pin connector, suitable for connecting to standard PC motherboards or fan controllers. The package includes 20 mounting screws for securing the fans to case openings or heatsinks. The packaging contains five fans in total, which is advantageous for use in larger systems or for replacing multiple fans. The fans are not designed for direct mounting on processor sockets and do not support specific processors.
Installation and Mounting
Mounting is done using the included screws, which are inserted into the designated holes on the case or heatsink. The cable length is 0.4 m, sufficient to connect the fan to a motherboard header or fan controller. Installation is simple and requires no special tools. The fans are suitable for both horizontal and vertical mounting, depending on their placement in the case.
Operational Advantages
The ARCTIC P12 offers an excellent combination of low noise level and high efficiency under high air resistance. The fluid dynamic bearing ensures long life and minimizes vibrations, contributing to quiet operation. The 5-pack enables uniform ventilation throughout the entire case and is especially suitable for systems with multiple fans. The black color seamlessly integrates into most PC systems.
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 3-pin |
| Display type | Not applicable |
| Illumination LED | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Country of origin | China |
| Packaging content | |
| Package type | Box |
| Number of screws | 20 |
| Screws included | |
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 56.3 cfm |
| Airflow | 95.65 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Power | |
| Voltage | 12 V |
| Starting voltage | 2.8 V |
| Rated current | 0.2 A |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 25 mm |
| Height | 120 mm |
| Weight | 139 g |
| Cable length | 0.4 m |
| Package width | 130 mm |
| Package depth | 127 mm |
| Package height | 123 mm |
| Package weight | 800 g |
