ALLNET Touch Display Tablet 8 inch PoE with 2GB/16GB, RK3566 Android 11, flush-mounted box

Your rating:
Average rating
Rating for ALLNET Touch Display Tablet 8 inch PoE with 2GB/16GB, RK3566 Android 11, flush-mounted box
( 0 / 5 ) 0 ratings
ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13ALLNET UD8RK3566A13
ALLNET UD8RK3566A13
This image may differ from the desired article.
-35% 204,06 EUR 314,10 EUR
( 242,83 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x ALLNET Touch Display Tablet 8 inch PoE with 2GB/16GB, RK3566 Android 11, flush-mounted box
Lieske Part No.:1994029
Mfg Part No: UD8RK3566A13
UPC/EAN: 4038816121691
Weight:0.7 kg

Product information for ALLNET UD8RK3566A13:

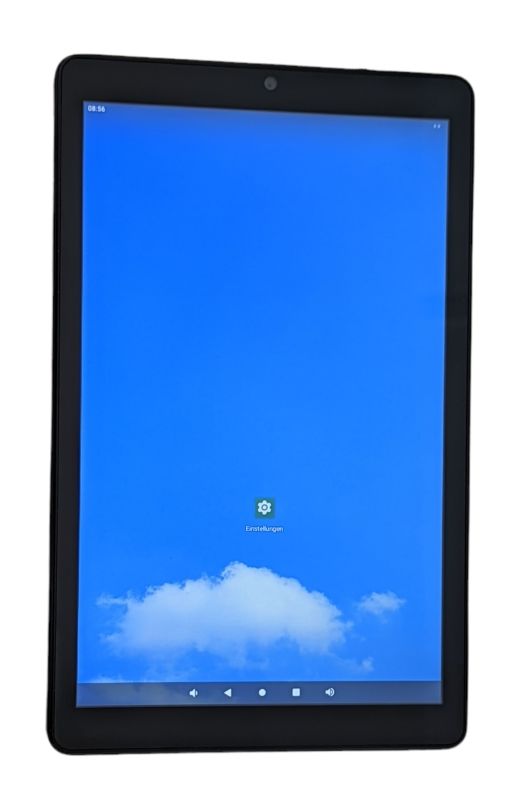

Built-in touch display on a flush-mounted box with Rockchip RK3566 CPU and Android. 2GB Ram / 16GB Storage. Expandable via USB and SD cards. Resolution 800x1280, PoE (Power over Ethernet).

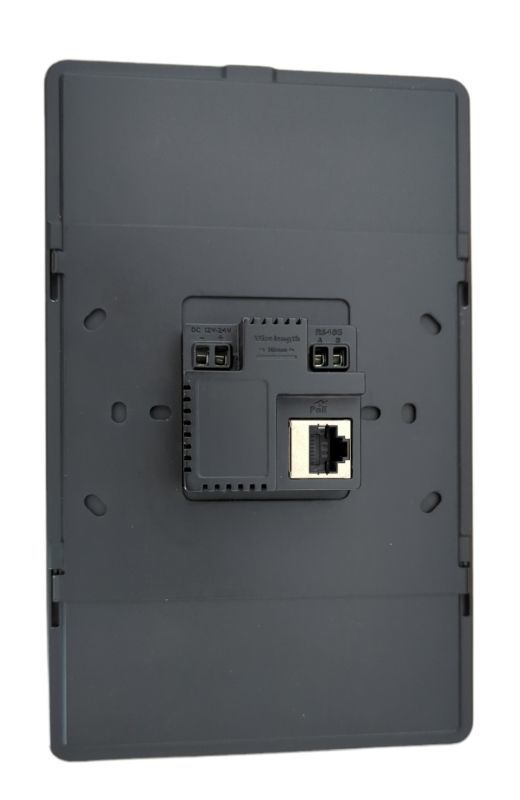

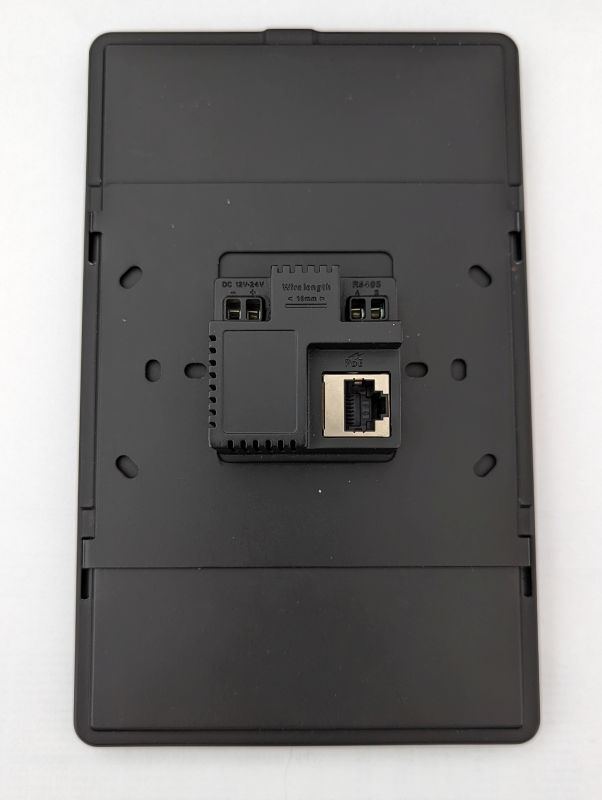

The display is fixed with a frame in a flush-mounted box and placed flat on the wall. It can be mounted on round and square flush-mounted boxes.
The display is specially designed for applications in home automation, visualization and building control as well as for installation in control cabinets or for table installation.

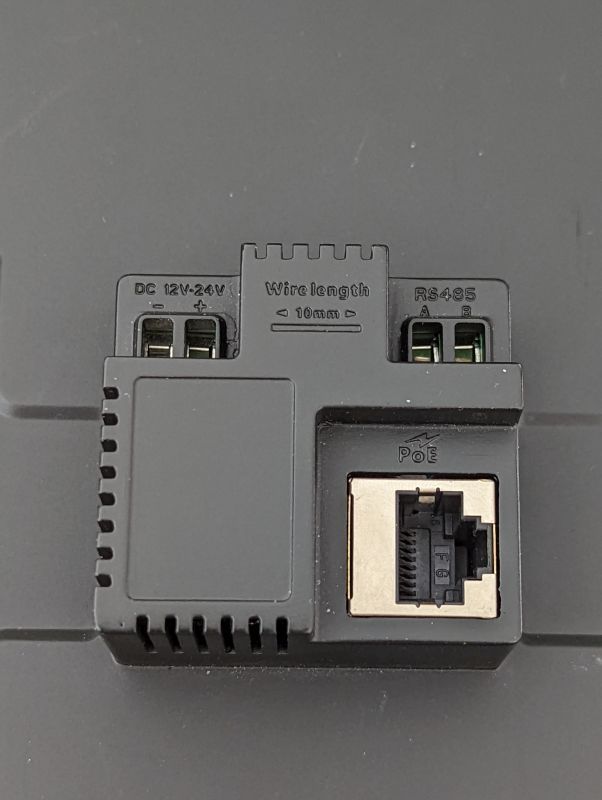

It is always advisable to test the devices for specific applications over the long term to ensure all required functions. Special feature: Power supply 12-24V DC or PoE 15.4 watts. No power supply included.
Thanks to the integrated LED strip on the sides, the display is also suitable as a meeting room display or for home automation to display certain states.
Model NO. UD-8RK3566A11 Product Type 20,3 cm ( 8 inch ) POE LED Display Description System CPU/GPU Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU RAM 2GB ROM 16GB System Android 11 Display screen 8, 0 inch IPS panel resolution 1280x800 Wide viewing Contrast 1000 Brightness 300nits Network WiFi 802.11a/b/g/n 2.4/5GHz Ethernet POE 15.4 Watt IEEE802.3af Bluetooth YES 3G no Jack SD Support TF card (Max 64G) Mini USB Mini USB USB Host USB Host RJ-45 built in Power DC input 12-24V Headset 3.5mm stereo headphone/micro output Multimedia Video Video decode - H.264/H.265/VP9
Video encode - 1080p60 H.264/H. 265 Audio MP3/WMA/AAC etc. Picture jpeg, jpg other functions Wireless mouse Support Wireless keyboard Support Speak 1x1W Camera 2MP OSD Language Multi language OSD operation attachment Adapter no Wall Bracket yes Vesa no
