Adata 75260122

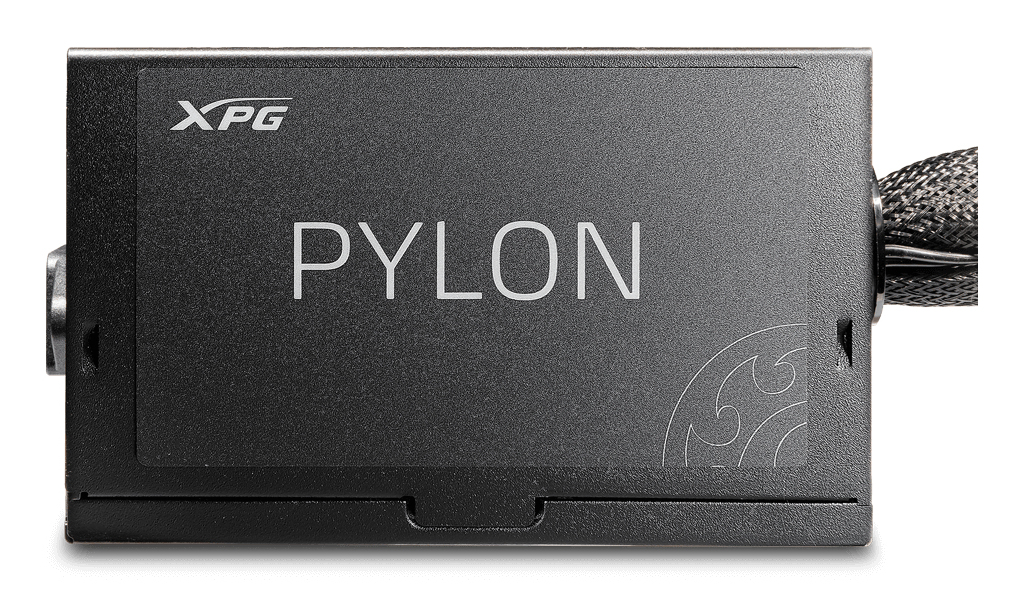

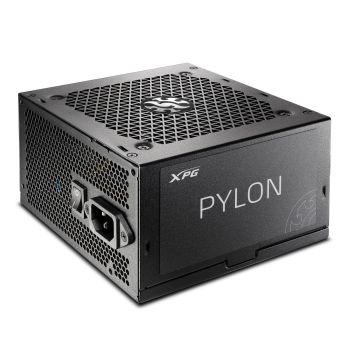

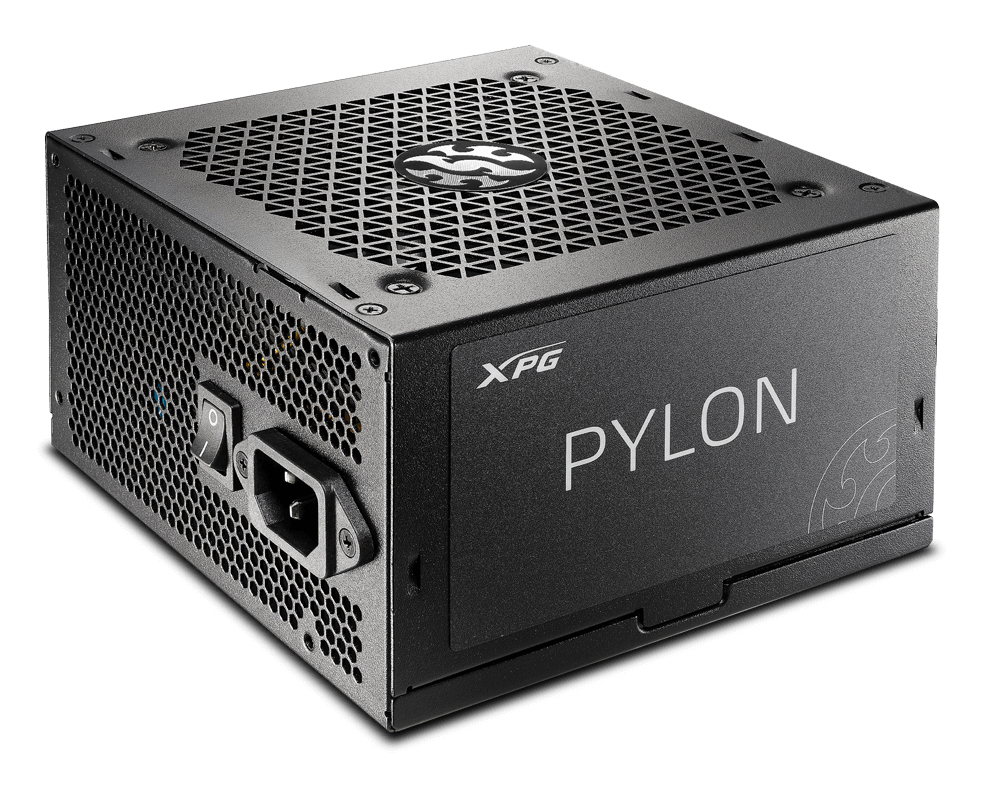

Netzteil XPG PYLON 550 (550 W/ATX 2.4) 80+ Bronze retail
|
47,28 EUR |
|
|
( 56,26 EUR incl. VAT ) ≈ £39.62 | ≈ $53.10 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1108200 |
|---|---|
| Mfg Part No: | 75260122 |
| UPC/EAN: | 4710273776781 |
| Weight: | 2.278 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Cables included | AC |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | |
| ATX Power connector (24-pin) | |
| Power | |
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8/4 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 546 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Technical details | |
| Sustainability certificates | ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Questions & answers
What is the delivery time of Adata 75260122 Netzteil XPG PYLON 550 (550 W/ATX 2.4) 80+ Bronze retail?
The article Adata 75260122 Netzteil XPG PYLON 550 (550 W/ATX 2.4) 80+ Bronze retail is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Adata 75260122 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Adata 75260122 Netzteil XPG PYLON 550 (550 W/ATX 2.4) 80+ Bronze retail always at the best possible price. We can give you a discount of 2% on Adata 75260122 Netzteil XPG PYLON 550 (550 W/ATX 2.4) 80+ Bronze retail if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
