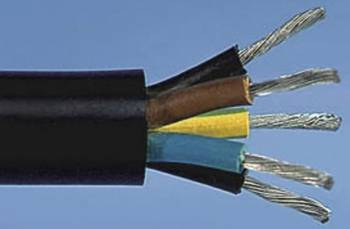

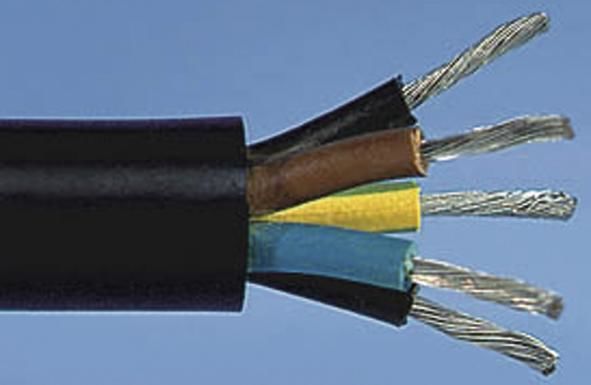

VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable

This image may differ from the desired article.

44,20 EUR

incl. 10,79 EUR copper surcharge

( 52,60 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

540791

Mfg Part No:

501850400000

Weight:

0 kg

Graduated prices net

From pieces	Price per meters
15	42,20 EUR
30	40,19 EUR
70	38,19 EUR
100	36,18 EUR

Further Rubber hose cable H07 RN-F from VDE-Kabel Further products in category Rubber hose cable H07 RN-F All products of VDE-Kabel

Product information for VDE-Kabel 501850400000:

Heavy rubber hoses H 7 RN-F according to VDE 282-4 Application for the connection of equipment under very extreme conditions, both mechanical and thermal point of view. For example, for equipment used in agricultural, industrial and fire hazards. Next they will be used, etc. for large boilers, heating plates, hand lamps, electric tools such as circular saws, drills, home network devices, but also for transportable motors or machines on construction sites or in farms also suitable for fixed installation, eg on plaster, in temporary buildings and barracks, allowed for direct laying aud components of hoists, machines, etc. Construction Conductor: copper fine wire class 5 Core insulation: Rubber VDE 2 7 T. 2 Coretype: according to VDE 293 Outer sheath: rubber mixture according to VDE 2 7 T. 2
Color: black Technical data Rated voltage: 45/75 V Test voltage: 25 V Temperature range: - 25 ° C - 6 ° C (during installation) - 4 ° C - 6 ° C (after installation) Operating Temp. +6 ° C (max) Bend Radius: 6 x cable diameter (min.) Dauerzugbelastung: max.
5N/mm2 taking into account the total copper cross section of fire: according to VDE 472 T. 8 4 type B (IEC = 332 -
) Oil resistance of sheath: according to VDE 472 T. 8 3 Category A Ozone resistance: according to VDE 472 T. 8 Category A or 5 according to VDE 472 T. 8 5 A
Category C cores x cross-section mm ²: 3 G
Copper content (kg / m%): 28.8 Outer diameter approx: 24.2 Weight (kg / m%): 66.3 Type: H-F 3G5 7RN item:
MTR
Type: H07RN-F 3G50

Please note...

For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.

The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.

Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!

This article contains a copper surcharge of 10,79 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable?

The article VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 501850400000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable we can offer you a price of 42,20 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	H07RN-F H07RN-F 3G50 - 3G50 ² Heavy rubber cable VDE-Kabel 501850400000 3G50 mm ², Heavy rubber cable	44,20 EUR
