FTTH wall housing, for 4 SC-S or LC-D 80x80 couplings with cable routing, DIN rail/wall, shrink, Synergy 21

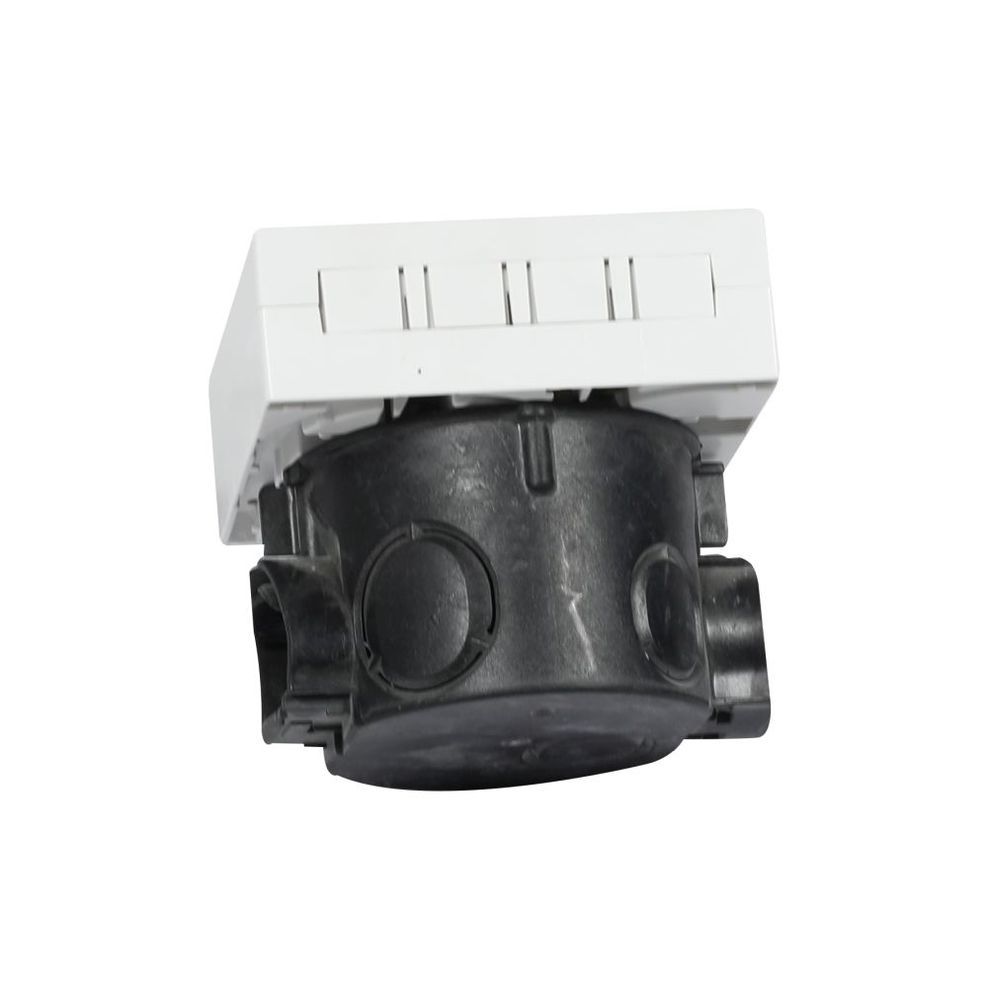

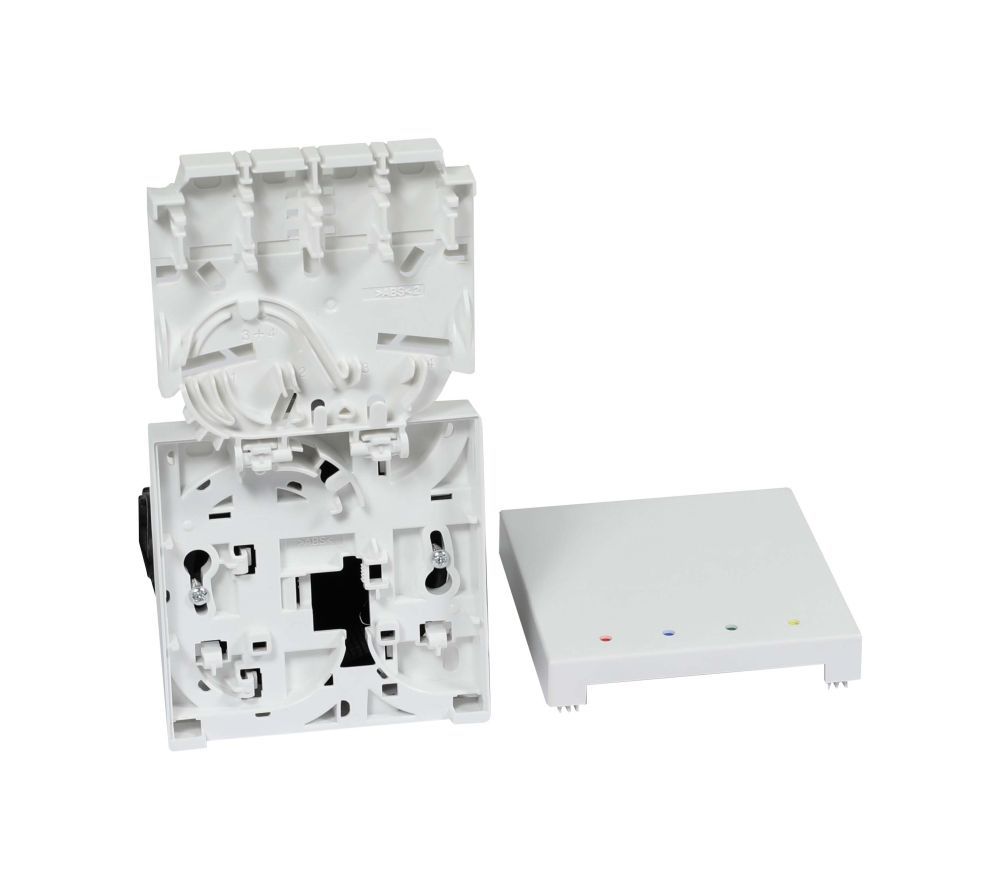

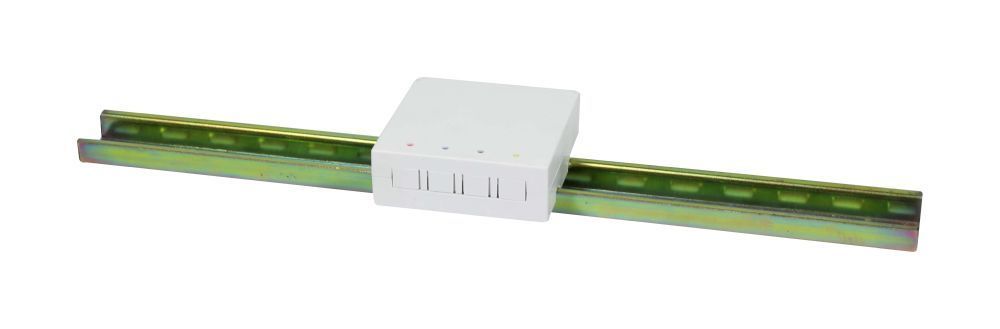

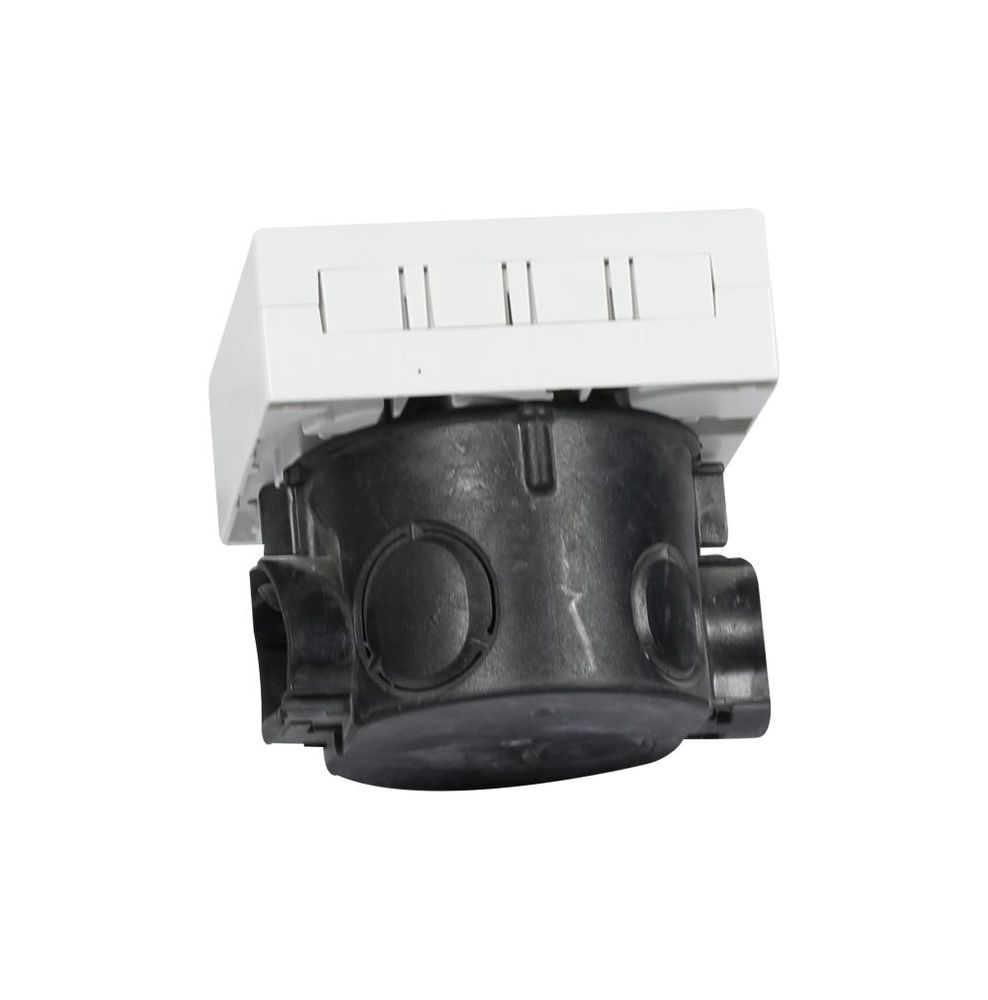

* Without coupling/pigtail* Suitable for drop cables for splicing in the box with pigtail inside Suitable for installing pre-assembled drop cables of different lengths with LC and SC connectors, no splicing is required in this application The box is for 1 -4 SC-simplex connections or LC-duplex connections suitable This can be mounted on a DIN rail or attached to the wall with a screw or to a flush-mounted box The splice cassette is for 0.9mm buffer splice (40*1.2mm sleeves) , Bare fiber splice (40 * 0.5 mm sleeves) This is suitable for drop cables between 2.0 mm and 5.0 mm Product features Area of application Indoor Mounting type Wall mounting / DIN rail mounting / on cavity / flush-mounted boxes Possibility of pole mounting No Material Plastic ABS color white Cable entry without screw connection 5 x 5 mm Max. number of fibers 4 Splice protection type Shrinkable (incl. 4x 40mm heat shrinkable protective tube) Suitable for coupling SC Simplex/LC Duplex/E2000® Max. equipment (adapter) 4 With fiber excess length holder Yes Swivel splice cassette Yes Cable sheath support Yes IP protection class IP20 Foreign body and contact protection Protection against medium-sized foreign bodies Water protection No protection Dimensions 80 x 80 x 28 mm Temperature range 0 – 50 °C UL94V2
