Synergy 21 LED Controller EOS 07 DALI DT8 RGB-WW (CCT)
|
-27% 48,24 EUR 65,80 EUR |
|
|
( 57,41 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1788923 |
|---|---|
| Mfg Part No: | S21-LED-SR000142 |
| UPC/EAN: | 4038816093356 |
| Weight: | 0.3 kg |

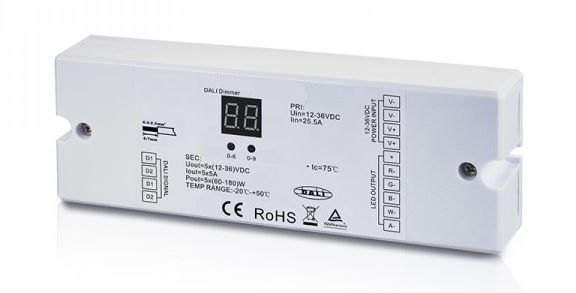

Product information for Synergy 21 S21-LED-SR000142:
DALI controller of the EOS 07 Series for RGB-WW products such as LED strips, RGB-WW spotlights or similar
1. DT8 version 5 channels for RGBWW 5ch dimmer
2. DC version, 12-24VDC, 5ch x 5A, constant voltage
3. Overcurrent / overheat protection applied\dlashThe RGBWW Controller is a 5 channel constant voltage RGBWA DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. All output channels R, G, B, W and Amber of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display USB interface.DALI
certified TÜV CE certified RGBWA DT8 DALI Dimmer with RGB Color Control Complies to the latest IEC 62386-209:2011 standard 5 channels constant voltage output controlled via a single DALI address R, G, B, W and Amber 5 channels output Control of five PWM outputs R, G, B, W and A via DALI DT8 color type RGBWA. Color control as defined in the DALI specification for device type 8, color type RGBWA. Compatible with universal DALI master controllers that supports DT8 commands DALI address can be manually assigned and displayed via digital display Configurable via DALI software tool and DALI USB interface
1. DT8 version 5 channels for RGBWW 5ch dimmer
2. DC version, 12-24VDC, 5ch x 5A, constant voltage
3. Overcurrent / overheat protection applied\dlashThe RGBWW Controller is a 5 channel constant voltage RGBWA DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. All output channels R, G, B, W and Amber of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display USB interface.DALI
certified TÜV CE certified RGBWA DT8 DALI Dimmer with RGB Color Control Complies to the latest IEC 62386-209:2011 standard 5 channels constant voltage output controlled via a single DALI address R, G, B, W and Amber 5 channels output Control of five PWM outputs R, G, B, W and A via DALI DT8 color type RGBWA. Color control as defined in the DALI specification for device type 8, color type RGBWA. Compatible with universal DALI master controllers that supports DT8 commands DALI address can be manually assigned and displayed via digital display Configurable via DALI software tool and DALI USB interface
