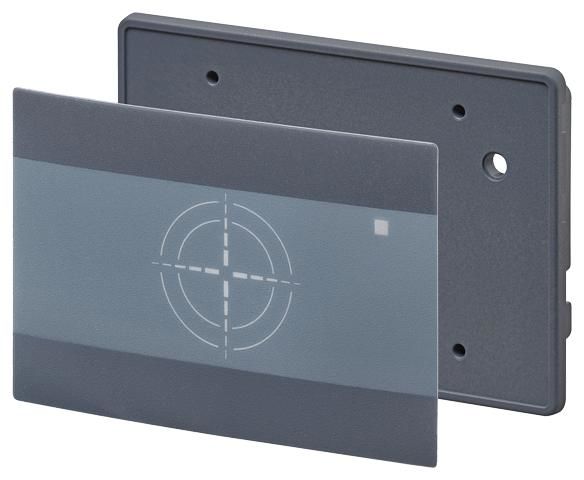

Siemens 6GT2831-6BA50-0AX0 SIMATIC RF1000 AccessCtrl. Reader RF1070R

SIMATIC RF1000 Access Control Reader, RF1070R OEM variant, ISO 14443 A/B Mifare, ISO15693, Legic Prime, Legic Advant, interfaces USB and RS232, IP 65 front, -25 to +55 °C, 90 x 62 x 25 mm LxWxH, with integrated antenna, including 1.8 m USB connection cable, neutral front foil without company logo is included. SIMATIC RFReader RF1070R OEM USB/RS232The reader for employee ID cards, with USB/RS232 interface is the solution for industrial access control. It enables the identification of operating personnel on machines and systems. Typical application examples: Controlled machine access: logging of access data, traceability of accesses/changes, individual control of access rights: definition of any number of user groups with different access rights, documentation of accesses: logging of access data, traceability of accesses and changes, fulfillment of documentation requirements. The access control reader supports the standards IS0 14443 (MIFARE) and ISO 15693. - Individual control of access rights: only one card, use of existing employee ID cards, thereby checking or tracing the actors and their activities (audit trail). - Secured and documented access to machines, prevents incorrect operation. - Easy integration into existing hardware (HMI devices and panels). - Simple and flexible connection options in control and IT systems. - High degree of protection IP 65 front) and temperature range from -25 to +55°C enable use on machines and systems in harsh industrial environments. - Status display via triple LED. - Integration into applications with limited installation space thanks to the compact design with low installation depth.
Type: 6GT2831-6BA50-0AX0
