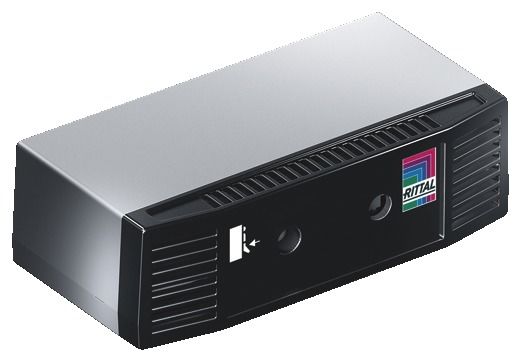

Rittal 7030120 DK CMC III Infrared access sensor, WHD: 80x28x40 mm
|
-7% 111,82 EUR 119,64 EUR |
|||||||||||
|
( 133,07 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 360255 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7030120 | ||||||||||
| UPC/EAN: | 4028177659506 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7030120:
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The CMC III infrared access sensor uses infrared light to monitor whether the enclosure door is open or closed.
The sensor has an integrated infrared transmitter and receiver.
The sensor is mounted in the enclosure and pointed at the door so that the light is reflected by a reflector strip on the door.
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Front: RAL 9005
Enclosure: RAL 7035
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
Mounting clips for support rails
Reflective adhesive strips
Packs of: 1 pc(s).
EAN: 4028177659506
Customs tariff number: 85319085
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: Infrared access sensor
Dimensions: Width: 80 mm
Height: 28 mm
Depth: 40 mm
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Measuring technique: Infrared diode with receiver and reflector
Interfaces/connections: General: 2 x RJ45 CAN bus
Weight/pack: 0.17 kg
Type: DK 7030.120
