Product information for Helios Ventilatoren 8651:

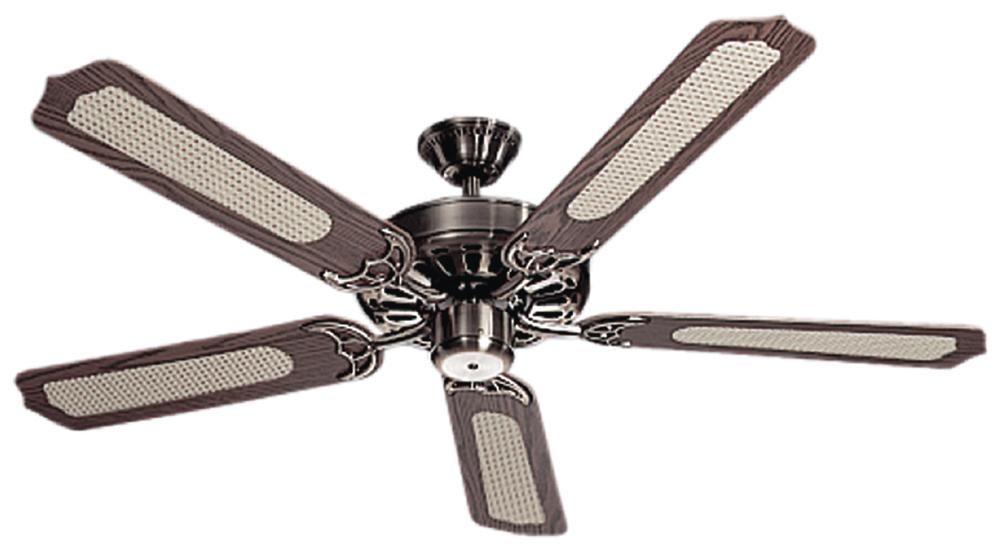

Ceiling fan, antique, brass
Typical Casablanca design for
use in decorative applications. Housing
Brass Antique or Vintage White finish.
Five wooden blades with cane
walnut finish or antique white. Maintenance
free motor with covered Kühlschlit-
zen, with ball bearings for continuous operation ge-
is. Vibration-damping suspension for
low vibration. Easy assembly
in three different suspension heights possible
Probably: directly to the ceiling (without swing-
tube), with short or long
pendant tube (there are two pendant tubes
in). Pull switch for three Leistungsstu-
ing and on / off below the engine.
Unbound local speed controller (accessory
accessory) can be connected. TUV GS approved.
Observe the accident prevention regulations (UVV)
provide mandatory minimum distance of
2.5 m from the floor to the lower wing-
edge before. Pursuant to Machinery Protection Act
and VDE regulations (VDE 0730 Part 2 F)
is only one direction of rotation allowed, ie
conveying direction downwards.
impeller with 5 sheets of wood, nut-
tree colored or off-white with pickled
wicker.
Single-phase AC external rotor motor
speed reduction by voltage-
controlled, closed design,
maintenance-free, sealed, low noise
ball bearing with long life oil.
Fan-data (default)
Vol.str. at 0 Pa m3 / h
Vol.str. Betr.pkt. m3 / h
Max 0 Pa pressure increase
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium Temperature degC
Angle of 0 degrees
Operating time h
Speed ​​190 1/min
aufgenomm.Power 0.065 kW
Weight 7.5 kg
Sound Power dB (A)
Sound pressure at 1 m dB (A)
230 Volt
Current consumption 0.28 Amp
AC / AC W
Frequency 50 Hz
B insulation
IP
Explosion protection N
Temperature class
Make: Helios
Item: 8651
Type: DVMA 130
______________________________________
Type: DVAM130
