TAROX ParX T100ca G9v2-I E-2468/32GB/2x1920GB/VOS

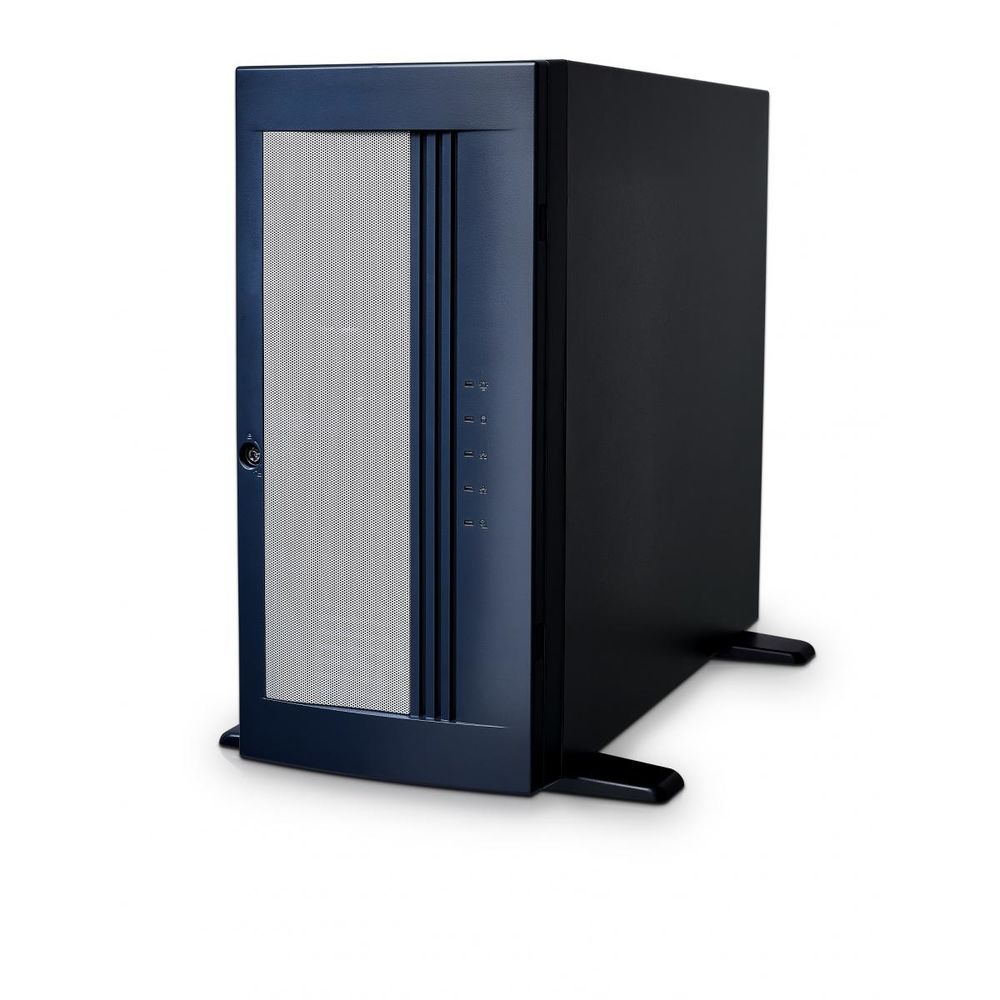

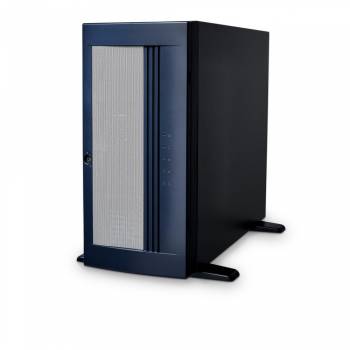

The TAROX Server Chassis SR209 USB 3.0 is a versatile and expandable tower server, ideal for small to medium-sized businesses. The robust black chassis features three 13,3 cm ( 5,2 inch ) drive bays and the capability to integrate up to 4x 8,9 cm ( 3,5 inch ) drives or 4x 6,3 cm ( 2,5 inch ) drives. The server is equipped with the ASUS P13R-M motherboard and a powerful Intel® Xeon® E-2468 processor with 8 cores and a turbo frequency of up to 5.2 GHz.

With 32 GB DDR4 ECC UDIMM memory, expandable up to 128 GB, and a RAID-1 configuration with two 1920 GB SSDs, the server ensures high data security and performance. The built-in ASPEED AST2600 graphics chip and extensive connectivity options make the server highly adaptable for various business needs.

Technical Specifications (English):

Chassis:

• Model: TAROX Server Chassis SR209 USB 3.0
• Type: Tower
• Color: Black
• Drive Bays: 3x 13,3 cm ( 5,2 inch )
• Drive Slots: Max. 4x 8,9 cm ( 3,5 inch ) or 4x 6,3 cm ( 2,5 inch ) (optional)
• Backplane: Optional, 4x SAS/SATA 6 Gb/s
• Front Ports: 2x USB 3.0
• Dimensions (W x D x H): 198 x 465 x 425 mm
• Rackmount Kit: Optional
• Front Panel: Lockable

Power Supply:

• Power: 350W (Single)

Motherboard:

• Model: ASUS P13R-M
• Chipset: Intel® C262
• Supported Processors: Intel® Xeon® E2400 Series
• Memory Type: DDR5 4800 UDIMM
• Slots: 4 modules per processor
• Max Memory: 128 GB
• SATA Ports: 8
• Onboard RAID: 0, 1, 5, 10 (Windows)
• LAN: 2x 1GbE
• Management: ASPEED AST2600
• Remote Management: Yes
• Graphics: ASPEED AST2600
• PCIe x16: 1 Slot
• PCIe x8: 1 Slot
• TPM: 1x optional
• USB 2.0: 1 rear, 1 header
• USB 3.0: 3 rear, 1 header, 1 Type-A
• Serial Ports: 1 header

Processor:

• Model: Intel® Xeon® E-2468
• Base Clock: 2.6 GHz
• Turbo Frequency: 5.2 GHz
• Cores: 8
• Cache: 24 MB
• TDP: 65 W
• Socket: 1700
• Number of CPUs: 1

Memory:

• Capacity: 32 GB DDR4 ECC UDIMM
• Slots: 4 sockets per processor
• Max Memory: 128 GB

Storage:

• Configuration: 2x 1920 GB SSD 6,3 cm ( 2,5 inch ) (RAID-1)
• Max Drives: 4
• SSD Support: Yes

RAID Controller:

• Onboard RAID: 6x SATA RAID 0, 1, 5, 10
• Optional RAID Controllers Available

Options:

• Remote Management Card: Yes
• Optical Drive: DVD+-R/RW

Operating System:

• Optional

Warranty:

• 36 Months Warranty for TAROX Servers

Service:

• 36 Months On-Site Service for Single Socket Servers, Next Business Day

Special Features:

• TAROX Silent Technology: Yes

Country Code:

• D/A/BENELUX

EAN Number: Available on request
