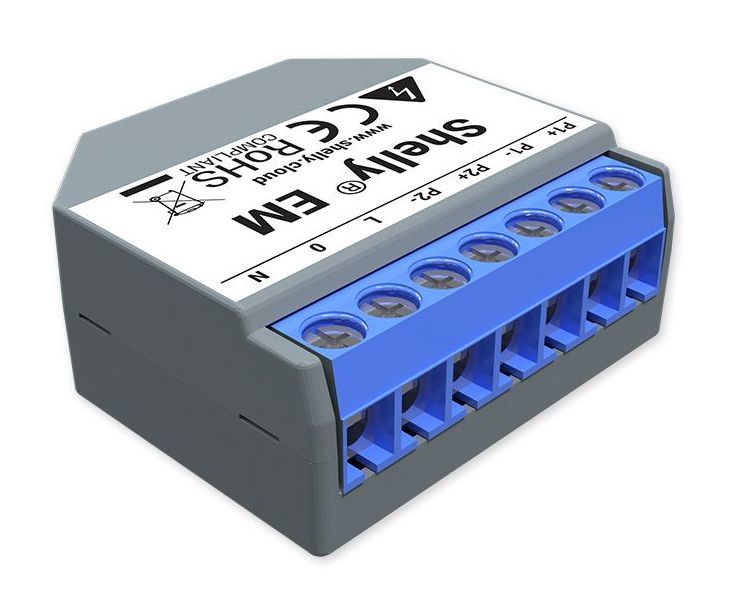

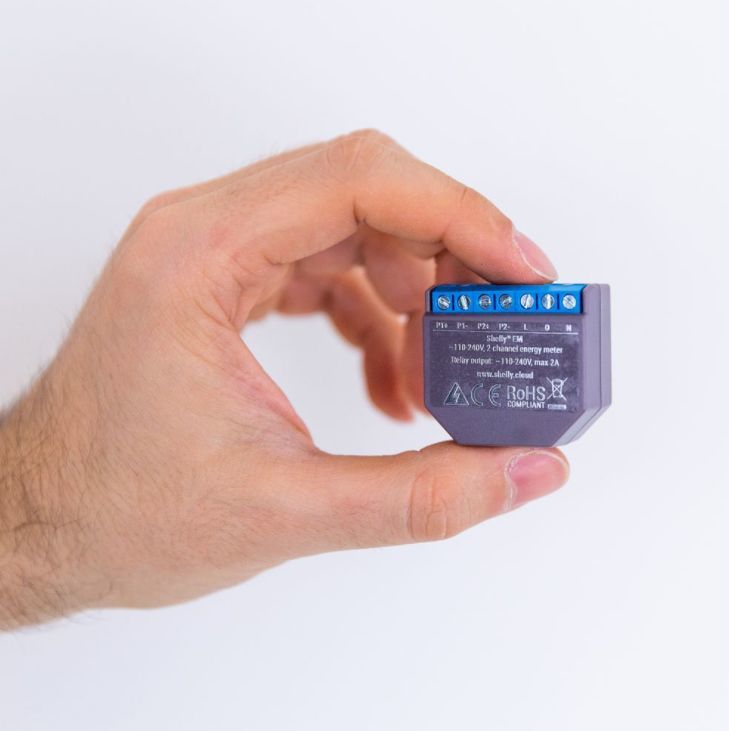

Shelly EM (Single Phase)

Shelly · EM (single phase) with 1 x 120 A terminal
The Shelly EM monitors the consumption of household appliances, circuits, office equipment, heaters, air conditioning or solar systems individually or the consumption of the entire house with the world's only WiFi energy meter. The Shelly EM also has an output with which you can control a contactor or relay. You can connect 50A or 120A current clamps to the Shelly EM. The current clamps are not included in the scope of delivery. So you can combine them as you like. For example, you can connect 1x50A and 1x120A or 2x120A.
Attention:
Working on the 230V network is dangerous and can lead to fatal accidents. Therefore, when connecting or with the housing open, always disconnect the device from the mains and switch off the fuses. We assume no liability for improper use of the device. If you are not confident about the installation, it is better to have the device installed by an electrician.
Features of the Shelly EM:
Current measurement on two independent measuring channels with up to 120A
output each for contactor control or load up to 2A
365 days of internal memory if Wi-Fi is not available
Voltage measurement and configurable alarm message
Measuring functions Shelly EM:
2x consumption (W)
2x current (A)
2x energy (Wh)
1x voltage (V)
Shelly EM connection mode:
Access Point Mode:
Here you can set up and control any device by simply connecting your smartphone to the Shelly WLAN and controlling the Shelly via the integrated WEB server .
Local Mode:
Connect the Shelly EM to your local Wi-Fi network to control any electrical device in your home. You can control up to 65,000 Shelly components on a Wi-Fi network.
Technical details:
Power supply: 110-230V ±10, 50/60Hz AC
Compatible with all important international voltage standards.
Contactor control - maximum load: 2A / 230V 50/60Hz.
Complies with the following EU standards:
RE Directive 2014/53/EU
LVD 2006/95/WE
EMC 2004/108/WE
RoHS2 2011/65/UE
Operating temperature: -20 to +40 °C
Minimum mounting opening: Ø = 50mm
Radio signal power: 1mW
Wireless/WiFi protocol: 802.11 b/g/g/n
Radio frequency: 2400 - 2500 MHz
Range: up to 50 m outdoors and up to 30 m indoors (depending on building material)
Electrical power consumption < 1 W
Microprocessor control
Two independent measurement channels with up to 120A each
Can connect to any Wi-Fi network or operate as an access point.
365 days of internal storage if Wi-Fi is unavailable.
Voltage measurement and configurable alarm message
Dimensions (LxWxH): 39 x 36 x 17 mm
Weight: 72g
Scope of delivery:
1x Shelly EM 2-channel energy measuring device
