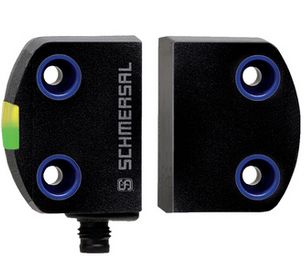

Schmersal RSS 260-I2-SD-ST safety sensor 103003603

Order Details:

• Product Type: RSS260-I2-SD-ST
• Article Number: 103003603
• EAN (European Article Number): 4030661436463

• Version 12.0: 27-27-46-01
• Version 11.0: 27-27-24-03
• Version 9.0: 27-27-24-03

ETIM Number:

• Version 7.0: EC001829
• Version 6.0: EC001829

Approvals - Regulations:

• Certificates: TÜV, cULus, FCC, IC, UKCA, ANATEL

General Data:

• Regulations: EN ISO 13849-1, EN IEC 60947-5-3, EN IEC 61508
• Coding: Individual coding, multiple teach-in possible
• Coding Level according to EN ISO 14119: High
• Operating Principle: RFID
• RFID Frequency Band: 125 kHz
• RFID Transmitting Power, Maximum: -6 dB/m
• Housing Design: Cuboid
• Installation Conditions (Mechanical): Non-flush
• Sensor Topology: Series Connection Device
• Housing Material: Plastic, thermoplastic, self-extinguishing
• Active Surface Material: Plastic, thermoplastic
• Response Time, Maximum: 100 ms
• Risk Time, Maximum: 200 ms
• Response Time of Safety Outputs upon Actuator Removal, Maximum: 100 ms
• Gross Weight: 60 g

General Data - Features:

• Serial Diagnostics: Yes
• Short Circuit Detection: Yes
• Cross Circuit Detection: Yes
• Series Connection: Yes
• Safety Functions: Yes
• Cascade Capability: Yes
• Integrated Status Display: Yes
• Number of LEDs: 3
• Number of Pins: 8
• Number of Safe Digital Outputs: 2
• Number of Sensors in Series Connection: 31

Safety Considerations:

• Regulations: EN ISO 13849-1, EN IEC 61508
• Performance Level, Up to: e
• Category: 4
• PFH Value: 6.80 x 10⁻¹⁰ /h
• PFD Value: 1.20 x 10⁻⁴
• Safety Integrity Level (SIL), Suitable for Applications in: 3
• Service Life: 20 years

Mechanical Data:

• Actuation Plane: Side and front
• Active Surface: Side and front
• Mounting: Typically requires 20 mm screw length. For mounting plates, 25 mm screws are recommended.
• Screw Type: 2x M4
• Maximum Torque for Mounting Screws: 0.8 Nm

Mechanical Data - Switching Distances According to EN IEC 60947-5-3:

• Typical Switching Distance, Front: 12 mm
• Typical Switching Distance, Side: 9 mm
• Assured Switching Distance ON Sao, Front: 10 mm
• Assured Switching Distance OFF Sar, Front: 18 mm
• Assured Switching Distance ON Sao, Side: 6 mm
• Assured Switching Distance OFF Sar, Side: 15 mm
• Note (Sao): The assured switching distance values apply to a temperature range of −10 °C to +60 °C. Between −28 °C and +65 °C, Sao decreases by 2 mm.

Mechanical Data - Connection Technology:

• Note (Sensor Chain Length): Cable length and cross-section influence voltage drop depending on output current.
• Connection Type: M8 Connector, 8-pin

Mechanical Data - Dimensions:

• Sensor Length: 29.5 mm
• Sensor Width: 39.2 mm
• Sensor Height: 18 mm

Environmental Conditions:

• Protection Class: IP65, IP65
• Operating Temperature: -28 to +65 °C
• Storage and Transport Temperature: -28 to +85 °C
• Maximum Relative Humidity: 93%
• Note (Relative Humidity): Non-condensing, non-freezing
• Vibration Resistance: 10 to 55 Hz, amplitude 1 mm
• Shock Resistance: 30 g / 11 ms
• Maximum Permissible Altitude Above Sea Level: 2,000 m

Electrical Data:

• Operating Voltage: 24 VDC -15% / +10% (Stabilized PELV Power Supply)
• Minimum Operating Current: 0.5 mA
• Typical Idle Current I0: 35 mA
• Rated Operating Voltage: 24 VDC
• Rated Operating Current: 600 mA
• Rated Short-Circuit Current: 100 A
• Maximum Readiness Delay: 2,000 ms
• Maximum Switching Frequency: 1 Hz
• Maximum Electrical Fuse: 2 A

Electrical Data - Safe Digital Inputs:

• Designation, Safety Inputs: X1 and X2
• Input Current: 5 mA

Electrical Data - Serial Diagnostics SD:

• Designation, Serial Diagnostics SD: OUT
• Operating Current: 150 mA
• Cable Capacity: 50 nF
