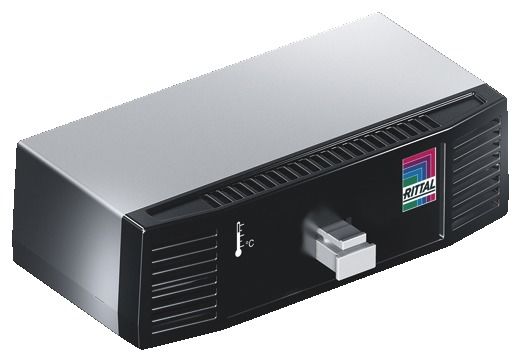

Rittal 7030110 DK CMC III Temperature sensor, WHD: 80x28x40 mm
|
-7% 102,40 EUR 109,56 EUR |
|||||||||||
|
( 121,86 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 360254 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7030110 | ||||||||||
| UPC/EAN: | 4028177659483 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7030110:
Benefits: Fast connection and automatic detection via plug & play
Power is supplied via the CAN-BUS interface.
Applications: Monitoring of enclosures in the areas of IT, industry and facility management
Monitoring of enclosures, rooms and containers in the IT environment
Function principle: Settings can be made via the CMC III Processing Unit
The CMC III temperature sensor monitors the ambient temperature in the enclosure.
With a passive airflow the integrated sensor in the enclosure can be used; for applications without an active airflow, the external NTC sensor provided must be connected.
Measurement range for external sensors: -40°C...+80°C
Material: Plastic
Front: Smooth
Enclosure: Textured
Colour: Front: RAL 9005
Enclosure: RAL 7035
Protection category IP to IEC 60 529: IP 30
Supply includes: Sensor
Installation and Short User's Guide
Mounting bracket
Assembly parts
External temperature sensor with connection cable and connector
Mounting clips for support rails
Packs of: 1 pc(s).
EAN: 4028177659483
Customs tariff number: 90269000
eCl@ss 5.1: 27189253
eCl@ss 7.0: 27189253
ETIM 6.0: EC002627
Design: Temperature sensor
Dimensions: Width: 80 mm
Height: 28 mm
Depth: 40 mm
Connection to the CAN bus: Direct
Maximum no. of users: CMC III Processing Unit Compact: 4
CMC III Processing Unit: 32
Operating temperature: Operation (environment): +0°C...+55°C
Ambient humidity (non-condensing): Operation (environment): 5 % - 95 %
Measuring technique: internal NTC resistor
external NTC resistor
Measurement range: Temperature (internal): 0 °C - 55 °C
Temperature (external): -40 °C - 80 °C
Temperature (external): 0 °C - 55 °C
Interfaces/connections: General: 2 x RJ45 CAN bus
General: Jack
Weight/pack: 0.2 kg
Type: DK 7030.110
