PLANET High Definition HDMI Extender Receiver over IP with

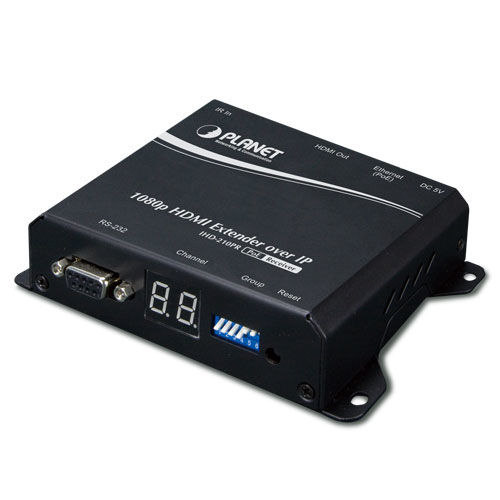

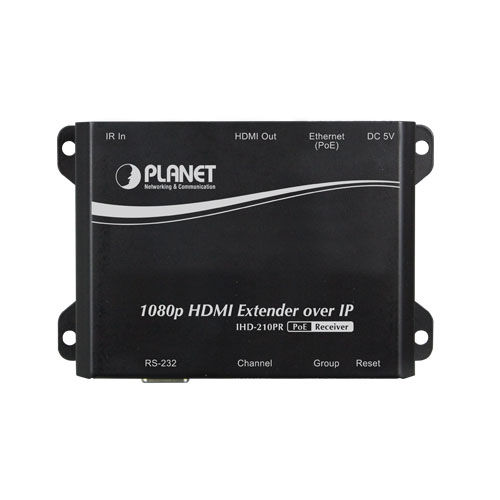

PLANET IHD-210 – HDMI-over-IP Extender with PoE for Seamless Full HD Video Distribution

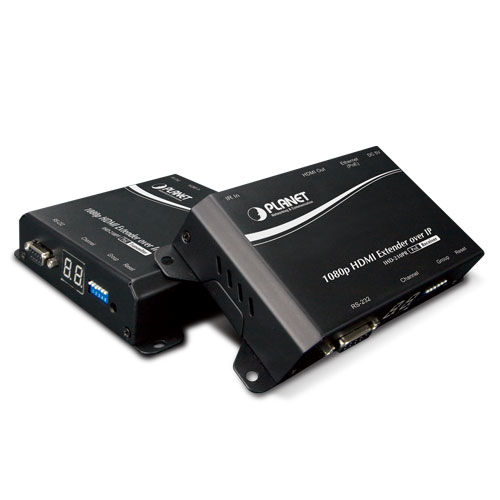

The PLANET IHD-210 HDMI Extender over IP with PoE provides a flexible, scalable, and high-performance Full HD video distribution solution. Consisting of a transmitter (IHD-210PT) and a receiver (IHD-210PR), it enables HDMI signals to be distributed over any existing IP network to an unlimited number of displays, with crystal-clear 1080p resolution.

Thanks to IGMP snooping support and PoE functionality, the IHD-210 series is ideal for dynamic signage, advertising, and information displays – all while simplifying power and network cabling. IR extension and RS232 pass-through allow remote control of video sources, while EDID automatic configuration ensures perfect compatibility across displays.

Key Features:

• HDMI over IP distribution with PoE (IEEE 802.3af/at)
• 1080p Full HD video with HDCP and Blu-ray support
• DIP switch supports 64 multicast groups for easy channel assignment
• IR control and RS232 pass-through for remote source control
• HDMI local output for real-time source monitoring
• Auto EDID copy for optimal video output to varied screens
• Plug-and-play installation – no software required

Ideal For:

• Digital signage in malls, airports, stations
• Live presentations, boardrooms, and classrooms
• Advertising systems in restaurants and exhibition halls

Technical Specifications (English):

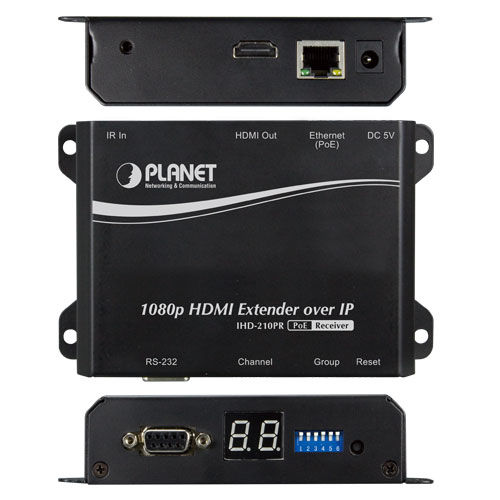

Interfaces:

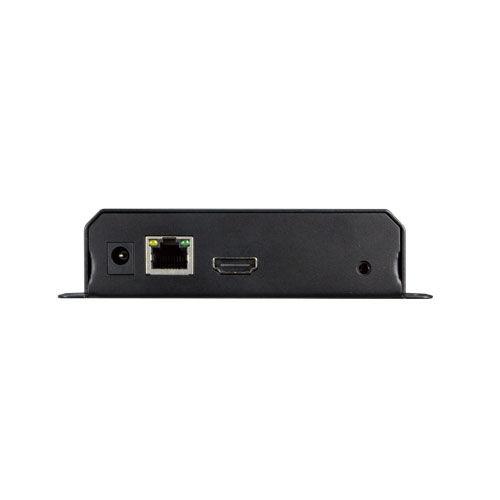

• Network: 1 x RJ45 10/100BASE-TX (PoE+ supported)
• Video Output: 1 x HDMI A Type (Full HD 1080p)
• IR Port: 1 x 3.5mm jack for IR receiver

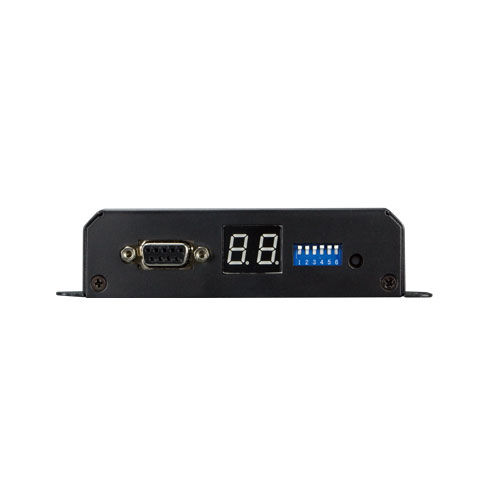

• RS232: 1 x DB-9 female connector
• Channel Selection: DIP switch (64 groups)
• LED Display: Numerical group ID indicator

Video and Audio:

• Output Resolutions: 1080p, 1080i, 720p, 480p, 480i @ 60/50/30/25 Hz
• Compression: H.264 for video, MPEG1 Layer II for audio
• Audio Output: 2-channel uncompressed audio
• EDID Support: Automatic display configuration
• HDMI Standard: HDMI 1.4a, HDCP compliant

System Management:

• Remote group/channel setup via search tool
• Supports up to 64 group pairings
• IGMP snooping required on managed switch for multicast

General:

• Power Supply: IEEE 802.3af/at PoE+ or 5V DC/2A
• Power Consumption: 7W (each unit)
• Dimensions: 130 x 82 x 30.25 mm
• Weight: 290g
• Max Distance: 100m via CAT5e/6 Ethernet cable

Environment:

• Operating Temp: 0–55 °C, Humidity: 5–90% (non-condensing)
• Storage Temp: -10–60 °C

Compliance:

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at, HDMI 1.4a
• Certifications: FCC, CE

Package Contents:

• 1x HDMI Extender Unit (Transmitter or Receiver)
• 1x IR Receiver Cable
• 1x Quick Installation Guide
